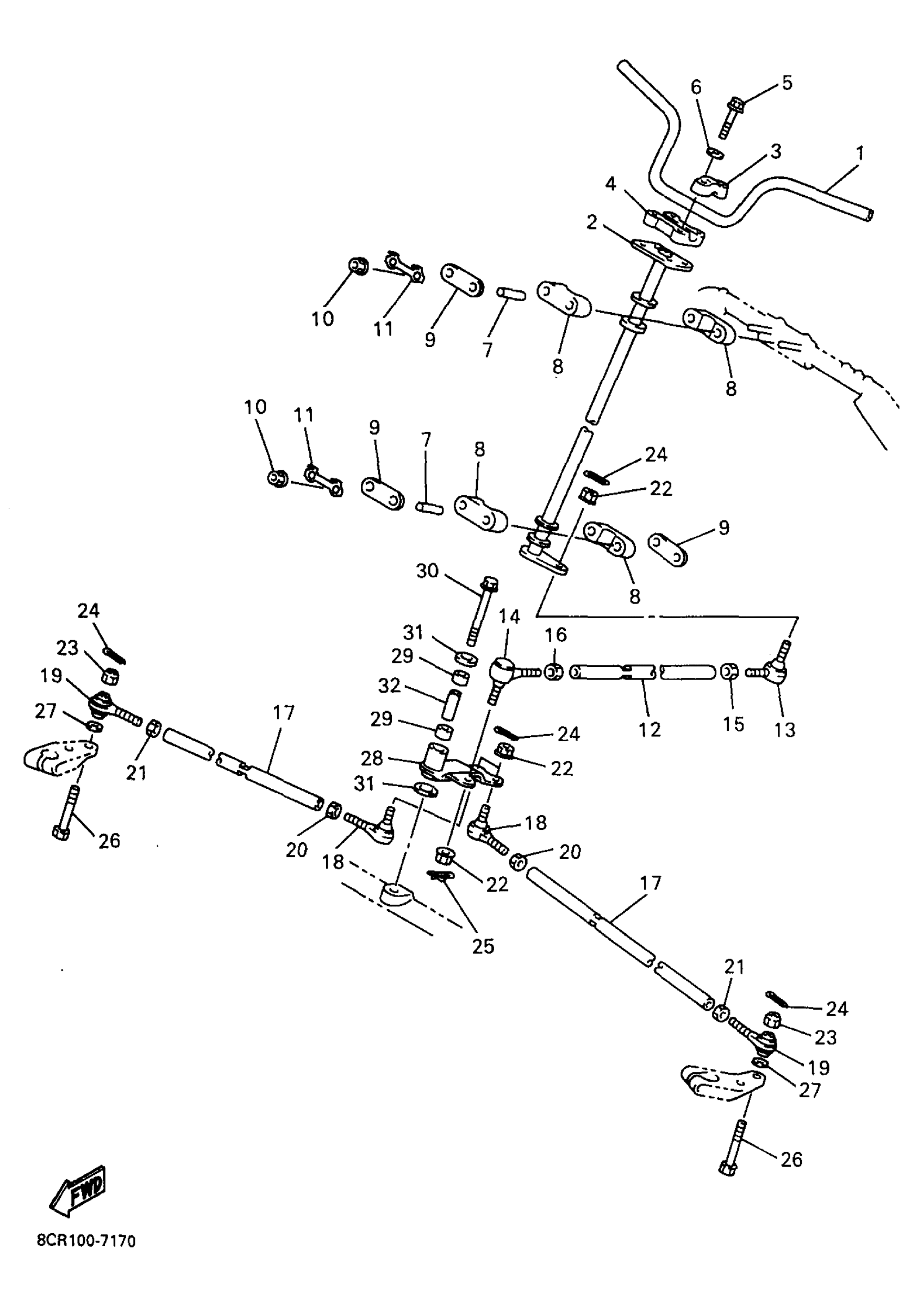

Yamaha VX600XTCEA (VMAX 600 XTC (ELEC START)) 8CX1 1997 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

8CR-23811-00-00

Unavailable

2

COLUMN, STEERING 2

8CR-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

HANDLE, HOLDER

164-23441-01-98

Unavailable

5

BOLT, HEXAGON

97017-08055-00

$9.49

6

WASHER(6TA)

92907-08600-00

$3.03

7

COLLAR(85G)

90387-106T4-00

$14.99

8

PLANE BEARING, STEERING

8DF-23812-00-00

$8.99

9

HOLDER, BEARING

8CR-23872-00-00

Unavailable

10

NUT, NYLON

95717-08300-00

$2.70

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

ROD, STEERING RELAY

8CR-23821-00-00

Unavailable

13

JOINT, UNIVERSAL 2

8CR-23845-10-00

$62.99

14

JOINT, UNIVERSAL 3

8CR-23847-00-00

$58.99

15

NUT (3WP1)

95317-10700-00

$8.49

16

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

17

ROD, TIE

8CR-23831-00-00

Unavailable

18

JOINT, UNIVERSAL 2

8CR-23845-10-00

$62.99

19

JOINT, UNIVERSAL 3

87S-23847-01-00

Unavailable

20

NUT (3WP1)

95317-10700-00

$8.49

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

23

NUT, NYLON

95707-10300-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

CLIP 136253750000

90468-12006-00

Unavailable

26

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable

27

WASHER PLATE (3L6)

90201-08759-00

Unavailable

28

ARM, IDLER

99999-03123-00

Unavailable

29

BUSH, BIMETAL FORMED

90384-20231-00

Unavailable

30

BOLT, WASHER BASED (26H)

90105-12252-00

Unavailable

31

WASHER, PLATE

90201-121U3-00

Unavailable

32

COLLAR

8CR-2412G-00-00

Unavailable
