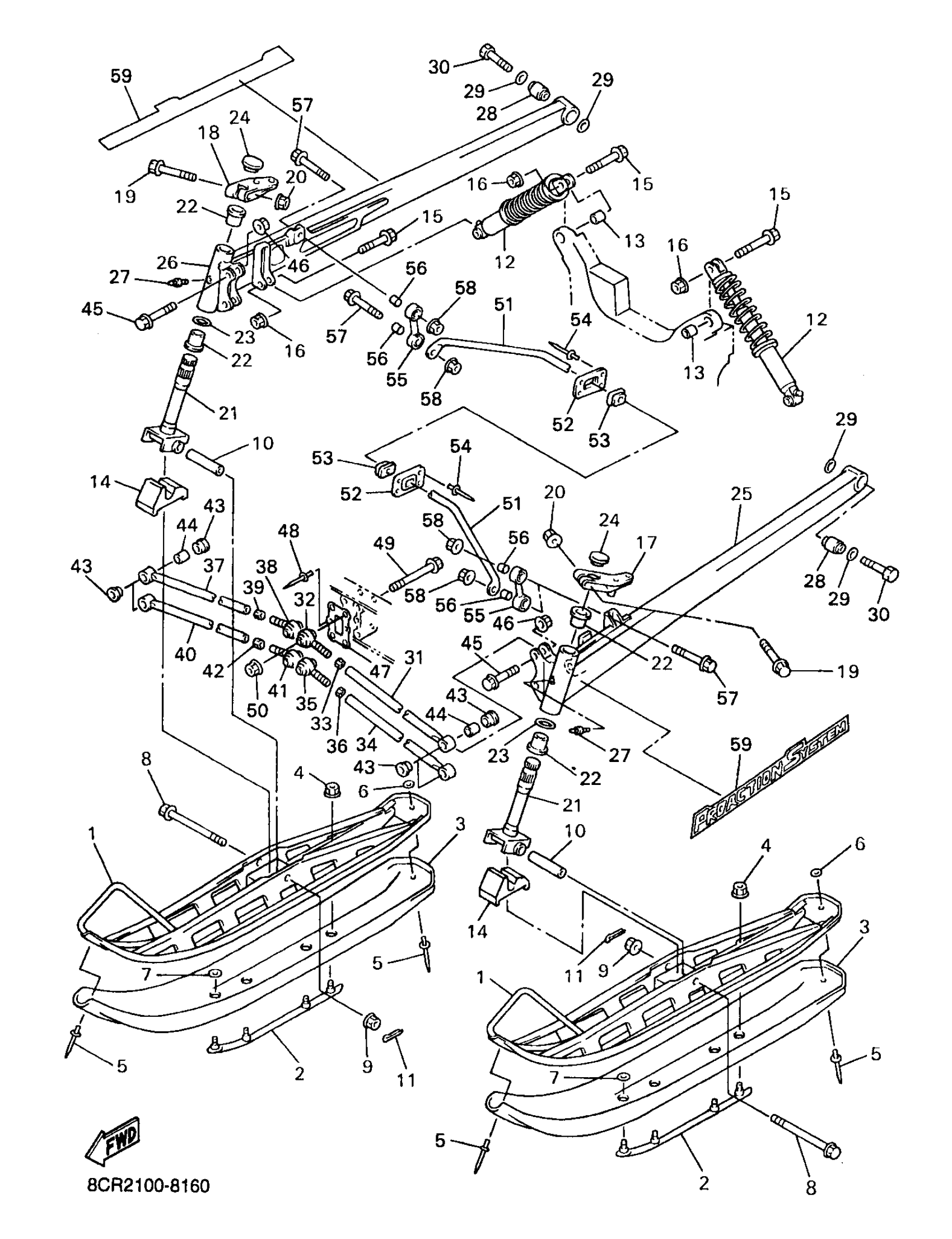

Yamaha VX600XTCDB (VMAX 600 XTC DELUXE (ELEC START)) 1998 SKI Diagram
#
1
SKI COMP. 1
8CV-23710-00-00
Unavailable
2
RUNNER 1
8CS-23731-00-00
Unavailable
3
RUNNER 2
8CV-23732-00-00
Unavailable
4
NUT, SELF-LOCKING
90185-08169-00
$8.49
5
RIVET, BLIND(8CP)
90267-48184-00
$5.60
6
WASHER, PLATE
90201-04027-00
$3.02
7
WASHER, PLATE
90201-08020-00
$7.49
8
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
9
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
10
COLLAR
90387-1012H-00
$24.99
11
PIN, COTTER
91490-20025-00
$1.99
12
ABSORBER ASSY 1
8CX-2376A-10-00
Unavailable
13
BUSH
8CR-2376B-00-00
Unavailable
14
STOPPER 1
8CR-23743-00-00
Unavailable
15
BOLT, FLANGE
90105-10030-00
$8.49
16
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
17
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
18
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
19
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
20
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
21
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
22
BUSH, SOLID
90381-25115-00
Unavailable
23
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
24
CAP 1
8CR-23741-00-00
Unavailable
25
ARM, FRONT 1
8CR-2382E-03-00
Unavailable
26
ARM, FRONT 2
8CR-2382F-03-00
Unavailable
27
NIPPLE, GREASE
93700-06M03-00
Unavailable
28
DAMPER
8CR-2516A-00-00
Unavailable
29
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
30
BOLT(8CJ)
90101-12046-00
Unavailable
31
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
32
JOINT 2
8DN-23823-00-00
Unavailable
33
NUT, HEXAGON
95337-12600-00
Unavailable
34
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
35
JOINT 3
8DN-23832-00-00
Unavailable
36
NUT
95314-14600-00
Unavailable
37
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
38
JOINT 2
8DN-23823-00-00
Unavailable
39
NUT, HEXAGON
95337-12600-00
Unavailable
40
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
41
JOINT 3
8DN-23832-00-00
Unavailable
42
NUT
95314-14600-00
Unavailable
43
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
44
COLLAR(8CJ)
90387-1009K-00
Unavailable
45
BOLT, FLANGE
90105-10030-00
$8.49
46
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
47
WASHER
8DF-23779-00-00
Unavailable
48
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
49
BOLT, FLANGE
90105-124A2-00
Unavailable
50
NUT, U FLANGE
95607-12200-00
Unavailable
51
BAR, STABILIZER FRONT
8CR-2386E-00-00
Unavailable
52
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
53
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
54
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
55
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
56
COLLAR(8V7)
90387-087L3-00
Unavailable
57
BOLT, FLANGE
95817-08040-00
Unavailable
58
NUT, SELF-LOCKING
90185-08169-00
$8.49
59
EMBLEM 15
8CR-77371-10-00
Unavailable
