Description

Price

1

SPEEDOMETER ASSEMBLY

8CX-83500-40-00

Unavailable

2

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

3

. TACHOMETER ASSEMBLY

8CX-83540-40-00

Unavailable

4

. COVER, METER

8CX-83559-40-00

Unavailable

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

Unavailable

6

KNOB, TRIP METER

29L-83578-00-00

Unavailable

7

SOCKET CORD ASSY

8CX-83509-40-00

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

10

BULB (6V 3W)

4N0-83516-00-00

$3.22

11

SCREW, PAN HEAD

98517-04012-00

$3.88

12

WASHER(6TA)

92907-04100-00

$8.49

13

WASHER(JF2)

92907-04600-00

$1.71

14

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

15

NUT(6TA)

95307-04600-00

$8.49

16

WASHER(6TA)

92907-04100-00

$8.49

17

WASHER(JF2)

92907-04600-00

$1.71

18

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

19

. PLUG, BLIND

4BE-8352K-00-00

Unavailable

20

TRIM 5

8CR-77225-00-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

NUT(6TA)

95317-06600-00

Unavailable

23

DAMPER

5J0-83513-00-00

Unavailable

24

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

Unavailable

25

METER GEAR HOUSING COMP.

8CR-47700-00-00

Unavailable

26

JOINT

8K4-47715-00-00

Unavailable

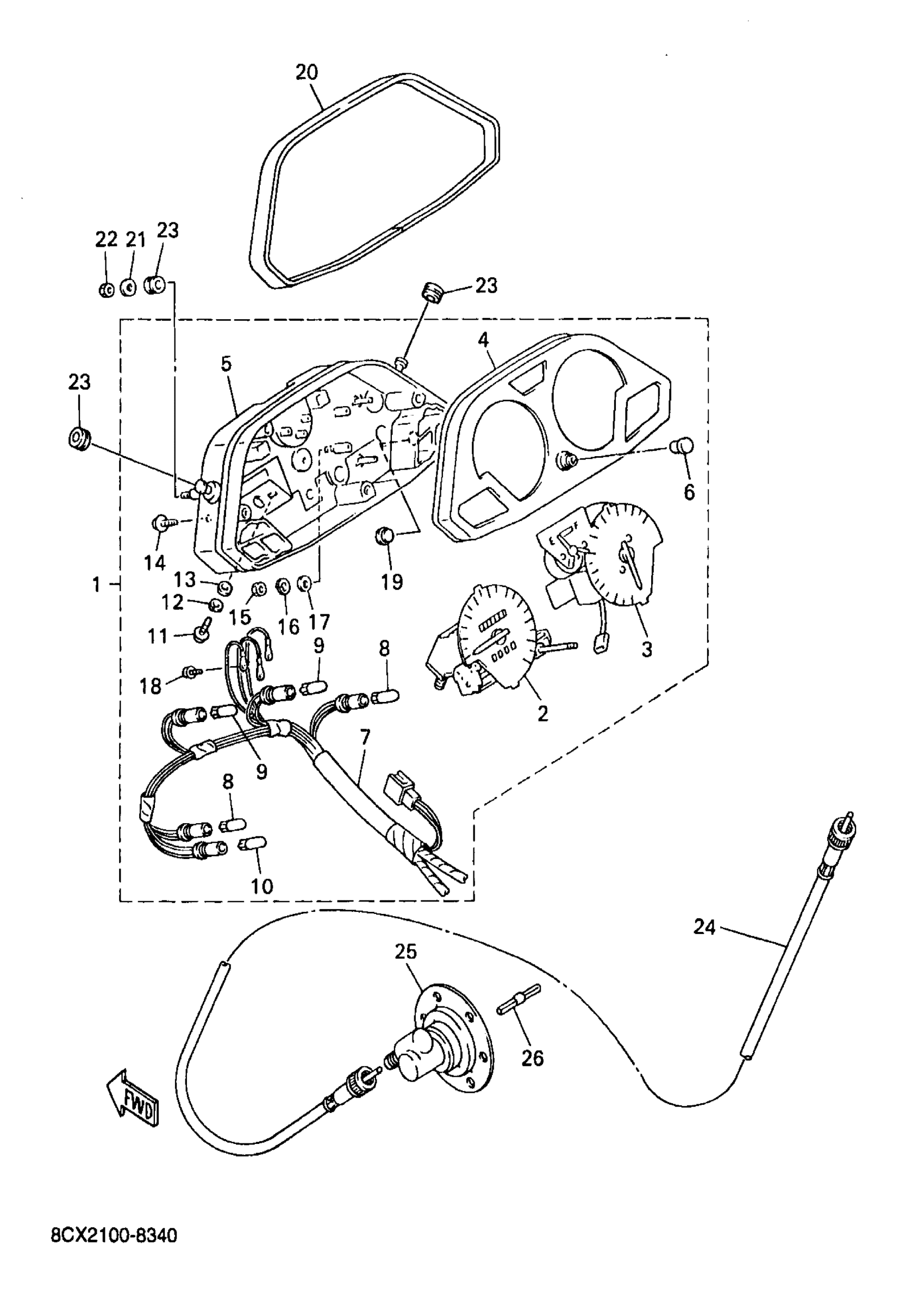

Yamaha VX600XTCDB (VMAX 600 XTC DELUXE (ELEC START)) 1998 METER Diagram

SPEEDOMETER ASSEMBLY

SPEEDOMETER ASSY

. TACHOMETER ASSEMBLY

. COVER, METER

. CASE, UNDER (8AS-8353H-20-00)

KNOB, TRIP METER

SOCKET CORD ASSY

BULB, MTR.12V3.4W

BULB (12V-1.7W)

BULB (6V 3W)

SCREW, PAN HEAD

WASHER(6TA)

WASHER(JF2)

SCREW, TRUSS TAP.

NUT(6TA)

WASHER(6TA)

WASHER(JF2)

SCREW, WITH WASHER(36Y)

. PLUG, BLIND

TRIM 5

WASHER, PLATE

NUT(6TA)

DAMPER

SPEEDOMETER CABLE ASSY

METER GEAR HOUSING COMP.

JOINT
