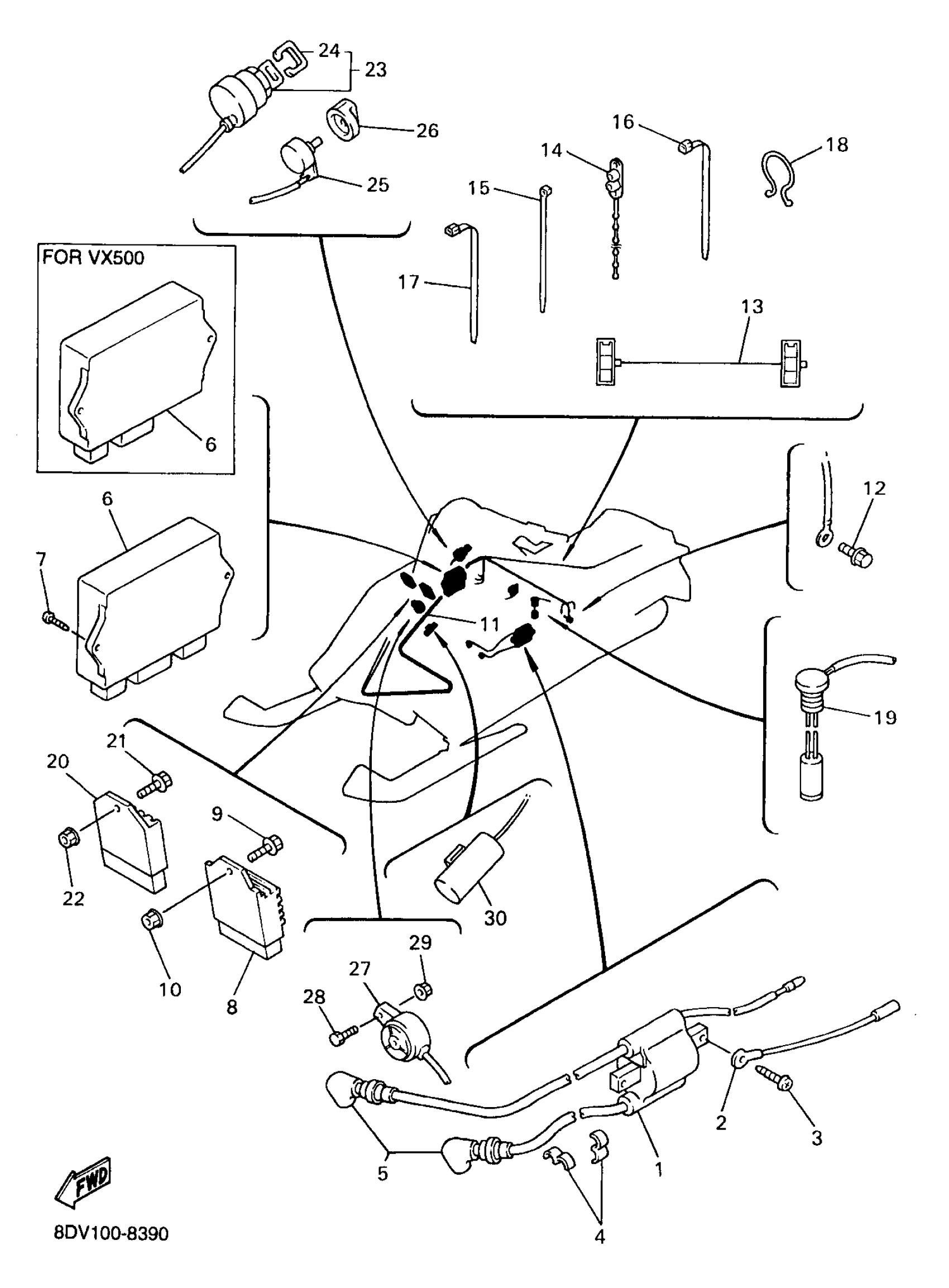

Yamaha VX600XTCDB (VMAX 600 XTC DELUXE (ELEC START)) 1998 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

CLAMP, CORD

861-82361-00-00

Unavailable

PLUG CAP ASSY

8DG-82370-00-00

$49.99

C.D.I. UNIT ASSY

8CJ-85540-01-00

Unavailable

C.D.I. UNIT ASSY

8CR-85540-10-00

Unavailable

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

BOLT, FLANGE

95817-06016-00

$2.75

NUT, FLANGE(4MV)

95707-06500-00

$1.23

WIRE HARNESS ASSEMBLY

8CU-82590-00-00

Unavailable

WIRE HARNESS ASSEMBLY

8CX-82590-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

$2.75

WIRE, LEAD

8CR-8471G-00-00

Unavailable

CLAMP

90464-20031-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP

90464-13077-00

Unavailable

CLAMP

90464-25267-00

Unavailable

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

$2.75

NUT, FLANGE(4MV)

95707-06500-00

$1.23

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

CAP, KEY

526-82579-00-00

Unavailable

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

BUZZER

8CW-83383-00-00

Unavailable

BOLT(3JK)

97027-05020-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable
