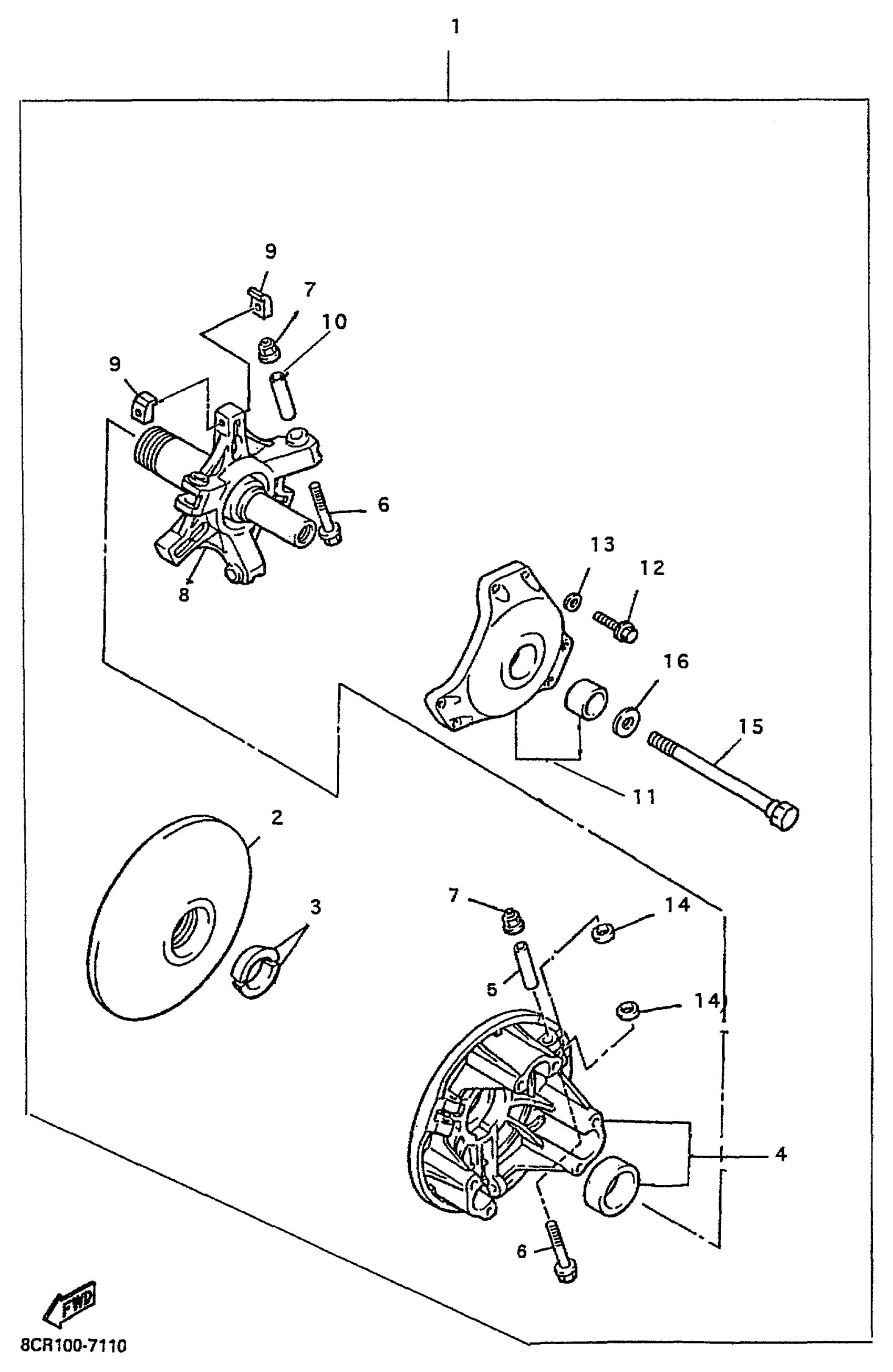

Yamaha VX600XTCDB (VMAX 600 XTC DELUXE (ELEC START)) 1998 ALTERNATE CLUTCH ASSY KIT B Diagram

#

Description
Price

1

CLUTCH ASSY

8CR-17601-19-00

Unavailable

2

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$212.99

3

STOPPER

8V0-17639-00-00

$14.99

4

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$437.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

7

WASHER, PLATE(8BV)

90202-09227-00

$10.49

7

NUT, S/L FLANGE

95607-05200-00

$9.49

8

SPIDER COMP.

8CA-17640-12-00

Unavailable

9

SLIDER

8BW-17653-00-00

$16.49

10

COLLAR

90387-0514U-00

$20.99

11

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

Unavailable

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER(6TA)

92907-06600-00

$2.72

14

WASHER, PLATE(88R)

90202-08204-00

$9.49

15

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

16

WASHER(JN5)

92907-16100-00

Unavailable
