1998 Yamaha Vmax 600 XTC (VX600XTCB) Track Drive 1 Diagram

← All diagrams

Find the part on the Track Drive 1 diagram for your 1998 Yamaha Vmax 600 XTC (VX600XTCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

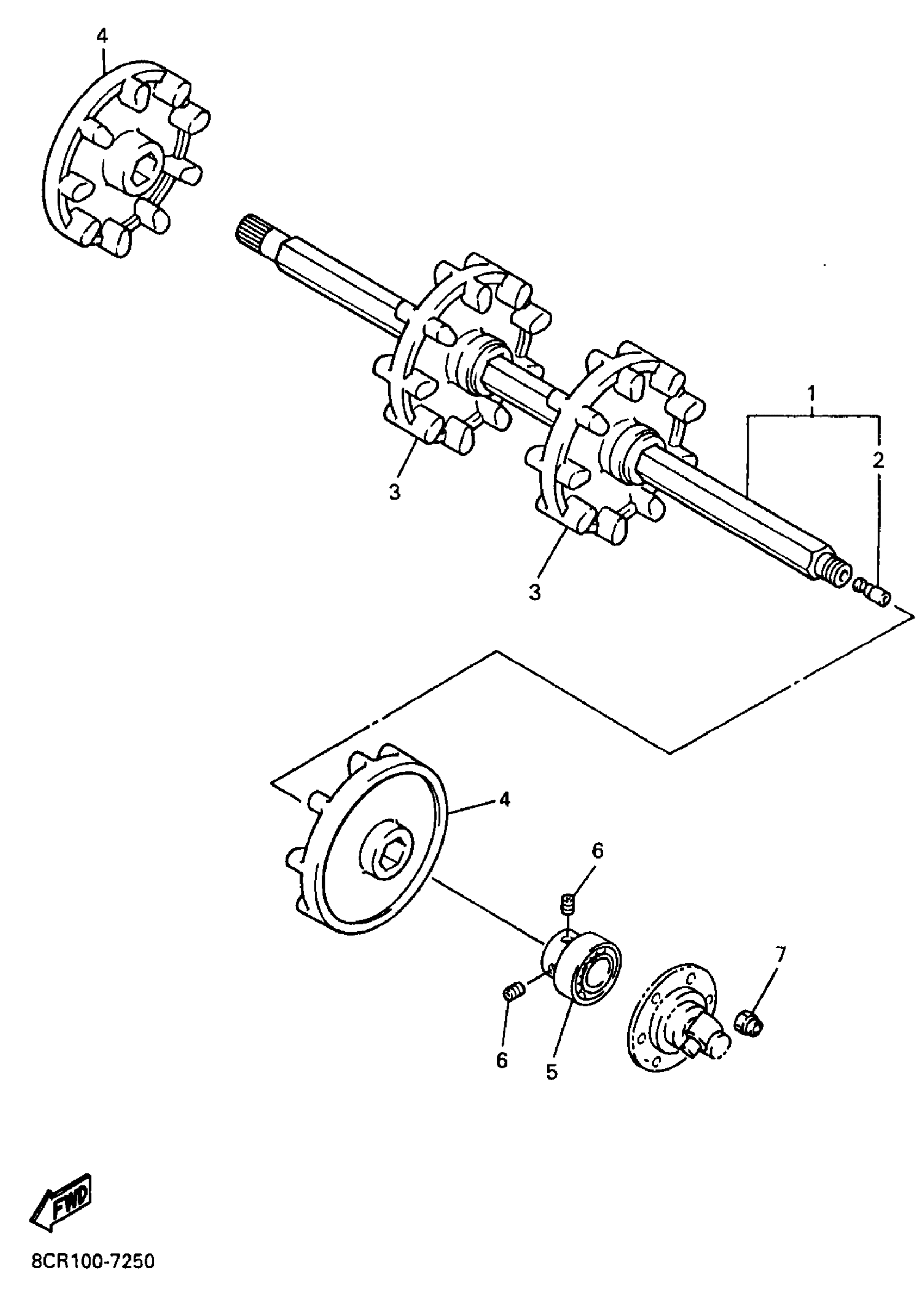

1998 Yamaha Vmax 600 XTC (VX600XTCB) Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8CR-W4751-01-00

—
Out of stock

2

CONNECTOR

8K4-47577-00-00

1
Out of stock

3

WHEEL, SPROCKET 1

8CM-47531-10-00

1
Out of stock

4

WHEEL, SPROCKET 2

8BW-47532-10-00

1
Out of stock

5

BEARING(8CJ)

93306-20589-00

1
Out of stock

6

BOLT, SET

90113-06006-00

1
Out of stock

7

NUT, NYLON

95717-08300-00

1
Out of stock
← Secondary Sheave Track Drive 2 →
