1998 Yamaha Vmax 600 XTC (VX600XTCB) Shroud Diagram

← All diagrams

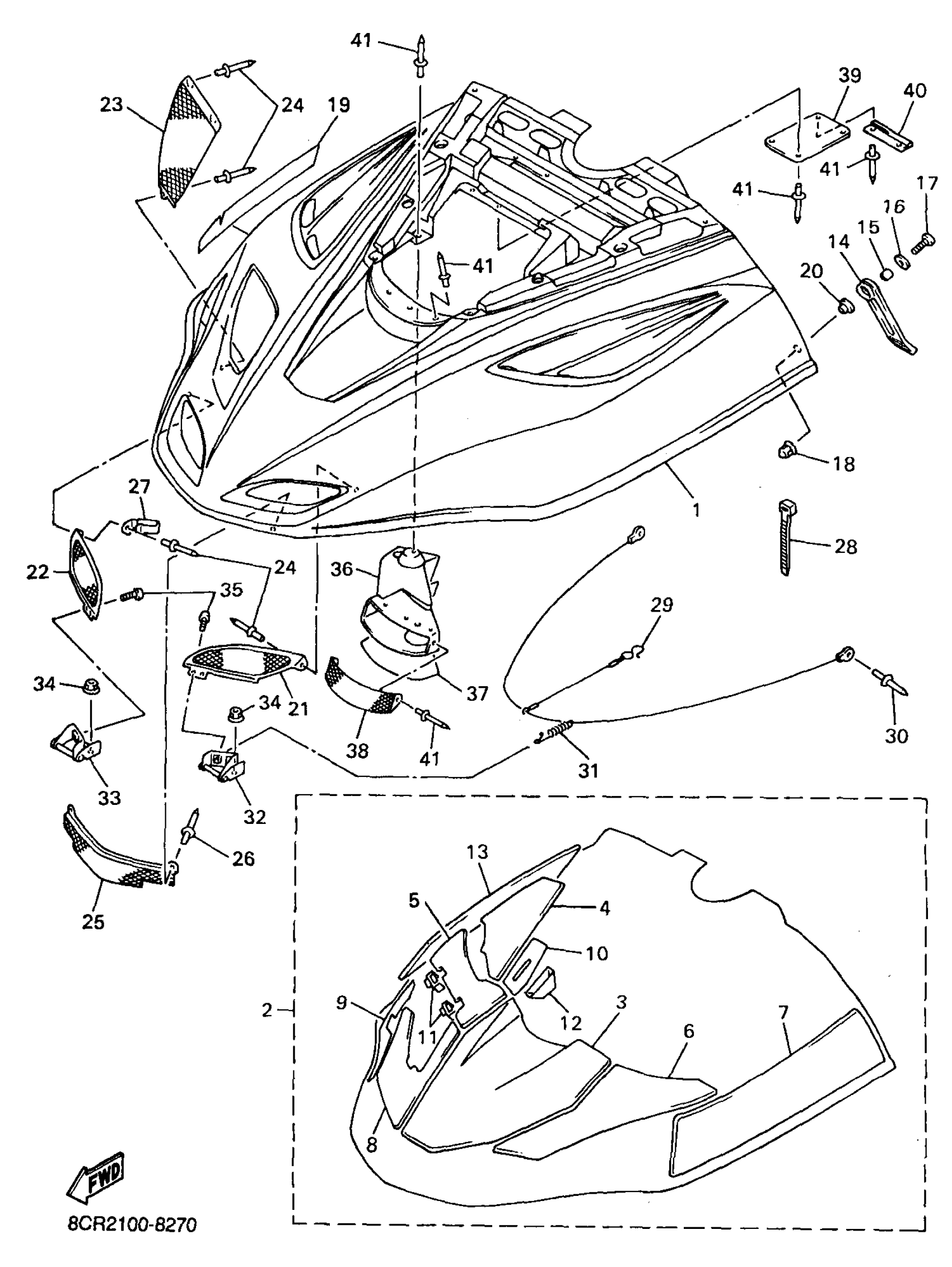

Find the part on the Shroud diagram for your 1998 Yamaha Vmax 600 XTC (VX600XTCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Vmax 600 XTC (VX600XTCB) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8CR-77111-01-00

1
Out of stock

2

LINING SET

8CR-W7726-00-00

1
Out of stock

3

DAMPER, NOISE 12

8CR-77272-00-00

—

$40.46

In stock

4

. DAMPER, NOISE 13

8CR-77273-00-00

1
Out of stock

5

. DAMPER, NOISE 14

8CR-77274-00-00

1
Out of stock

6

DAMPER, NOISE 15

8CR-77275-00-00

—

$24.43

In stock

7

DAMPER, NOISE 16

8CR-77276-00-00

—

$14.71

In stock

8

. DAMPER, NOISE 18

8CR-77278-00-00

1
Out of stock

9

. TAPE 1

8CR-7717E-00-00

1
Out of stock

10

. TAPE 2

8CR-7717F-00-00

1
Out of stock

11

. TAPE 3

8CR-7717G-00-00

1
Out of stock

12

. TAPE 4

8CR-7717H-00-00

1
Out of stock

13

. SHIELD, HEAT

8CR-2199H-00-00

1
Out of stock

14

BODY, LATCH 1

8V0-77171-00-00

1

$18.37

In stock

15

COLLAR (420)

90387-06241-00

1

$6.18

In stock

16

WASHER, PLATE

90201-06557-00

—

$2.75

In stock

17

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

18

NUT, CROWN(1FN)

90176-06055-00

—

$3.89

In stock

19

TAPE, 5

8CS-7717J-00-00

1
Out of stock

20

C0LLAR

90387-062M9-00

—
Out of stock

21

LOUVER 1

8CR-77131-00-00

—
Out of stock

22

LOUVER 2

8CR-77132-00-00

—
Out of stock

23

LOUVER 3

8CR-77133-00-00

1
Out of stock

24

RIVET, BLIND(8CJ)

90267-48182-00

—

$1.78

In stock

25

LOUVER 4

8CR-77134-00-00

—
Out of stock

26

RIVET, BLIND (8L0)

90267-48059-00

—

$2.46

In stock

27

CLAMP(51Y)

90465-08277-00

—
Out of stock

28

CLAMP

90464-13077-00

—

$6.68

In stock

29

STOPPER, SHROUD

8CR-77118-00-00

1
Out of stock

30

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

31

CLAMP, ROD

89A-77159-00-00

—

$9.75

In stock

32

HINGE ASSY

8CR-77140-00-00

1
Out of stock

33

HINGE ASSY 2

8CR-7714A-00-00

—

$21.11

In stock

34

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

35

SCREW, BINDING

98907-06014-00

—

$5.60

In stock

36

DUCT

8CR-77194-00-00

—

$49.51

In stock

37

DAMPER, NOISE 17

8CR-77277-00-00

—

$18.54

In stock

38

LOUVER 5

8CR-77109-00-00

1
Out of stock

39

PLATE 1

8CR-77185-00-00

1
Out of stock

40

TRIM 2

8CR-2196U-00-00

1
Out of stock

41

RIVET, BLIND(8CJ)

90267-48182-00

—

$1.78

In stock
