1998 Yamaha Vmax 600 XTC (VX600XTCB) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1998 Yamaha Vmax 600 XTC (VX600XTCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

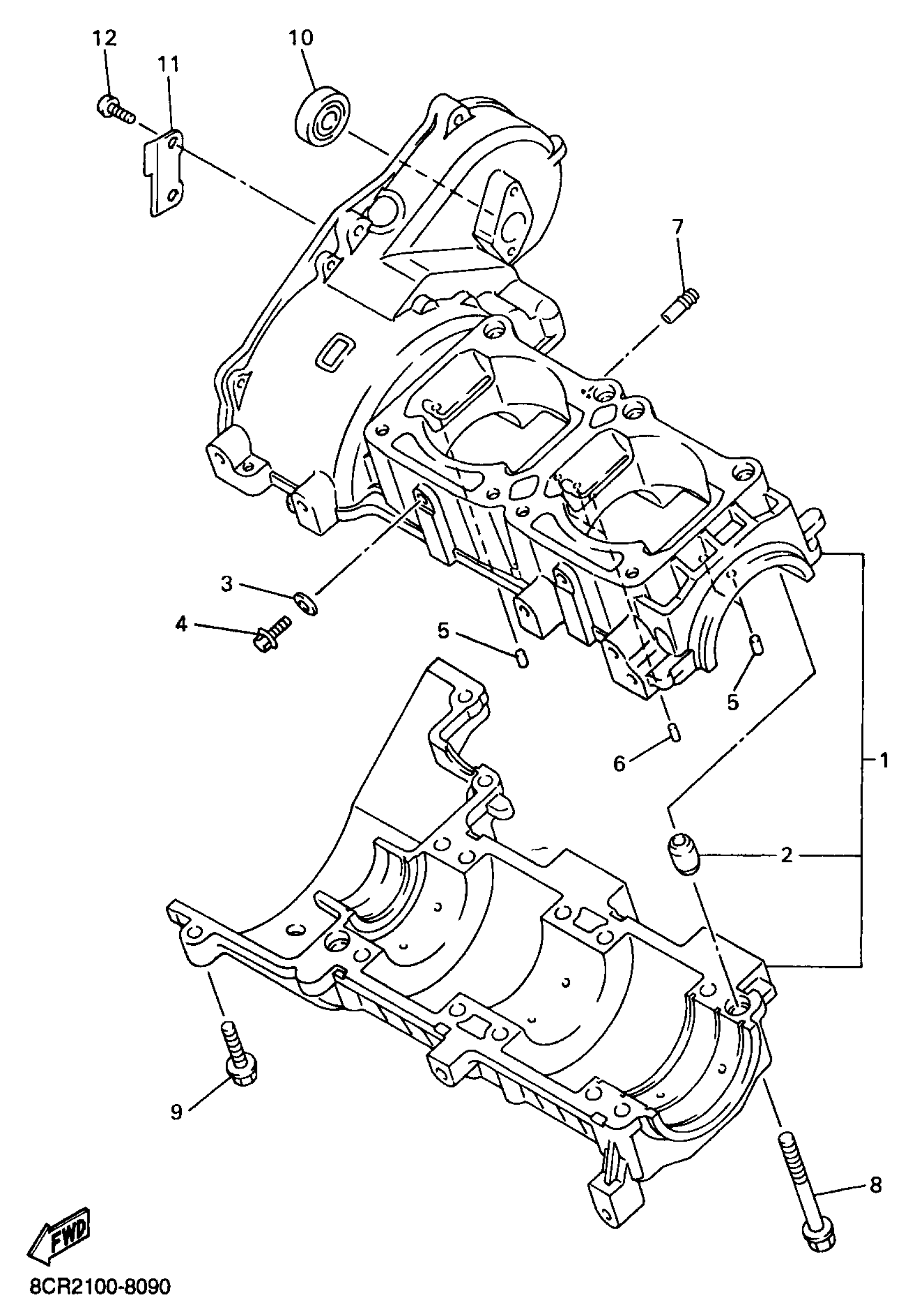

1998 Yamaha Vmax 600 XTC (VX600XTCB) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8CR-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

WASHER, PLATE 3411117500

90201-08087-00

1

$3.13

In stock

4

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

5

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

6

PIN (2H7)

93603-10049-00

—
Out of stock

7

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

8

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

9

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

10

BEARING(82M)

93306-20117-00

1
Out of stock

11

CLAMP

90461-12145-00

—
Out of stock

12

SCREW, PAN

98517-06012-00

1

$3.14

In stock
