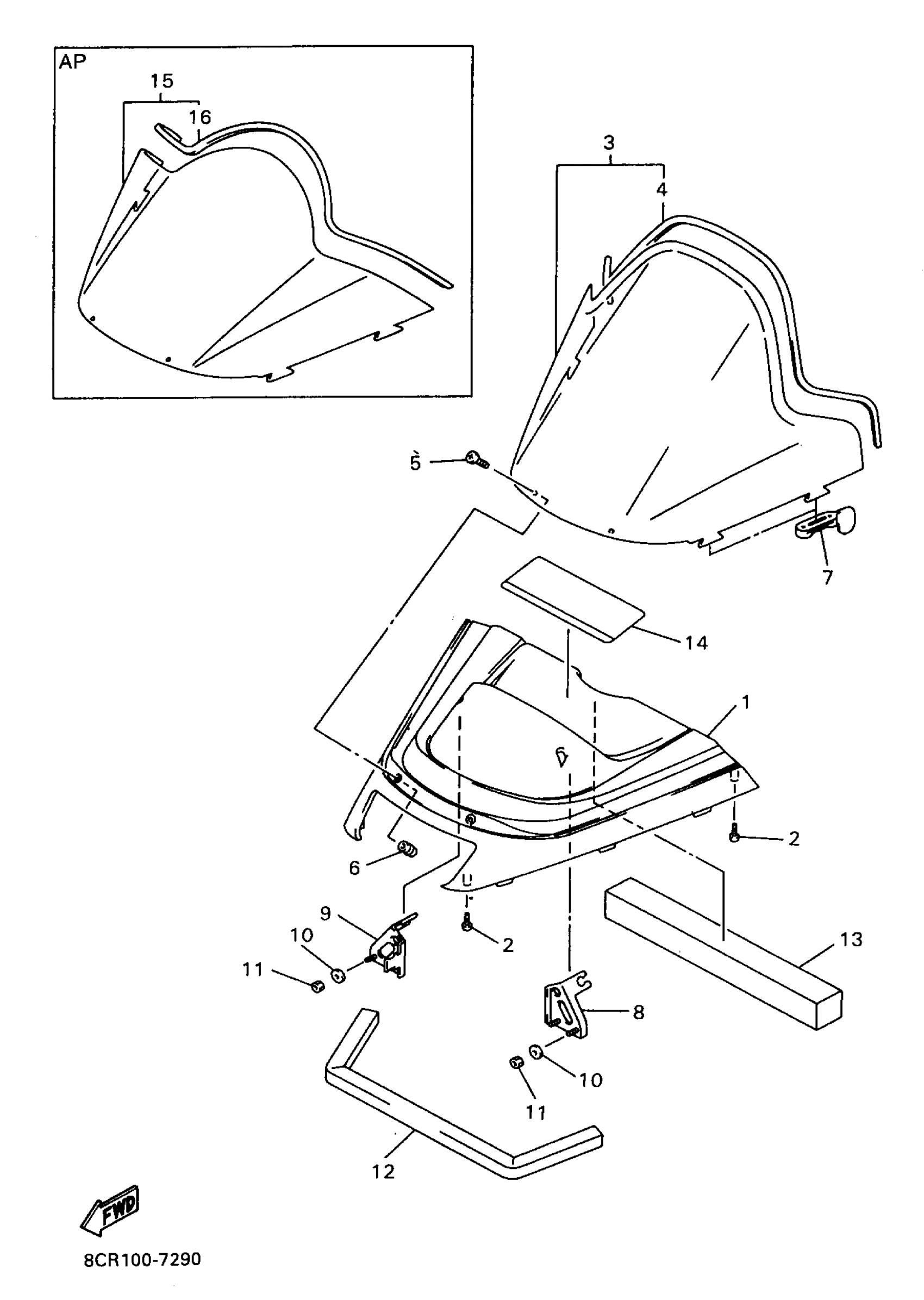

Find the part on the Windshield diagram for your 1997 Yamaha Vmax 600 XTC (VX600XTCA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Vmax 600 XTC (VX600XTCA) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8CR-77251-01-00

1

$219.77

In stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

WINDSHIELD, VMAX

8CR-77210-00-XX

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

FASTNER

82H-77223-00-00

1

$7.63

In stock

8

STAY 1

8CR-77125-00-00

—

$11.91

In stock

9

STAY 2

8CR-77126-00-00

—

$16.85

In stock

10

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

11

NUT(6TA)

95317-06600-00

1

$2.69

In stock

12

DAMPER, NOISE 19

8CR-77279-00-00

1
Out of stock

13

SHIELD, NOISE 2

8CR-2199J-00-00

1

$30.09

In stock

14

LABEL, WARNING 1

8CR-77761-00-00

1
Out of stock

15

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

1
Out of stock

16

TRIM,UPPER

87K-77213-00-00

1
Out of stock
