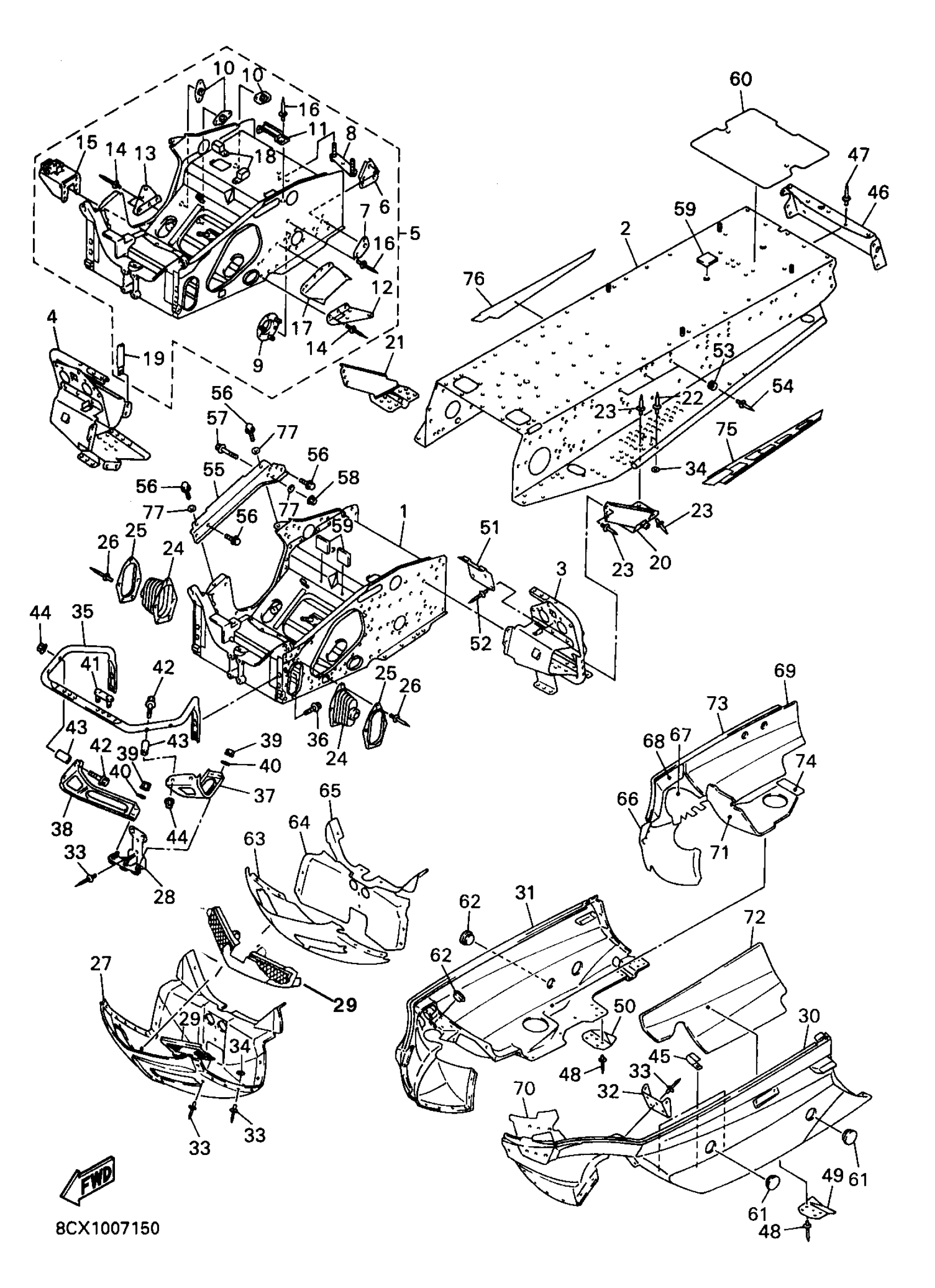

1997 Yamaha Vmax 600 XTC (VX600XTCA) Frame Diagram
Find the part on the Frame diagram for your 1997 Yamaha Vmax 600 XTC (VX600XTCA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
REAR FRAME COMP.
8CR-21950-06-00
3
FOOTREST COMP. 1
8CR-21960-08-00
4
FOOTREST COMP. 2
8CR-21970-08-00
5
FRAME CONNECTION KIT (8CR-W2195-01-00)
8CR-W2195-00-00
9
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
18
CLAMP(8CR)
90461-06142-00
20
PIPE, PIVOT 1
8DF-21941-00-00
24
COVER 1
8CR-2198F-00-00
25
PLATE, STRG BRACKET 1
8CR-2195E-00-00
27
PANEL, SUB FRAME 1
8CR-21912-01-00
28
PLATE, BACK UP
99999-03119-00
29
STAY 4
8CR-77128-00-00
30
FRAME UNDER 1
8CR-2196A-03-00
31
FRAME, UNDER 2
8CR-2196E-03-00
32
BRACKET, GUARD FITTING
8CR-21972-00-00
34
WASHER PLATE 829771780000
90201-05033-00
38
BRACKET, FRONT BUMPER
8CR-21959-10-00
40
WASHER, PLATE(52G)
90201-064J1-00
43
COLLAR(8CR)
90387-0810F-00
46
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
51
HOOK
8CR-21973-00-00
53
BUTT0N
81K-2471F-00-00
54
RIVET, BLIND(81K)
90267-40135-00
55
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
60
SEAL
8CR-2475M-00-00
63
LINING, SHROUD 1
8CR-77261-00-00
65
LINING, SHROUD 3
8CR-77263-00-00
67
LINING, SHROUD 5
8CR-77265-00-00
68
LINING, SHROUD 6
8CR-77266-00-00
71
LINING, SHROUD 9
8CR-77269-00-00
72
DAMPER, NOISE 11
8CR-77271-00-00
73
TAPE, 5
8CR-7717J-00-00
75
EMBLEM 1
8CX-77351-01-00
75
EMBLEM 1
8CX-77351-11-00
76
EMBLEM 2
8CX-77352-01-00
76
EMBLEM 2
8CX-77352-11-00
77
WASHER, PLAIN(3BM)
92907-10200-00
