- VX600XTCA (VMAX 600 XTC) 8CX1 1997
TRACK DRIVE 2

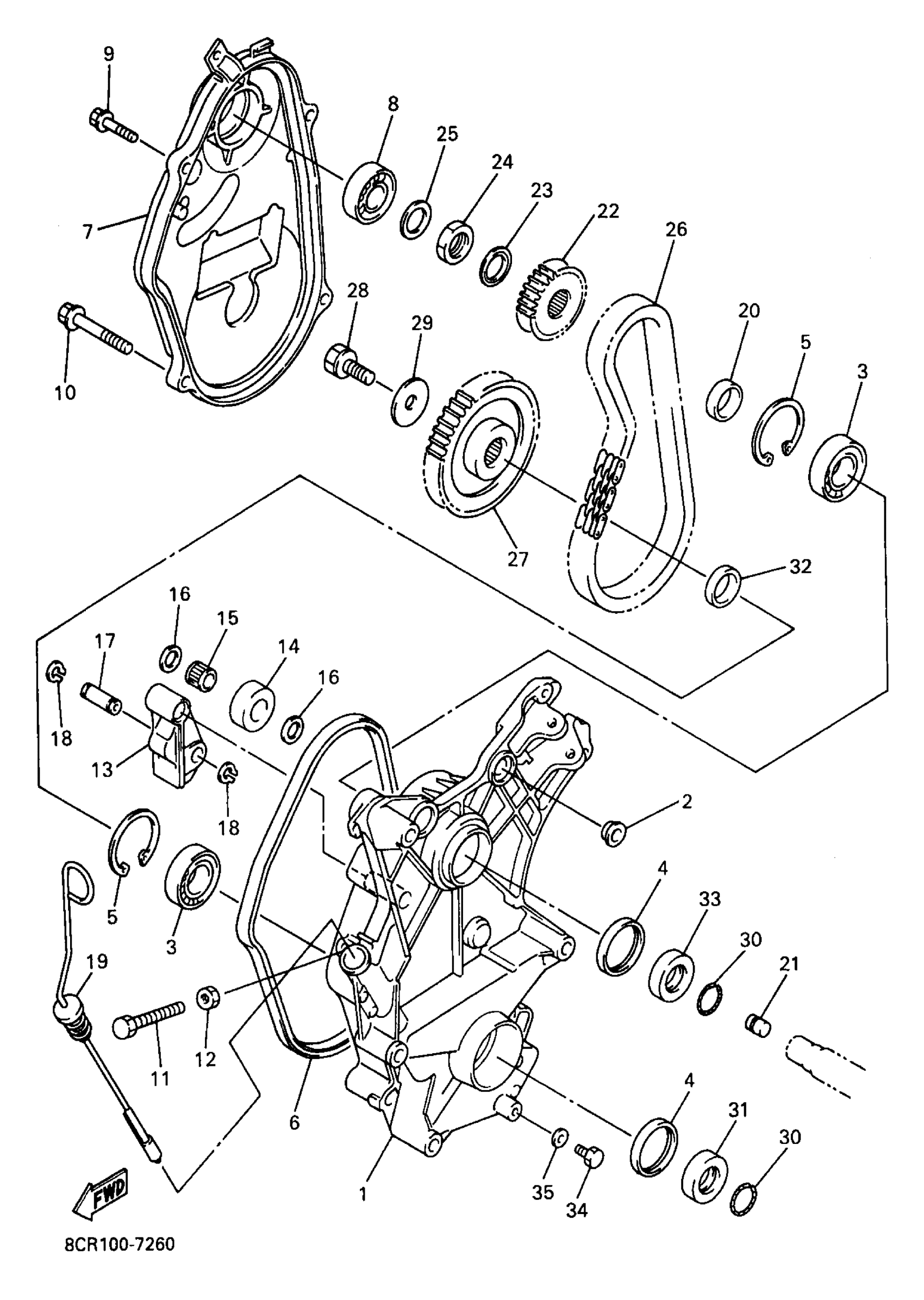

Yamaha VX600XTCA (VMAX 600 XTC) 8CX1 1997 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8CR-47541-01-00
$393.99
2
NUT(8CJ)
90179-10679-00
Unavailable
3
BEARING (80N)
93306-20570-00
Unavailable
4
OIL SEAL (36R)
93102-35318-00
$25.99
5
CIRCLIP(26H)
99009-52500-00
$12.49
6
RING, HOUSING/GASKET
8CR-47558-02-00
$16.49
7
CAP, HOUSING
8CR-47543-01-00
Unavailable
8
BEARING(4ED)
93306-20468-00
$43.99
9
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
10
BOLT, FLANGE
95817-10060-00
$7.49
11
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
12
NUT(6TD)
95337-10600-00
$9.49
13
HOLDER
8CR-47613-00-00
Unavailable
14
WHEEL
8CR-47612-00-00
Unavailable
15
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
16
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
17
PIN(8CJ)
90249-12227-00
Unavailable
18
CIRCLIP(10Y)
99009-12400-00
Unavailable
19
LEVEL, OIL
8CR-47546-00-00
Unavailable
20
COLLAR
90387-2508D-00
Unavailable
21
PLUG, OIL
82M-17699-00-00
Unavailable
22
SPROCKET, CHAIN DRIVE (20T)
89J-17682-00-00
Unavailable
22
SPROCKET, CHAIN DRIVE (21T)
89J-17682-10-00
Unavailable
22
SPROCKET, CHAIN DRIVE
89J-17682-20-00
Unavailable
22
SPROCKET, CHAIN DRIVE
89J-17682-30-00
Unavailable
22
SPROCKET, CHAIN DRIVE (19T)
89J-17682-91-00
Unavailable
23
WASHER 810475810000
90208-22001-00
Unavailable
24
NUT (821-47579-00)
90170-22094-00
Unavailable
25
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
26
CHAIN (68L)
94860-02068-00
Unavailable
26
CHAIN (70L)
94860-02070-00
Unavailable
27
SPROCKET, CHAIN DRIVEN (40T)
89J-47587-00-00
Unavailable
27
SPROCKET, CHAIN DRIVEN (39T)
89J-47587-90-00
Unavailable
28
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
29
WASHER, PLATE (856)
90201-10321-00
Unavailable
30
O-RING (169)
93210-25071-00
Unavailable
31
COLLAR(8CJ)
90387-2508C-00
Unavailable
32
COLLAR
90387-2508B-00
Unavailable
33
COLLAR
90387-2511J-00
Unavailable
34
BOLT(8BC)
97007-08014-00
Unavailable
35
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
