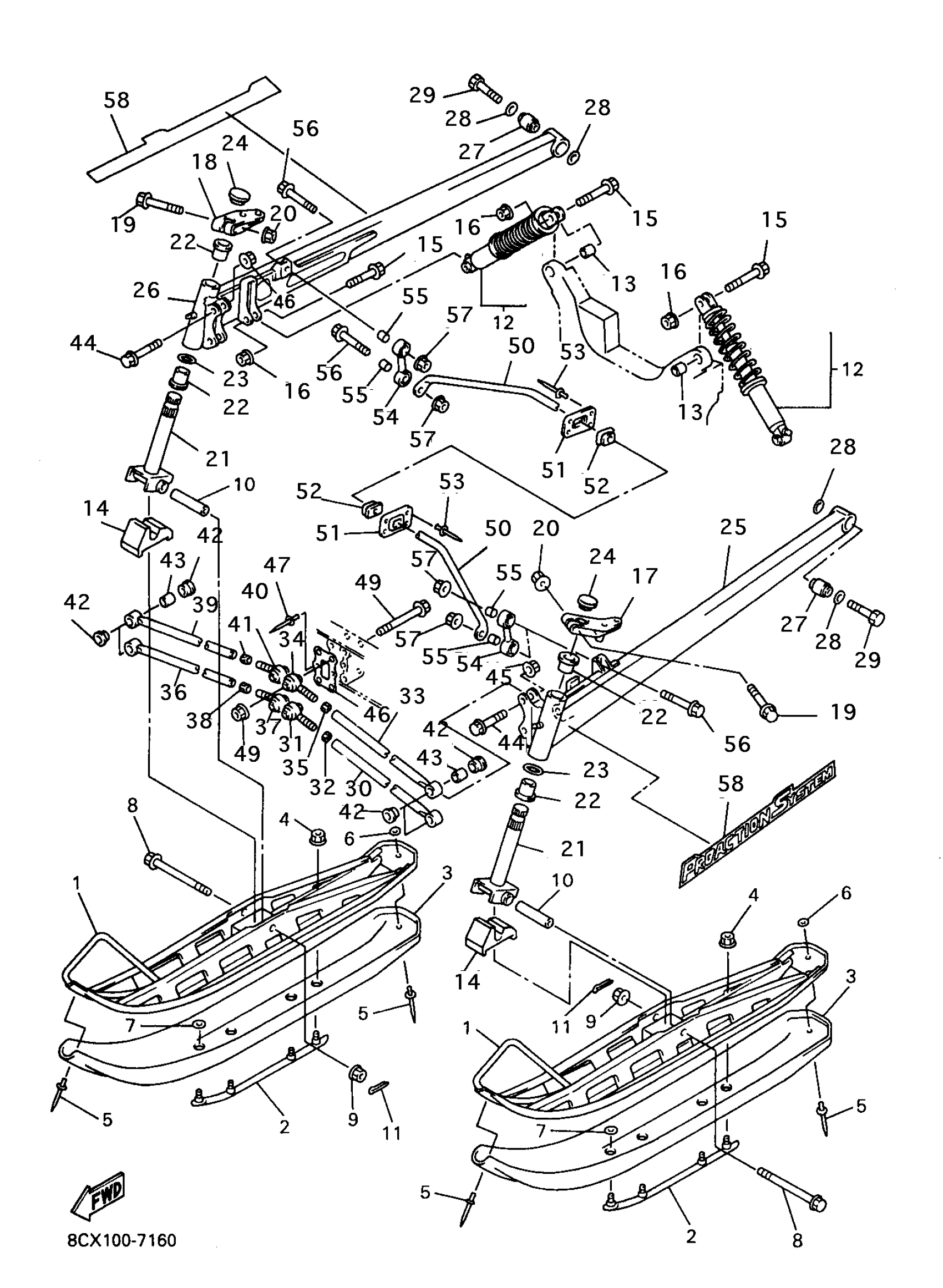

Yamaha VX600XTCA (VMAX 600 XTC) 8CX1 1997 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8CV-23710-00-00

Unavailable

2

RUNNER 1

8CS-23731-00-00

Unavailable

3

RUNNER 2

8CV-23732-11-RD

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

RIVET, BLIND(8CP)

90267-48184-00

$5.60

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

Unavailable

7

WASHER, PLATE

90201-08020-00

$7.49

8

BOLT, WASHER BASED(83M)

90105-10438-00

Unavailable

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

10

COLLAR

90387-1012H-00

$24.99

11

PIN, COTTER

91490-20025-00

$1.99

12

ABSORBER ASSY 1

8CX-2376A-10-00

Unavailable

13

BUSH

8CR-2376B-00-00

Unavailable

14

STOPPER 1

8CR-23743-00-00

Unavailable

15

BOLT, FLANGE

90105-10030-00

$8.49

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

ARM, OUTSIDE 1

8CR-23851-00-00

Unavailable

18

ARM, OUTSIDE 2

8CR-23852-00-00

Unavailable

19

BOLT, FLANGE(87Y)

95817-10055-00

Unavailable

20

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

21

COLUMN, SKI ASSY

8CR-23803-01-00

Unavailable

22

BUSH, SOLID

90381-25115-00

Unavailable

23

WASHER, PLATE (25G)

90201-301G3-00

Unavailable

24

CAP 1

8CR-23741-00-00

Unavailable

25

ARM, FRONT 1

8CR-2382E-03-00

Unavailable

26

ARM, FRONT 2

8CR-2382F-03-00

Unavailable

27

DAMPER

8CR-2516A-00-00

Unavailable

28

WASHER, PLATE(8CJ)

90201-120T5-00

Unavailable

29

BOLT(8CJ)

90101-12046-00

Unavailable

30

ARM, CONTROL 1

8CR-2384E-02-00

Unavailable

31

JOINT 2

8DN-23823-00-00

Unavailable

32

NUT, HEXAGON

95337-12600-00

Unavailable

33

ARM, CONTROL 2

99999-03004-00

Unavailable

34

JOINT 2

8DN-23823-00-00

Unavailable

35

NUT, HEXAGON

95337-12600-00

Unavailable

36

ARM, CONTROL 1

8CR-2384E-02-00

Unavailable

37

JOINT 2

8DN-23823-00-00

Unavailable

38

NUT, HEXAGON

95337-12600-00

Unavailable

39

ARM, CONTROL 2

99999-03004-00

Unavailable

40

JOINT 2

8DN-23823-00-00

Unavailable

41

NUT, HEXAGON

95337-12600-00

Unavailable

42

BUSH, SOLID(8CJ)

90381-17110-00

Unavailable

43

COLLAR(8CJ)

90387-1009K-00

Unavailable

44

BOLT, FLANGE

90105-10030-00

$8.49

45

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

46

WASHER

8DF-23779-00-00

Unavailable

47

RIVET, BLIND (8J5)

90267-48057-00

Unavailable

48

BOLT, FLANGE

90105-124A2-00

Unavailable

49

NUT, U FLANGE

95607-12200-00

Unavailable

50

BAR, STABILIZER FRONT

8CR-2386E-00-00

Unavailable

51

COVER, STABILIZER FRONT

8CR-2386H-00-00

Unavailable

52

BUSH, STABILIZER FRONT

8CR-2386G-00-00

Unavailable

53

RIVET, BLIND(8CR)

90267-47186-00

Unavailable

54

JOINT, STABILIZER 1

8CR-2385L-00-00

Unavailable

55

COLLAR(8V7)

90387-087L3-00

Unavailable

56

BOLT, FLANGE

95817-08040-00

Unavailable

57

NUT, SELF-LOCKING

90185-08169-00

$8.49

58

EMBLEM 15

8CR-77371-00-00

Unavailable
