- VX600XTCA (VMAX 600 XTC) 8CX1 1997
SECONDARY SHEAVE

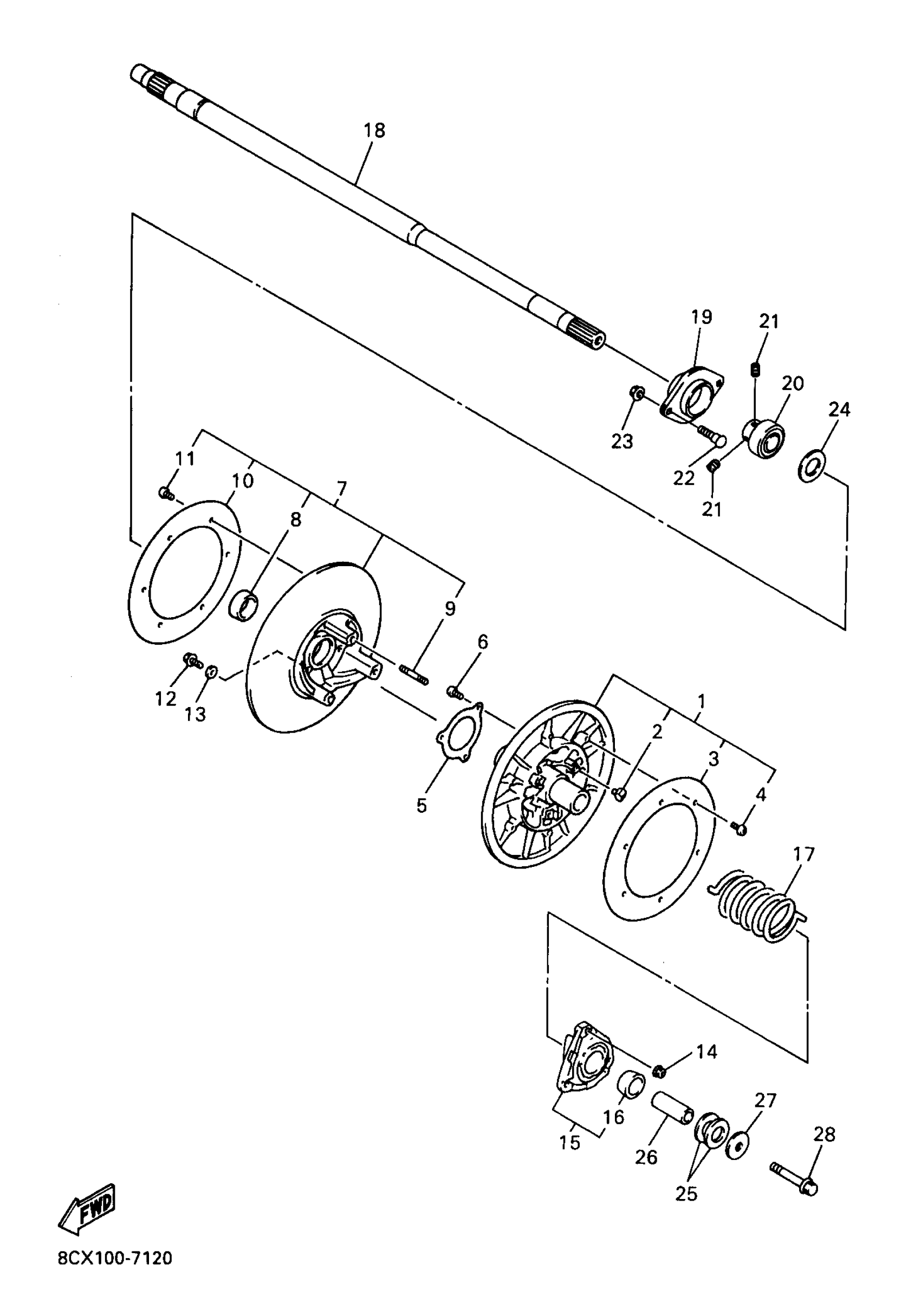

Yamaha VX600XTCA (VMAX 600 XTC) 8CX1 1997 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
8CR-17660-10-00
Unavailable
1
SECONDARY FIXED SHEAVE COMP.
8CR-17660-20-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
PLATE 1
8CM-17665-00-00
Unavailable
4
GASKET, EXHAUST
98507-05008-00
$3.55
5
STOPPER, HOLDER
8BV-17656-00-00
$22.99
6
SCREW, BINDING
98907-06016-00
$9.49
7
SECONDARY SLIDING SHEAVE
8BU-17670-10-00
Unavailable
7
SECONDARY SLIDING SHEAVE
8BU-17670-20-00
Unavailable
8
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
9
BOLT, STUD 3
95617-08630-00
$4.99
10
PLATE 2
8CM-17675-00-00
Unavailable
11
GASKET, EXHAUST
98507-05008-00
$3.55
12
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
13
WASHER, PLATE (22K)
90201-061H1-00
$4.72
13
WASHER, PLATE (371)
90201-06431-00
Unavailable
14
NUT(8BN)
90179-08655-00
Unavailable
15
SEAT SPRING SET
8BV-17604-50-00
Unavailable
15
SEAT SPRING SET
8BV-17604-71-00
Unavailable
16
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
17
SPRING, TORSION(8AB)
90508-536A9-00
Unavailable
18
SHAFT, SECONDARY
8CR-17681-10-00
Unavailable
19
HOUSING, BEARING
8CR-47631-01-00
Unavailable
20
BEARING(8CJ)
93399-99943-00
Unavailable
21
BOLT, SET
90113-06006-00
Unavailable
22
BOLT(8CJ)
90109-083G2-00
Unavailable
23
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
24
WASHER, PLATE (888)
90201-25527-00
Unavailable
25
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
25
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
26
COLLAR
90387-14019-00
Unavailable
27
WASHER, PLATE
90201-14022-00
Unavailable
28
BOLT, WASHER BASED(8CJ)
90105-14766-00
Unavailable
