Description

Price

1

STARTING MOTOR SET

8CR-W8180-00-00

Unavailable

2

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

3

NUT(6TA)

95317-06600-00

$3.55

4

BOLT, SMALL FLANGE

95027-08030-00

$3.76

5

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

6

. WIRE, MINUS LEAD

8CW-82116-00-00

Unavailable

7

. WIRE, LEAD

8CW-82117-00-00

Unavailable

8

. CLAMP

90465-10381-00

Unavailable

9

CLAMP(4FM)

90464-15195-00

$4.41

10

DAMPER

8CW-82176-00-00

Unavailable

11

PIPE (L320)

8CW-8235W-01-00

Unavailable

12

CLIP(41W)

90467-08092-00

$9.49

13

. BRACKET, BATTERY

8CW-2199G-00-00

Unavailable

14

BOLT (796)

90109-06513-00

$3.55

15

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

16

SEAT, BATTERY

84N-82122-00-00

Unavailable

17

BAND, BATTERY

1E6-82131-00-00

Unavailable

18

. WIRE, PLUS LEAD

8CW-82115-00-00

Unavailable

19

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

21

GEAR 1

8DM-1760A-18-00

Unavailable

22

BOLT,CAP

8DV-17617-10-00

Unavailable

23

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

24

LABEL, BATTERY

40A-82141-G0-00

Unavailable

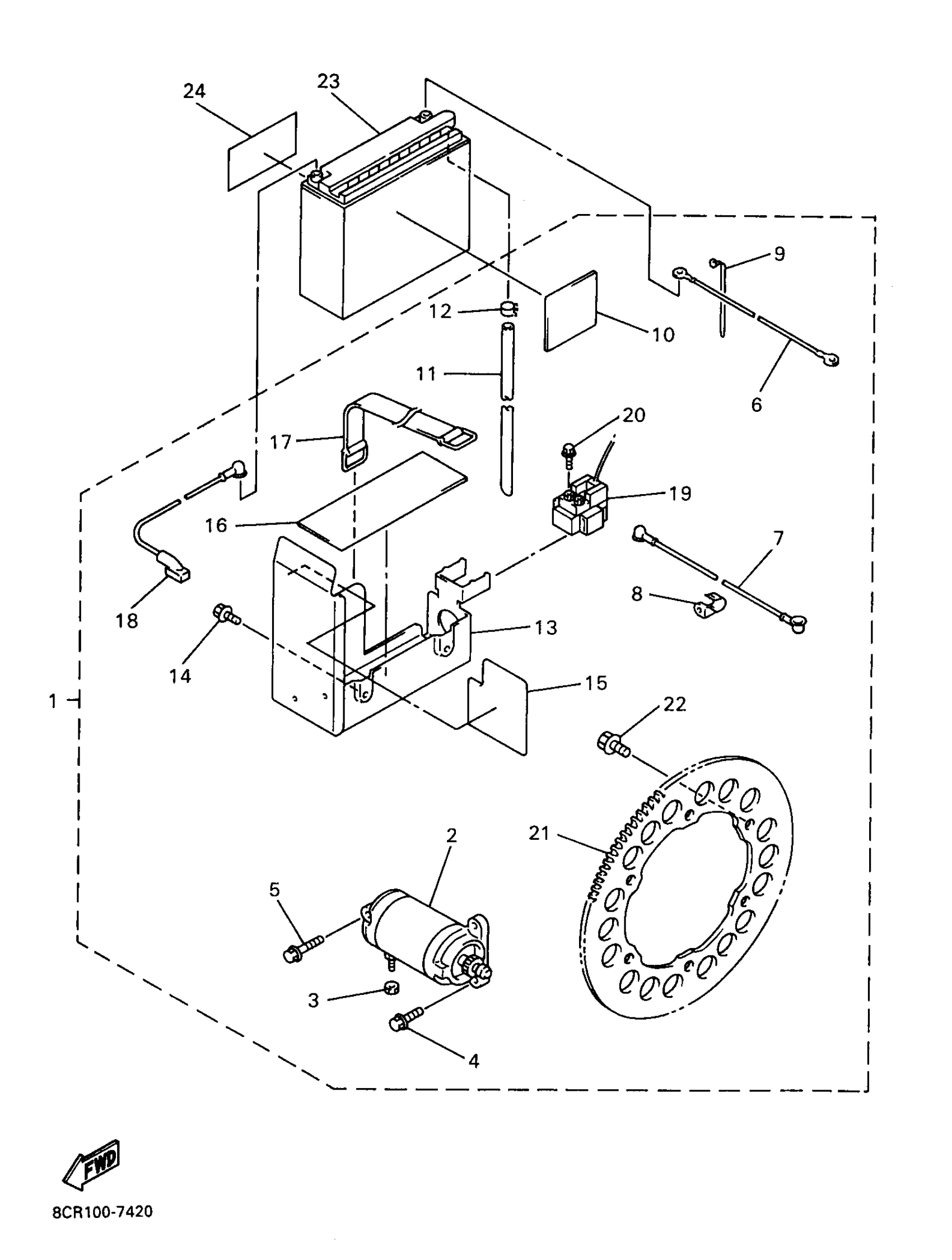

Yamaha VX600XTCA (VMAX 600 XTC) 8CX1 1997 ALTERNATE STARTER MOTOR SET Diagram

STARTING MOTOR SET

STARTING MOTOR ASSY

NUT(6TA)

BOLT, SMALL FLANGE

BOLT, FLANGE(4ES)

. WIRE, MINUS LEAD

. WIRE, LEAD

. CLAMP

CLAMP(4FM)

DAMPER

PIPE (L320)

CLIP(41W)

. BRACKET, BATTERY

BOLT (796)

. SHIELD, HEAT

SEAT, BATTERY

BAND, BATTERY

. WIRE, PLUS LEAD

STARTER RELAY ASSY (RC19-016)

BOLT, SMALL FLANGE

GEAR 1

BOLT,CAP

YB16ALA2 YUASA BATTERY

LABEL, BATTERY
