1997 Yamaha Vmax 600 XT (VX600XTA) Steering Diagram

← All diagrams

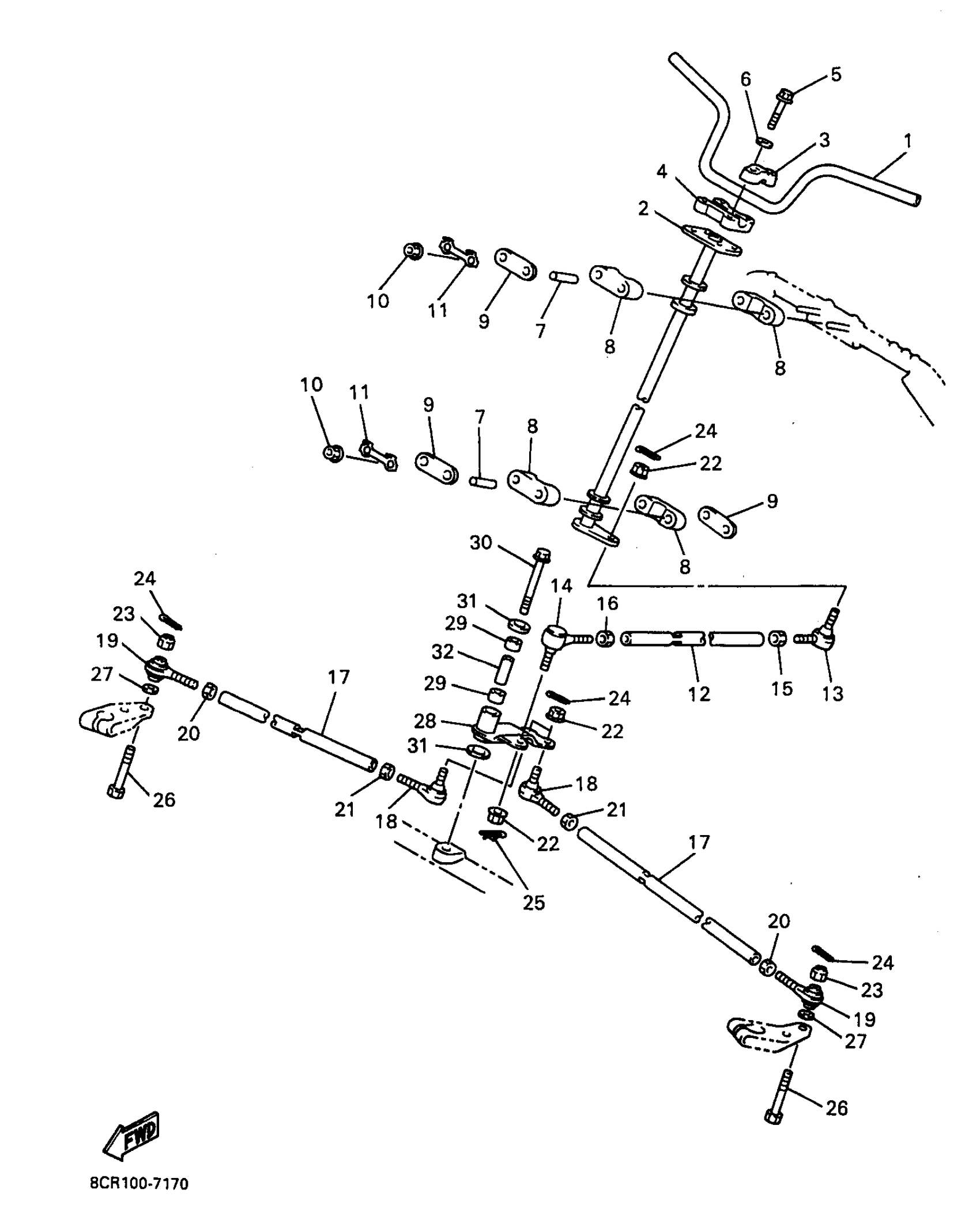

Find the part on the Steering diagram for your 1997 Yamaha Vmax 600 XT (VX600XTA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Vmax 600 XT (VX600XTA) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8CR-23811-00-00

—
Out of stock

2

COLUMN, STEERING 2

8CR-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, HEXAGON

97017-08055-00

1
Out of stock

6

WASHER(6TA)

92907-08600-00

1
Out of stock

7

COLLAR(85G)

90387-106T4-00

1
Out of stock

8

PLANE BEARING, STEERING

8DF-23812-00-00

1
Out of stock

9

HOLDER, BEARING

8CR-23872-00-00

—
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

WASHER, LOCK 1

1UY-23894-01-00

1
Out of stock

12

ROD, STEERING RELAY

8CR-23821-00-00

—
Out of stock

13

JOINT, UNIVERSAL 2

8CR-23845-10-00

1
Out of stock

14

JOINT, UNIVERSAL 3

8CR-23847-00-00

1
Out of stock

15

NUT (3WP1)

95317-10700-00

1
Out of stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

17

ROD, TIE

8CR-23831-00-00

—
Out of stock

18

JOINT, UNIVERSAL 2

8CR-23845-10-00

1
Out of stock

19

JOINT, UNIVERSAL 3

87S-23847-01-00

—
Out of stock

20

NUT (3WP1)

95317-10700-00

1
Out of stock

21

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

22

NUT, FLANGE(8AB)

95707-10500-00

—
Out of stock

23

NUT, NYLON

95707-10300-00

—
Out of stock

24

PIN, COTTER

91490-25020-00

—
Out of stock

25

CLIP 136253750000

90468-12006-00

—
Out of stock

26

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

27

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock

28

ARM, IDLER

99999-03123-00

1
Out of stock

29

BUSH, BIMETAL FORMED

90384-20231-00

1
Out of stock

30

BOLT, WASHER BASED (26H)

90105-12252-00

—
Out of stock

31

WASHER, PLATE(47X)

90201-121J0-00

—
Out of stock

32

COLLAR

8CR-2412G-00-00

1
Out of stock
