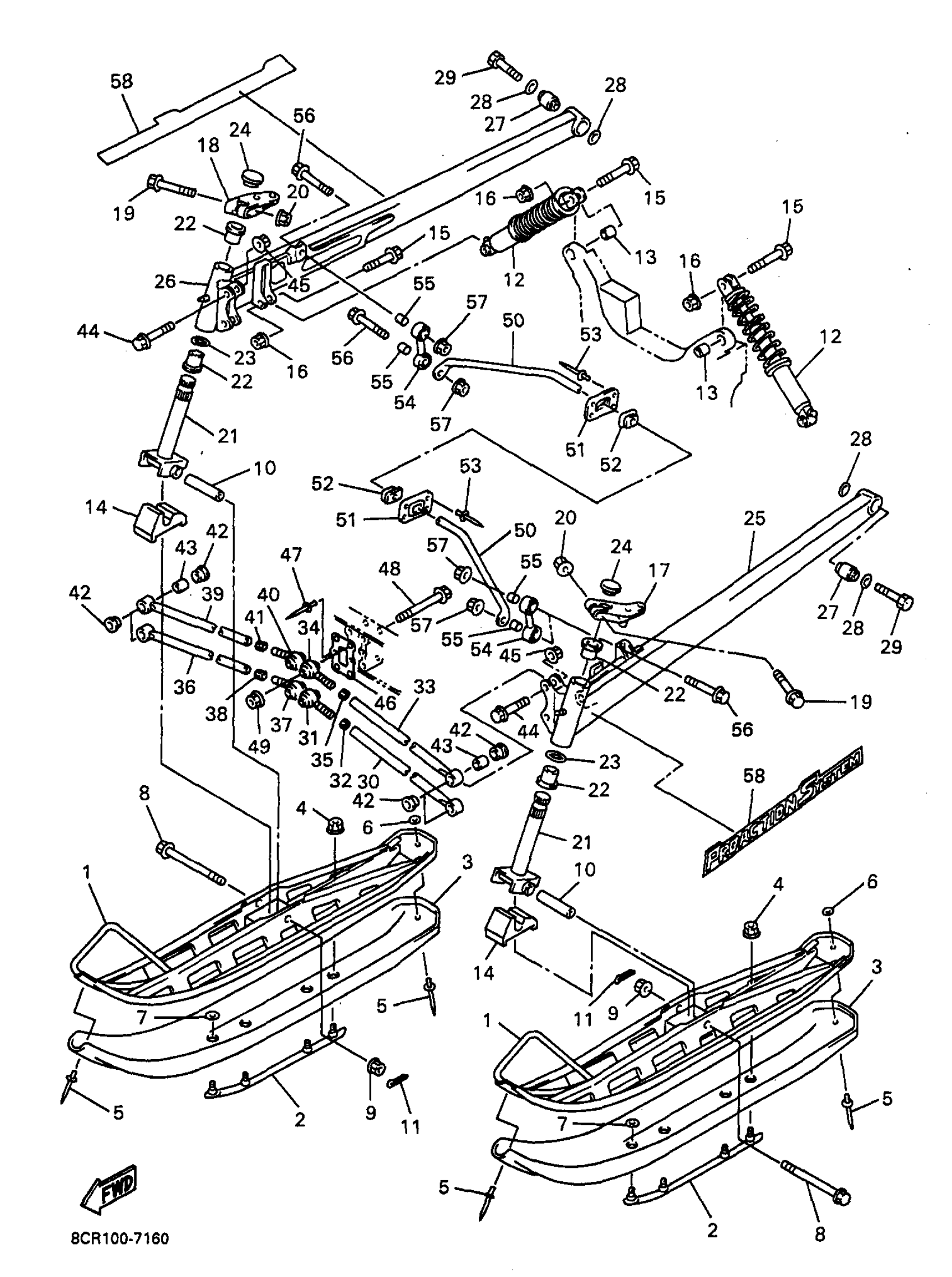

Find the part on the Ski diagram for your 1997 Yamaha Vmax 600 XT (VX600XTA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Vmax 600 XT (VX600XTA) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8CV-23710-00-00

1
Out of stock

2

RUNNER 1

8CS-23731-00-00

1
Out of stock

3

RUNNER 2

8CV-23732-11-RD

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

5

RIVET, BLIND(8CP)

90267-48184-00

1
Out of stock

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

7

WASHER, PLATE

90201-08020-00

1
Out of stock

8

BOLT, WASHER BASED(83M)

90105-10438-00

—
Out of stock

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

10

COLLAR

90387-1012H-00

1
Out of stock

11

PIN, COTTER

91490-20025-00

1
Out of stock

12

ABSORBER ASSEMBLY 1

8CR-2376A-00-00

1
Out of stock

13

BUSH

8CR-2376B-00-00

1
Out of stock

14

STOPPER 1

8CR-23743-00-00

1
Out of stock

15

BOLT, FLANGE

90105-10030-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

17

ARM, OUTSIDE 1

8CR-23851-00-00

—
Out of stock

18

ARM, OUTSIDE 2

8CR-23852-00-00

1
Out of stock

19

BOLT, FLANGE(87Y)

95817-10055-00

—
Out of stock

20

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

21

COLUMN, SKI ASSY

8CR-23803-01-00

—
Out of stock

22

BUSH, SOLID

90381-25115-00

—
Out of stock

23

WASHER, PLATE (25G)

90201-301G3-00

—
Out of stock

24

CAP 1

8CR-23741-00-00

1
Out of stock

25

ARM, FRONT 1

8CR-2382E-03-00

1
Out of stock

26

ARM, FRONT 2

8CR-2382F-03-00

—
Out of stock

27

DAMPER

8CR-2516A-00-00

—
Out of stock

28

WASHER, PLATE(8CJ)

90201-120T5-00

—
Out of stock

29

BOLT(8CJ)

90101-12046-00

—
Out of stock

30

ARM, CONTROL 2

8CR-2384F-02-00

1
Out of stock

31

JOINT 3

8DN-23832-00-00

1
Out of stock

32

NUT

95314-14600-00

1
Out of stock

33

ARM, CONTROL 1

8CR-2384E-02-00

—
Out of stock

34

JOINT 2

8DN-23823-00-00

—
Out of stock

35

NUT, HEXAGON

95337-12600-00

—
Out of stock

36

ARM, CONTROL 2

8CR-2384F-02-00

1
Out of stock

37

JOINT 3

8DN-23832-00-00

1
Out of stock

38

NUT

95314-14600-00

1
Out of stock

39

ARM, CONTROL 1

8CR-2384E-02-00

—
Out of stock

40

JOINT 2

8DN-23823-00-00

—
Out of stock

41

NUT, HEXAGON

95337-12600-00

—
Out of stock

42

BUSH, SOLID(8CJ)

90381-17110-00

—
Out of stock

43

COLLAR(8CJ)

90387-1009K-00

—
Out of stock

44

BOLT, FLANGE

90105-10030-00

1
Out of stock

45

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

46

WASHER

8DF-23779-00-00

—
Out of stock

47

RIVET, BLIND (8J5)

90267-48057-00

—
Out of stock

48

BOLT, FLANGE

90105-124A2-00

1
Out of stock

49

NUT, U FLANGE

95607-12200-00

—
Out of stock

50

BAR, STABILIZER FRONT

8CR-2386E-00-00

—
Out of stock

51

COVER, STABILIZER FRONT

8CR-2386H-00-00

1
Out of stock

52

BUSH, STABILIZER FRONT

8CR-2386G-00-00

1
Out of stock

53

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

54

JOINT, STABILIZER 1

8CR-2385L-00-00

—
Out of stock

55

COLLAR(8V7)

90387-087L3-00

—
Out of stock

56

BOLT, FLANGE

95817-08040-00

—
Out of stock

57

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

58

EMBLEM 15

8CR-77371-00-00

1
Out of stock
