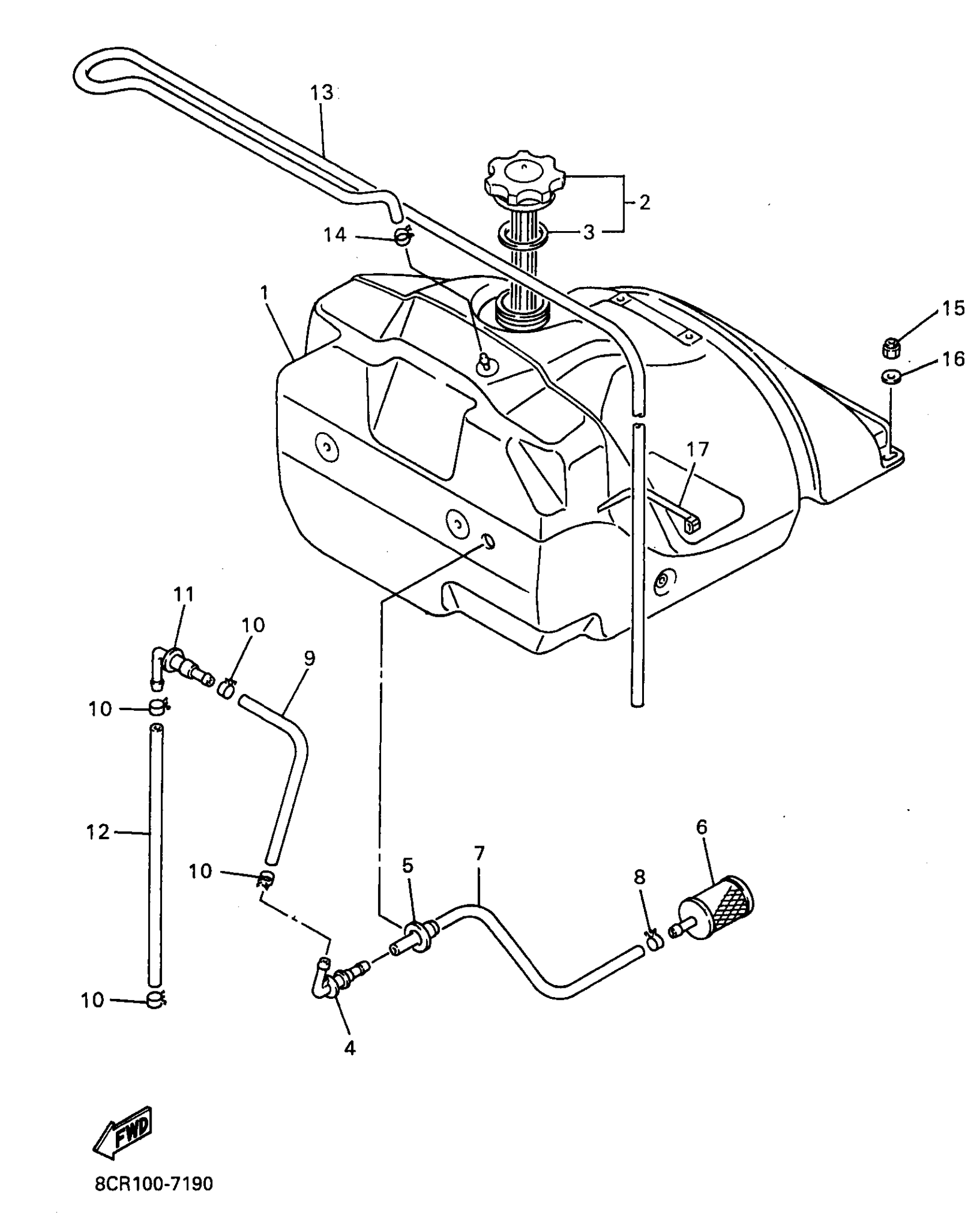

Yamaha VX600XTA (VMAX 600 XT) 8CR1 1997 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8CR-24111-00-00

Unavailable

2

CAP ASSY

8CR-24610-00-00

Unavailable

3

GASKET, CAP

8CW-24612-00-00

$17.49

4

PIPE, JOINT 1

8CR-24376-01-00

$5.49

5

GROMMET

8CR-24339-00-00

$5.49

6

FILTER ASSY

8H5-24560-00-00

Unavailable

7

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

$5.60

8

CLIP (7K7)

90467-11044-00

$8.49

9

PIPE, FUEL 1

8CR-24311-01-00

Unavailable

10

CLIP (7K7)

90467-11044-00

$8.49

11

PIPE, JOINT 1

8CR-24376-01-00

$5.49

12

TUBE, FLEXIBLE VINYL

91A20-07030-00

Unavailable

13

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

14

CLIP (8A1)

90467-09026-00

$3.28

15

NUT, NYLON

95717-08300-00

$2.70

16

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

17

CLAMP(4FM)

90464-15195-00

Unavailable
