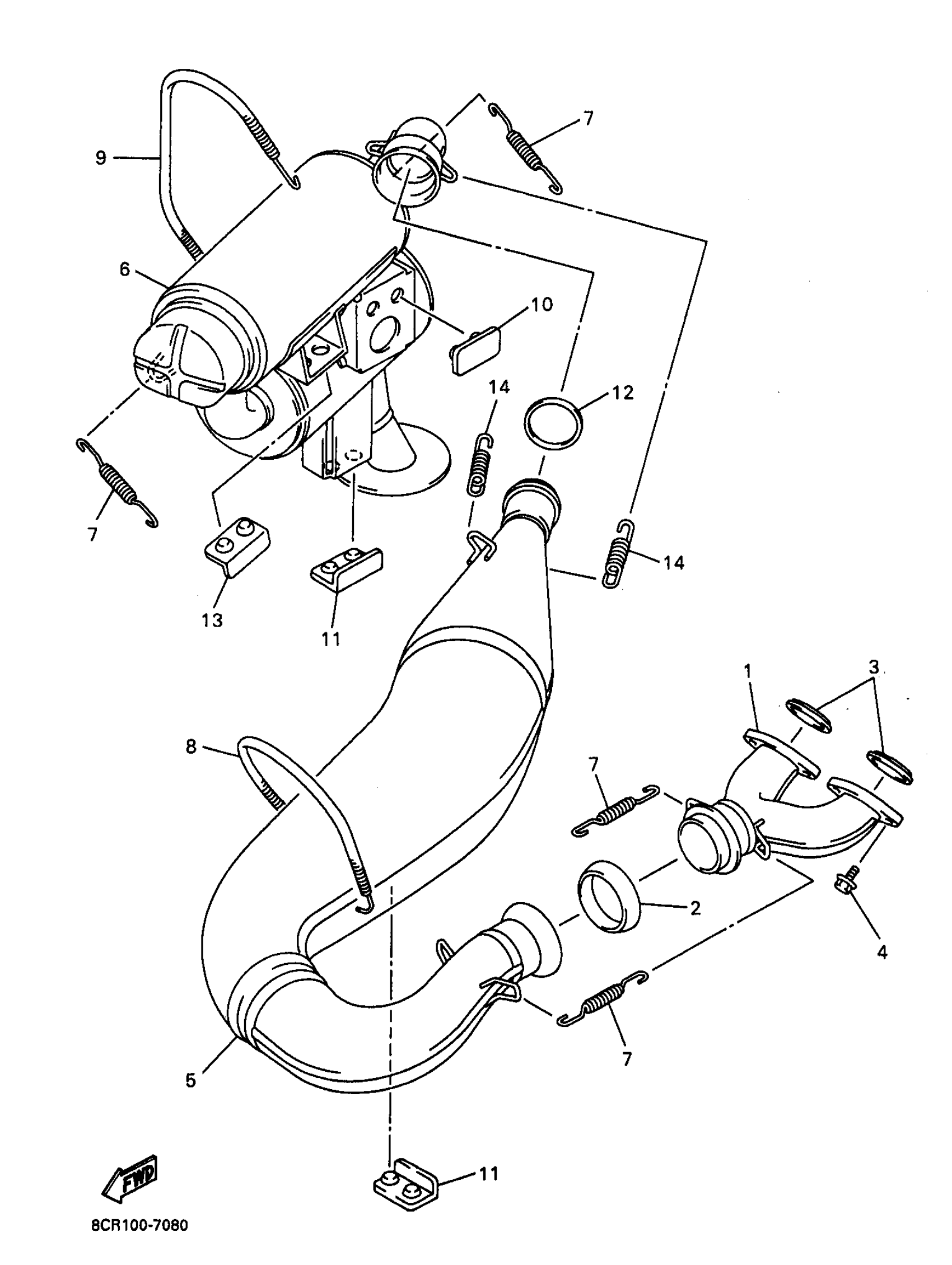

Yamaha VX600XTA (VMAX 600 XT) 8CR1 1997 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

8CR-14610-00-00

Unavailable

2

GASKET, MUFFLER

8CA-14714-00-00

$61.99

3

GASKET, EXHAUST PIPE

8CR-14613-00-00

$29.99

4

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

5

EXHAUST PIPE ASSY 2

8CR-14620-01-00

Unavailable

6

SECOND SILENCER,MUFFLER

8CR-14640-01-00

Unavailable

7

SPRING, TENSION (8R7)

90506-20272-00

$11.49

8

SPRING, TENSION

90506-16335-00

Unavailable

9

SPRING, TENSION

90506-16504-00

Unavailable

10

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

11

PROTECTOR, MUFFLER 2

83R-14728-01-00

$33.99

12

RING

8CH-14633-00-00

$14.49

13

PROTECTOR, MUFFLER 2

8CR-14728-00-00

Unavailable

14

SPRING, TENSION (8M6)

90506-20093-00

$9.49
