1996 Yamaha Vmax 600 (VX600W) Track Drive 2 Diagram

← All diagrams

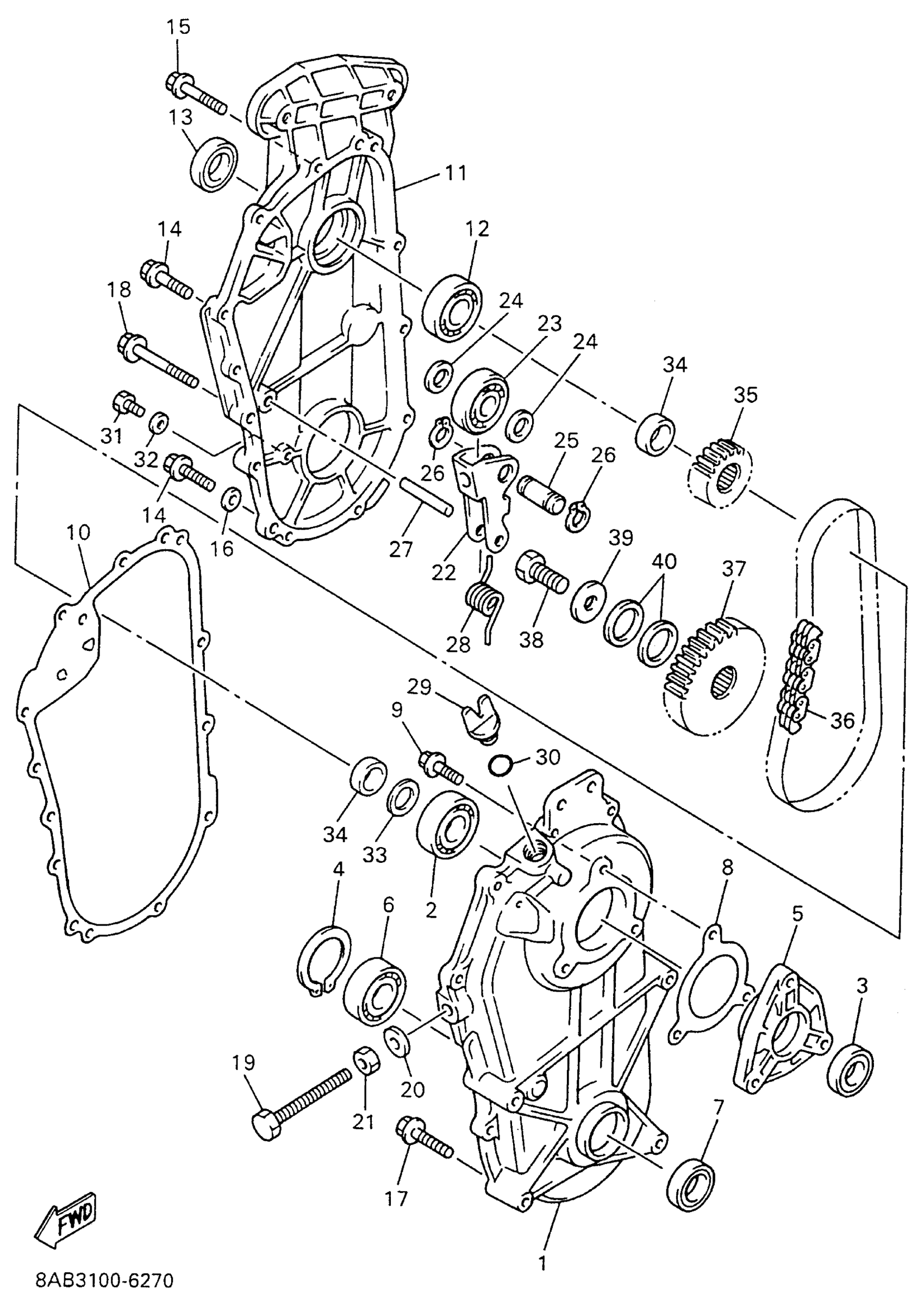

Find the part on the Track Drive 2 diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 (VX600W) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8AB-47541-01-00

1
Out of stock

2

BEARING (80N)

93306-20570-00

—

$54.59

In stock

3

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

4

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

5

CAP 2

8AB-47559-00-00

1
Out of stock

6

BEARING (80N)

93306-20570-00

—

$54.59

In stock

7

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

8

GASKET

8AB-47544-00-00

1
Out of stock

9

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

10

GASKET

8AB-47592-01-00

1
Out of stock

11

CAP, HOUSING

8AB-47543-01-00

1
Out of stock

12

BEARING (30X)

93306-20447-00

1

$33.97

In stock

13

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

14

BOLT, FLANGE

95817-06035-00

1

$5.37

In stock

15

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

16

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

17

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

18

BOLT, FLANGE

95817-08075-00

—

$3.37

In stock

19

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

20

WASHER SEAL 256111730200

90210-10004-00

—

$4.11

In stock

21

NUT (3WP1)

95317-10700-00

—

$6.17

In stock

22

HOLDER

88T-47613-00-00

1
Out of stock

23

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

24

WASHER, PLATE(2WG)

90201-204M9-00

—
Out of stock

25

SHAFT 2

88T-12257-00-00

—

$19.54

In stock

26

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

27

SHAFT, TENSIONER

88T-12247-00-00

1
Out of stock

28

SPRING, TORSION

90508-324A8-00

1
Out of stock

29

PLUG, OIL

3Y1-15363-10-00

—

$17.02

In stock

30

O-RING (646)

93210-19123-00

—

$6.91

In stock

31

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

32

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

33

—

$7.18

In stock

34

COLLAR(85T)

90387-250V9-00

—

$18.06

In stock

35

SPROCKET, CHAIN DRIVE (20T)

8AY-17682-00-00

1
Out of stock

35

SPROCKET, CHAIN DRIVE (21T)

8AY-17682-10-00

1
Out of stock

35

SPROCKET, CHAIN DRIVE (17T)

8AY-17682-70-00

1
Out of stock

35

SPROCKET, CHAIN DRIVE (18T)

8AY-17682-80-00

1
Out of stock

35

SPROCKET, CHAIN DRIVE (19T)

8AY-17682-90-00

1
Out of stock

36

CHAIN (68L)

94880-03068-00

1
Out of stock

36

CHAIN (70L)

94880-03070-00

1
Out of stock

36

CHAIN (72L)

94880-03072-00

1
Out of stock

37

SPROCKET, CHAIN DRIVEN (33T)

89A-47587-30-00

1
Out of stock

37

SPROCKET, CHAIN DRIVEN (35T)

89A-47587-50-00

1
Out of stock

37

SPROCKET, CHAIN DRIVEN (37T)

89A-47587-70-00

1
Out of stock

37

SPROCKET, CHAIN DRIVEN (39T)

89A-47587-90-00

1
Out of stock

38

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

39

WASHER, PLATE(8BV)

90201-100S7-00

—

$9.75

In stock

40

—

$7.18

In stock
