- VX600W (VMAX 600) 1996
PRIMARY SHEAVE

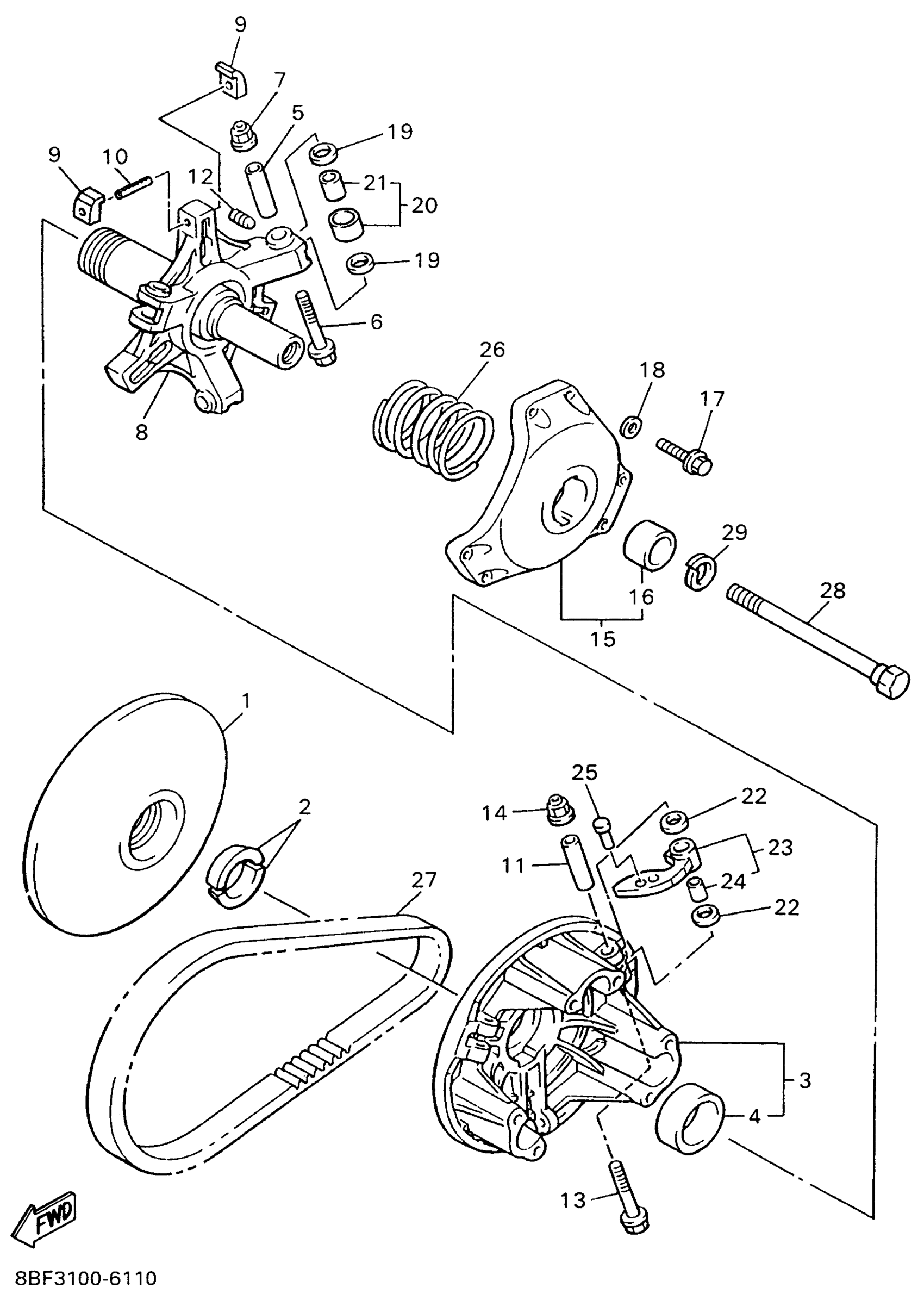

1996 Yamaha Vmax 600 (VX600W) Primary Sheave Diagram
Find the part on the Primary Sheave diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
SHEAVE, PRIMARY FIXED
8BV-17611-19-00
1
Out of stock
8
SPIDER COMP.
8CA-17640-12-00
1
Out of stock
12
BOLT, SET
90113-05041-00
1
Out of stock
16
. BUSH, BIMETAL FORMED
90384-28244-00
1
Out of stock
19
WASHER, PLATE(8BV)
90202-09227-00
—
Out of stock
20
ROLLER, COMP
8CR-17624-20-00
—
Out of stock
21
ROLLER BUSH
90380-09239-00
1
Out of stock
22
WASHER, PLATE(88R)
90202-08204-00
—
Out of stock
24
. BUSH, SOLID
90380-08244-00
1
Out of stock
25
RIVET, COUNTER SUNK (8G8)
90261-06017-00
—
Out of stock
27
V-BELT
89L-17641-02-00
1
Out of stock
More Drive & Transmission diagrams
