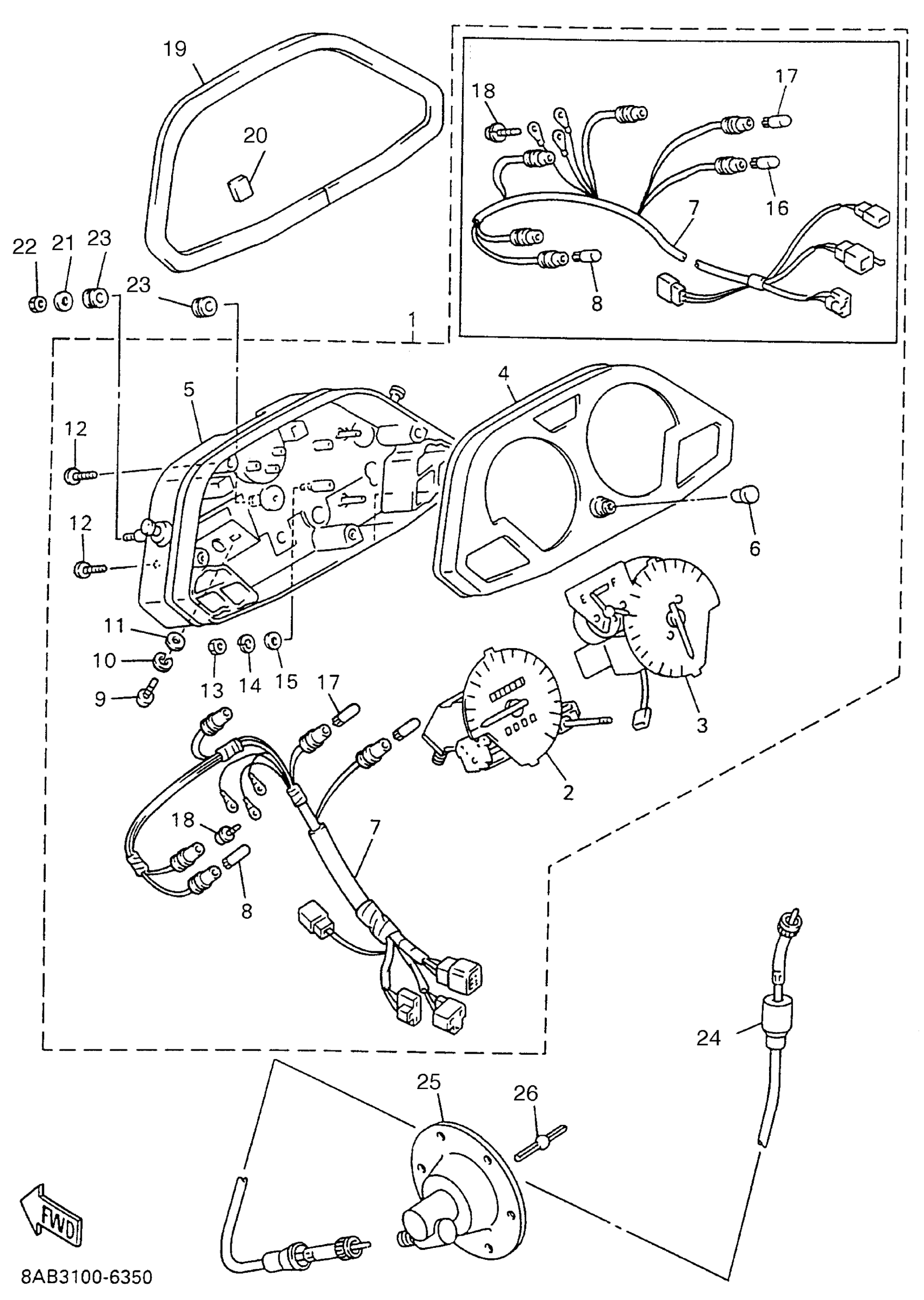

Yamaha VX600W (VMAX 600) 1996 METER Diagram
#
Description
Price
1
SPEEDOMETER ASY
89A-83500-42-00
Unavailable
2
SPEEDOMETER ASSY
8CR-83580-40-00
Unavailable
3
TACHOMETER ASSY
89A-83540-42-00
Unavailable
4
COVER,METER
88R-83559-20-00
Unavailable
5
. CASE, UNDER (8AS-8353H-20-00)
89A-8353H-40-00
Unavailable
6
KNOB, TRIP METER
29L-83578-00-00
Unavailable
7
. SOCKET CORD ASSEMBLY
89A-83509-40-00
Unavailable
8
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
9
SCREW, PAN HEAD
98517-04012-00
$3.88
10
WASHER(6TA)
92907-04100-00
$8.49
11
WASHER(JF2)
92907-04600-00
$1.71
12
SCREW, TRUSS TAP.
97707-40014-00
Unavailable
13
NUT(6TA)
95307-04600-00
$8.49
14
WASHER(6TA)
92907-04100-00
$8.49
15
WASHER(JF2)
92907-04600-00
$1.71
16
BULB (6V 3W)
4N0-83516-00-00
Unavailable
17
BULB (12V-1.7W)
3GM-83517-00-00
Unavailable
18
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
19
TRIM 5
89A-77225-00-00
Unavailable
20
DAMPER 1
89A-77198-00-00
Unavailable
21
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
22
NUT(6TA)
95317-06600-00
Unavailable
23
DAMPER
5J0-83513-00-00
Unavailable
24
SPEEDOMETER CABLE ASSEMBLY
8AB-83550-00-00
Unavailable
25
METER GEAR HOUSING COMP
83R-47700-00-00
Unavailable
26
JOINT
8K4-47715-00-00
Unavailable
