Description

Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSY

8CA-85540-10-00

Unavailable

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

BOLT, FLANGE

95817-06016-00

$2.75

9

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

10

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

WIRE HARNESS ASSEMBLY

8AB-82590-10-00

Unavailable

13

WIRE, LEAD

8AB-8471G-00-00

Unavailable

14

CLAMP

90464-20031-00

Unavailable

15

BAND

341-26397-01-00

Unavailable

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

17

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

18

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

19

NUT, FLANGE(4MV)

95707-06500-00

$1.23

20

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

21

CAP, KEY

526-82579-00-00

Unavailable

22

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

23

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

24

BUZZER

8CL-83383-00-00

Unavailable

25

NUT,SELF-LOCKING

95607-06200-00

Unavailable

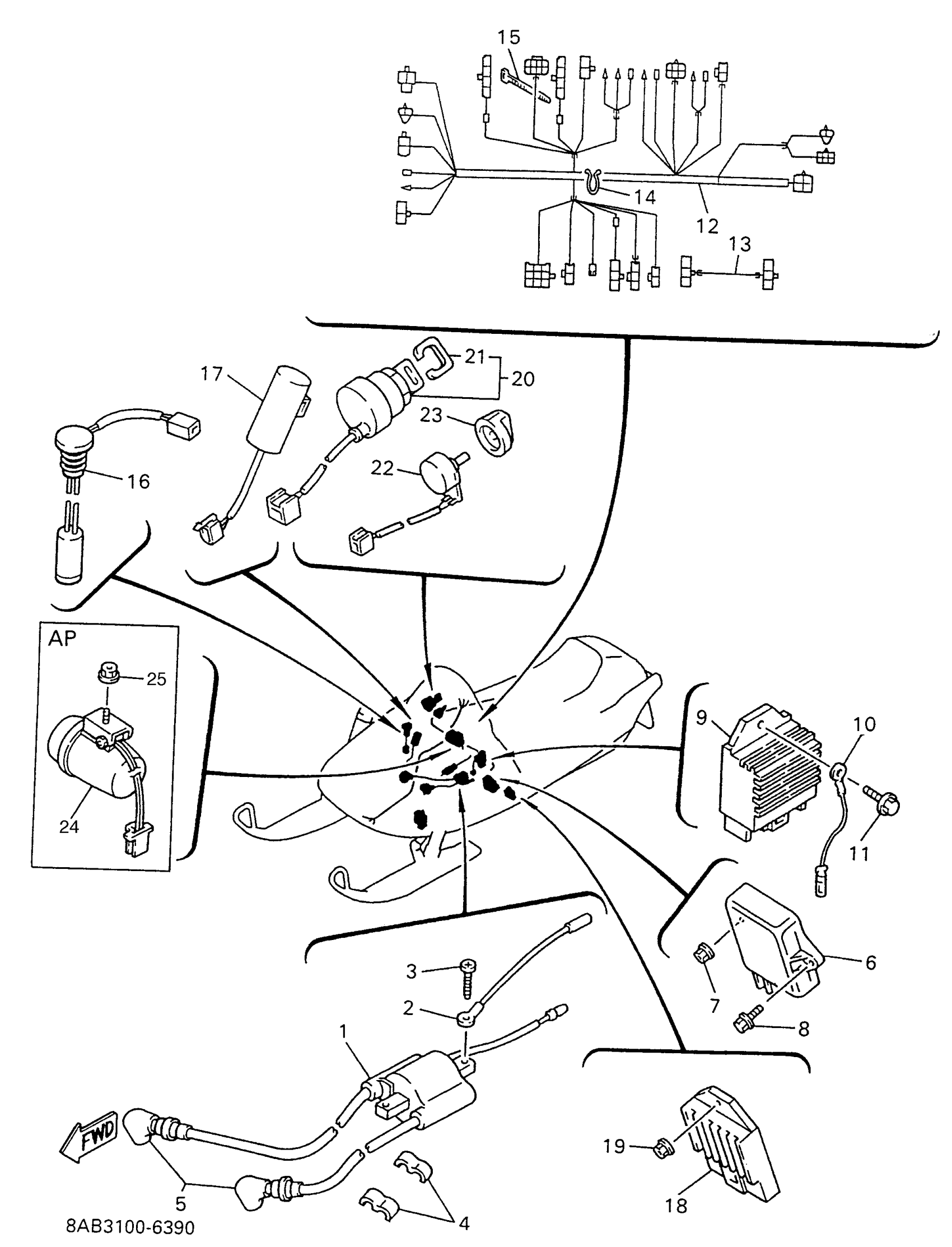

Yamaha VX600W (VMAX 600) 1996 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, TAPPING(65J)

CLAMP, CORD

PLUG CAP ASSY

C.D.I. UNIT ASSY

NUT, FLANGE(4MV)

BOLT, FLANGE

RECTIFIER & REGULATOR ASSY

WIRE, SUB-LEAD

BOLT, FLANGE

WIRE HARNESS ASSEMBLY

WIRE, LEAD

CLAMP

BAND

OIL LEVEL GAUGE ASSY

CONDENSER, SMOOTHING

VOLTAGE REGULATOR ASSY

NUT, FLANGE(4MV)

MAIN SWITCH ASSY

CAP, KEY

RESISTOR, VARIABLE

KNOB, VARIABLE RESISTOR

BUZZER

NUT,SELF-LOCKING
