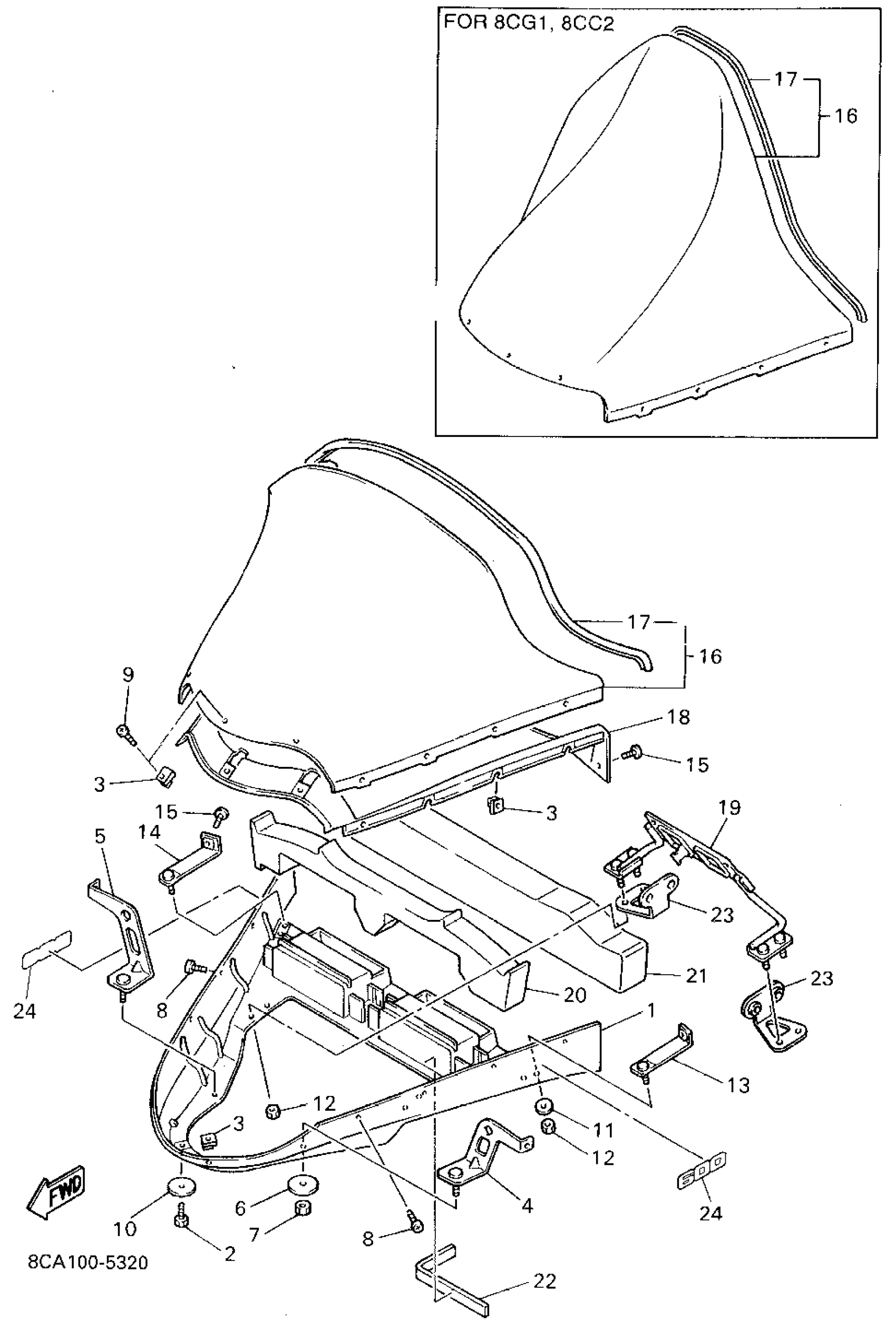

Yamaha VX600V (VMAX 600) 1995 WINDSHIELD Diagram

#

Description
Price

1

FAIRING

89A-77231-00-00

Unavailable

1

FAIRING

8AB-77231-00-00

Unavailable

1

FAIRING

8CL-77231-00-00

Unavailable

2

BOLT(4TW)

97017-05016-00

$3.29

3

NUT

89A-77144-00-00

Unavailable

4

STAY 1

8AB-77125-00-00

Unavailable

5

STAY 2

8AB-77126-00-00

Unavailable

6

WASHER, PLATE (3Y6)

90201-083A6-00

$2.65

7

NUT(6TA)

95337-08600-00

$8.49

8

SCREW, BINDING(2EK)

90154-05042-00

$8.49

9

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

10

WASHER, PLATE (7N7)

90201-052E8-00

$4.72

11

WASHER, PLATE

90201-06747-00

$8.49

12

NUT(6TA)

95317-06600-00

$3.55

13

PLATE, BACK UP 1

89A-77153-00-00

Unavailable

14

PLATE, BACK UP 2

89A-77154-00-00

Unavailable

15

SCREW, BINDING (10V)

90154-05013-00

Unavailable

16

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

Unavailable

17

TRIM,UPPER

87K-77213-00-00

Unavailable

17

TRIM,UPPER

87K-77213-00-00

Unavailable

18

COVER, HEADLIGHT

89A-77251-00-00

Unavailable

19

BRACKET, METER

89A-83519-00-00

Unavailable

20

LINING, SHROUD

8AB-77268-00-00

Unavailable

21

SHIELD, NOISE 2

89A-2199J-00-00

Unavailable

22

PAD

1NL-28378-00-00

Unavailable

23

STAY 3

8AB-77127-00-00

Unavailable

24

EMBLEM 2

8CA-77142-00-00

Unavailable

24

EMBLEM 2

8CA-77142-10-00

Unavailable

24

EMBLEM 2

8CG-77142-00-00

Unavailable
