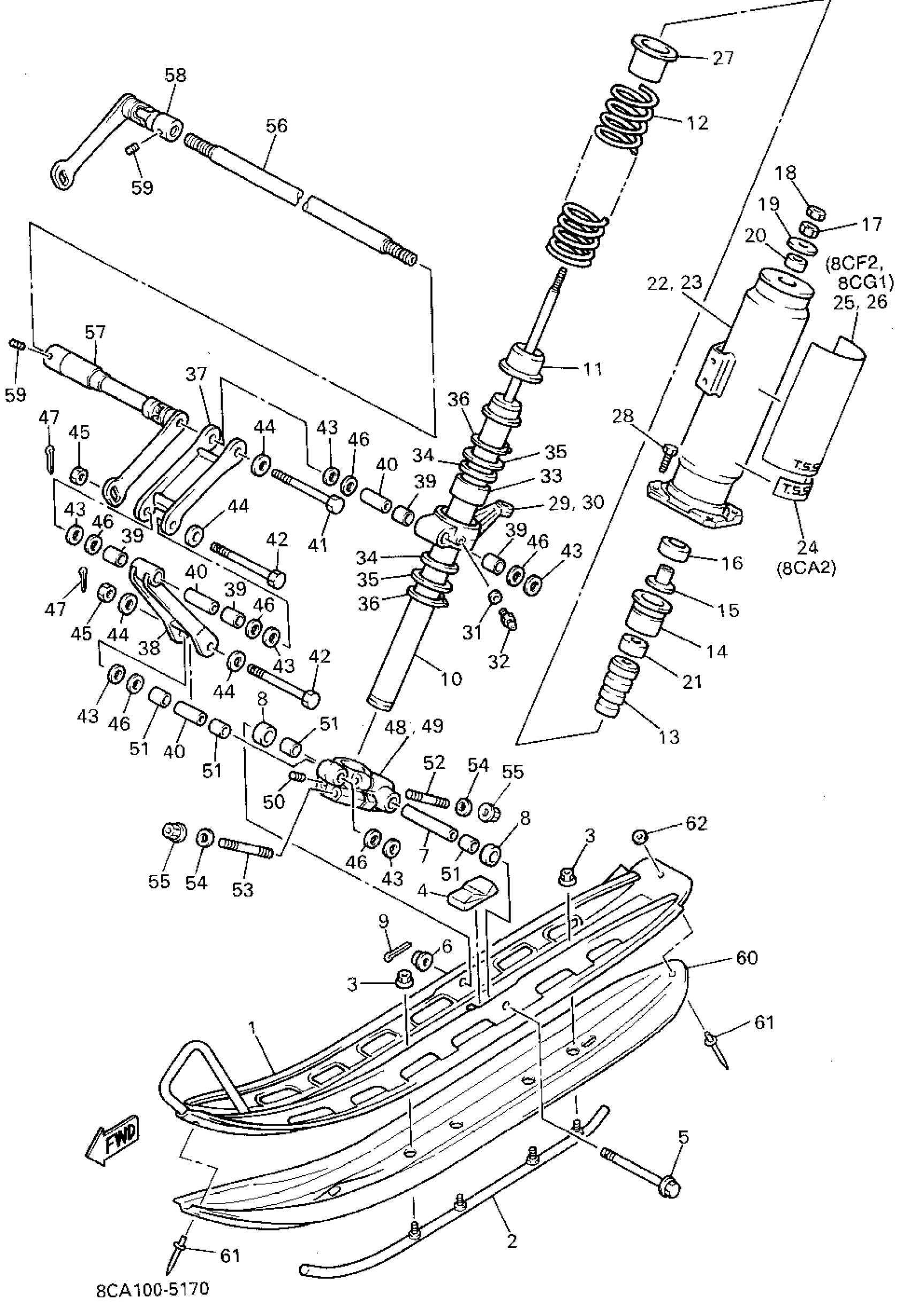

Find the part on the SKI diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AB-23710-01-00

1
Out of stock

2

RUNNER 1 (8CM-23731-00-00)

8CM-23731-00-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

STOPPER 1

8AB-23743-01-00

1
Out of stock

5

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

6

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

7

COLLAR(8AB)

90387-1002P-00

1

$19.05

In stock

8

COLLAR

90387-1402C-00

1
Out of stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

DAMPER SUB ASSEMBLY

8BN-22401-00-00

1
Out of stock

10

DAMPER SUB ASSEMBLY

8BN-22401-00-00

1
Out of stock

11

SEAT, SPRING 2

82M-23777-00-00

—

$16.71

In stock

12

SPRING, COMPRESSION

90501-752J4-00

1
Out of stock

12

SPRING, COMPRESSION

90501-753J5-00

1
Out of stock

12

SPRING, COMPRESSION

90501-783J6-00

1
Out of stock

13

BUMP, STOP

89L-22493-00-00

—

$50.17

In stock

14

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

15

COLLAR(82M)

90387-084R1-00

—

$12.29

In stock

16

WASHER

82M-23779-00-00

—

$12.78

In stock

17

. NUT

90170-08220-00

1
Out of stock

18

NUT(6L2)

95333-08600-00

—

$3.20

In stock

19

WASHER, PLATE(82M)

90201-080L1-00

—

$2.67

In stock

20

COLLAR

90387-1702A-00

1
Out of stock

21

COLLAR

90387-1102B-00

1
Out of stock

22

HOLDER,ABSORBER

8AB-2376J-10-00

1
Out of stock

22

HOLDER,ABSORBER

8AS-2376J-10-00

1
Out of stock

23

HOLDER,ABSORBER 2

8AB-2377J-10-00

1
Out of stock

23

HOLDER,ABSORBER 2

8AS-2377J-10-00

1
Out of stock

24

EMBLEM 15

8AP-77371-00-00

1
Out of stock

24

EMBLEM 15

8BF-77371-00-00

1
Out of stock

25

EMBLEM 15

8BB-77371-00-00

1
Out of stock

26

EMBLEM 15

8BB-77371-00-00

1
Out of stock

27

PROTECTOR

8AB-2376R-01-00

1
Out of stock

27

PROTECTOR

8CA-2376R-00-00

1
Out of stock

28

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

29

ARM, OUTSIDE 1

82M-23851-00-00

—

$108.65

In stock

30

ARM, OUTSIDE 2 (R, H)

82M-23852-00-00

1
Out of stock

31

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

32

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

33

—

$33.18

In stock

34

OIL SEAL (8U7)

93109-53036-00

—

$10.34

In stock

35

WASHER, PLATE(8W1)

90201-535H6-00

—

$3.78

In stock

35

WASHER, PLATE (8L9)

90201-536A1-00

—

$3.66

In stock

36

CIRCLIP (8L9)

93410-52061-00

—

$10.51

In stock

37

ARM, FRONT 1

8AB-2382E-00-00

1
Out of stock

38

ARM, FRONT 2

8AB-2382F-00-00

1
Out of stock

39

—

$9.15

In stock

40

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

41

BOLT

90101-10040-00

1
Out of stock

42

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

43

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

44

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

45

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

46

WASHER(82M)

90209-14296-00

—

$9.10

In stock

47

PIN, COTTER

91490-20025-00

1

$1.31

In stock

48

BRACKET 1

84M-2376E-00-00

—

$259.32

In stock

49

BRACKET 2

84M-2377E-00-00

—

$339.69

In stock

50

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

51

—

$9.15

In stock

52

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

53

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

54

WASHER(4PE)

92907-18600-00

—

$6.92

In stock

55

NUT, NYLON

95717-08300-00

—

$2.57

In stock

56

BAR,STABLZR FRONT

8AB-2386E-01-00

1
Out of stock

57

JOINT, STABILIZER 1

8CL-2385L-00-00

—
Out of stock

58

JOINT, STABILIZER 2

8CL-2385M-00-00

1
Out of stock

59

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

60

RUNNER 2

8AB-23732-11-RD

1
Out of stock

61

RIVET, BLIND(89A)

90267-48160-00

—

$5.77

In stock

62

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock
