1995 Yamaha Vmax 600 (VX600V) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

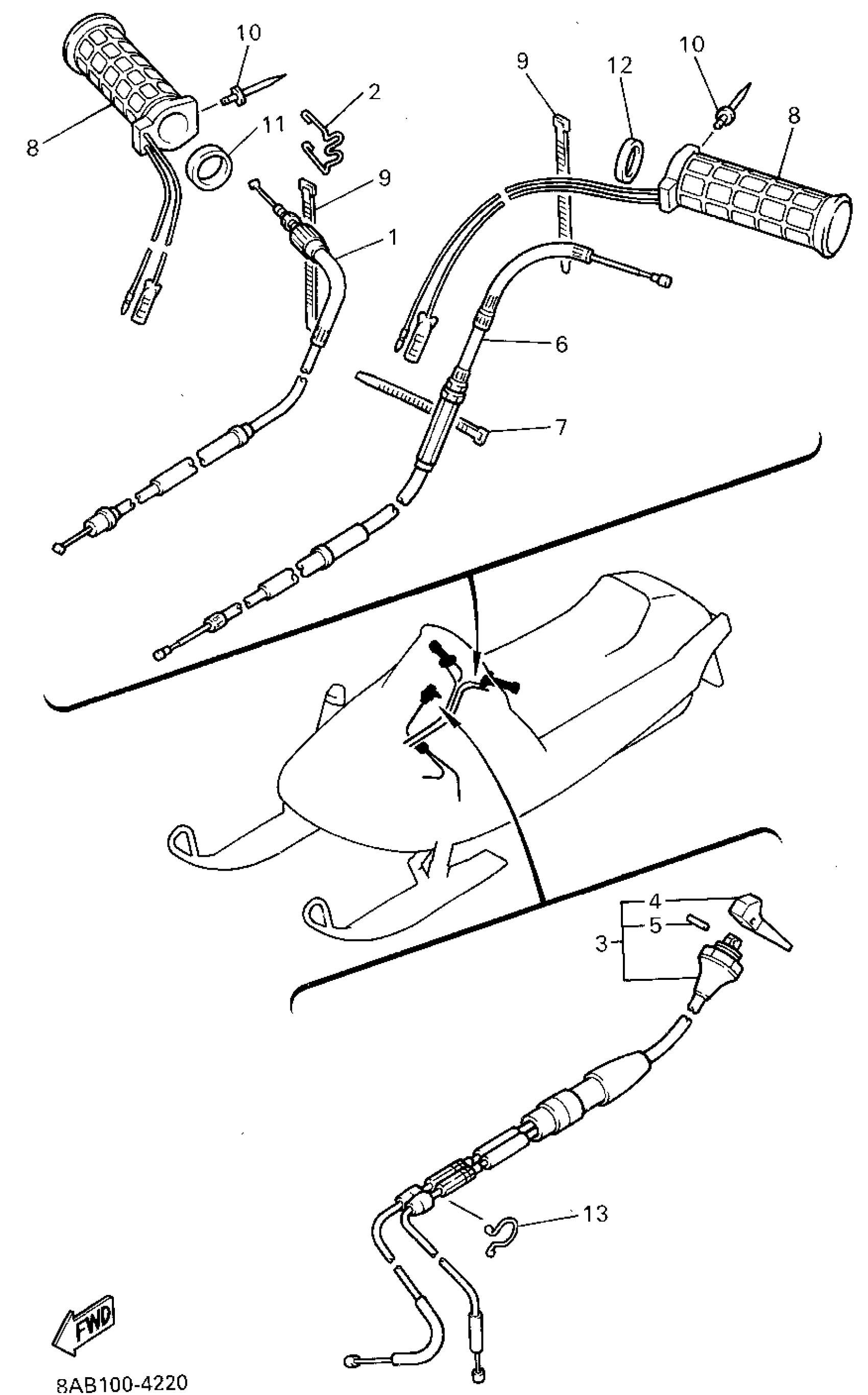

1995 Yamaha Vmax 600 (VX600V) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8AB-26311-00-00

1
Out of stock

2

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

3

STARTER CABLE ASSEMBLY

8AB-26330-00-00

1
Out of stock

4

KNOB, STARTER

8U9-26325-00-00

1

$10.03

In stock

5

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

6

CABLE,BRAKE

8AB-26340-01-00

1
Out of stock

7

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

8

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

9

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

10

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

11

COLLAR

90387-224F9-00

1
Out of stock

12

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

13

CLAMP (3Y2)

90464-16039-00

1
Out of stock
