1995 Yamaha Vmax 600 (VX600V) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

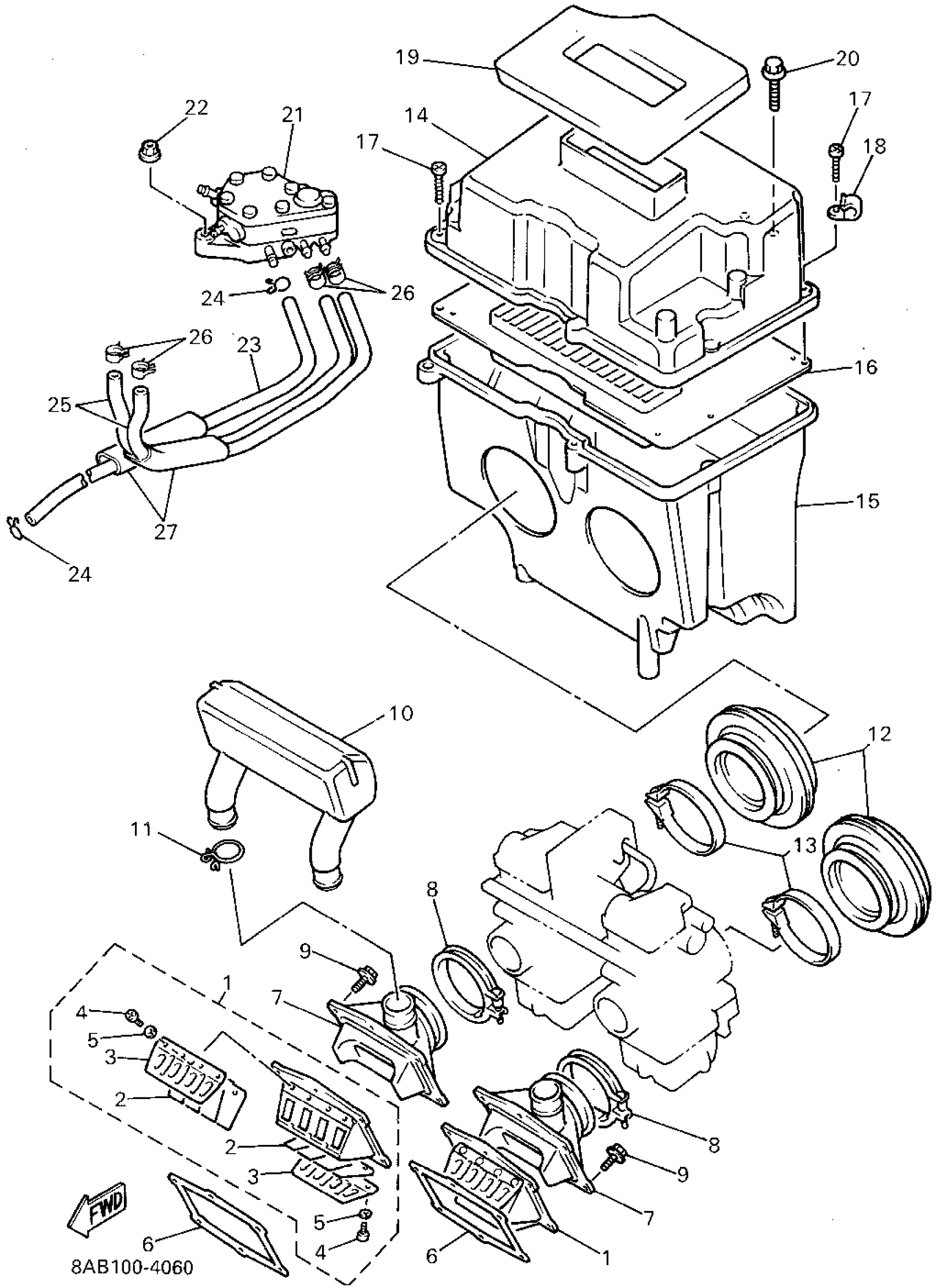

1995 Yamaha Vmax 600 (VX600V) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

8CA-13610-00-00

1
Out of stock

2

. REED, VALVE

8CA-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

8CA-13616-00-00

1
Out of stock

4

SCREW, PAN

98507-03006-00

1

$6.68

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

8AB-13621-00-00

1

$12.63

In stock

7

MANIFOLD, INTAKE

8AB-13555-00-00

1
Out of stock

8

BAND

86M-13575-00-00

1

$16.45

In stock

9

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

10

CHAMBER, AIR

8AB-13581-00-00

1
Out of stock

11

CLIP(8V0)

90467-24096-00

1
Out of stock

12

JOINT,AIR CLNR 1

8AB-14453-00-00

1
Out of stock

13

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

14

SILENCER, INTAKE 1

8AB-14431-00-00

1
Out of stock

15

SILENCER, INTAKE 2

8AB-14441-00-00

1
Out of stock

16

PLATE

8AB-14477-00-00

1
Out of stock

17

SCREW, TAPPING(82M)

90167-05043-00

—

$5.62

In stock

18

CLAMP

90465-08028-00

1

$4.62

In stock

19

DAMPER 1

8AB-14425-01-00

1
Out of stock

20

BOLT, WITH WASHER(2WG)

90119-06172-00

—

$5.83

In stock

21

FUEL PUMP ASSY

89A-24410-01-00

—

$226.22

In stock

22

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

23

HOSE (L450)

90445-10144-00

—

$4.52

In stock

24

CLIP

90467-090A2-00

—

$2.51

In stock

25

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

26

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

27

HOSE (L70)

90445-22327-00

—

$6.15

In stock
