1995 Yamaha Vmax 600 (VX600V) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

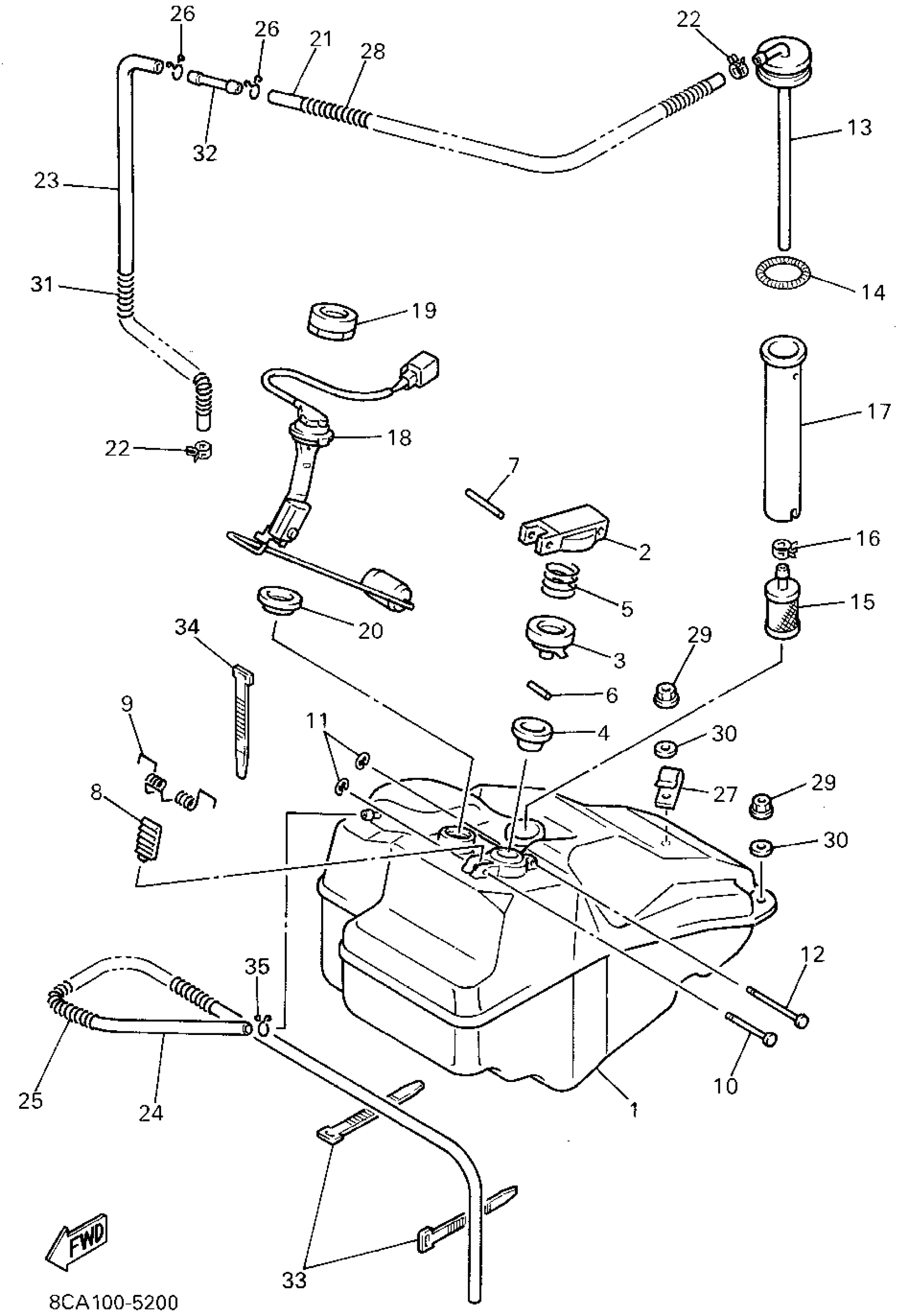

1995 Yamaha Vmax 600 (VX600V) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

89A-24111-01-00

1
Out of stock

2

BODY, CAP

8W6-24611-00-00

—
Out of stock

3

DISK,CAP

813-24613-01-00

1
Out of stock

4

GASKET, CAP 1

89A-24641-00-00

1
Out of stock

5

SPRING, CAP

90501-20130-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1
Out of stock

7

PIN, SPRING (8W6)

91609-25050-00

1
Out of stock

8

HOOK

83M-24628-00-00

1
Out of stock

9

SPRING, TORSION(81E)

90508-10715-00

—
Out of stock

10

PIN (813)

90249-03017-00

1
Out of stock

11

CIRCLIP (604)

93430-02001-00

1
Out of stock

12

PIN (8W6)

90249-03175-00

—
Out of stock

13

PIPE, SUCTION 1

8AB-24335-00-00

1
Out of stock

14

SPRING, TENSION (8R4)

90506-06261-00

1
Out of stock

15

FILTER ASSY

8H5-24560-00-00

1
Out of stock

16

CLIP (7K7)

90467-11044-00

—
Out of stock

17

PIPE, SUCTION 2

89A-24336-00-00

1
Out of stock

18

SNDR UT ASY,F/MTR

89A-85752-01-00

1
Out of stock

19

HOUSING, FUEL METER

53L-24261-00-00

1
Out of stock

20

GASKET, SENDER UNIT

53L-85753-00-00

1
Out of stock

21

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

—
Out of stock

22

CLIP (7K7)

90467-11044-00

—
Out of stock

23

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

—
Out of stock

24

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—
Out of stock

25

SPRING, COMPRESSION

90501-085G3-00

1
Out of stock

26

CLIP (8J7)

90467-11009-00

—
Out of stock

27

CLAMP (706)

90465-06100-00

—
Out of stock

28

PROTECTOR, PIPE

8F3-24327-00-00

1
Out of stock

29

NUT, NYLON

95717-08300-00

—
Out of stock

30

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

31

. PROTECTOR, PIPE

85L-24327-00-00

1
Out of stock

32

PIPE, JOINT 4

878-24379-00-00

1
Out of stock

33

BAND

341-26397-01-00

1
Out of stock

34

BAND, SWITCH CORD

25G-83936-01-00

—
Out of stock

35

CLIP (8L2)

90467-08017-00

—
Out of stock
