Description

Price

1

CRANKCASE ASSY

8AB-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

WASHER, PLATE 3411117500

90201-08087-00

$3.71

4

BOLT, SMALL FLANGE

95027-08016-00

$8.49

5

PIN, DOWEL (8H1)

93604-07141-00

$2.17

6

PIN (2H7)

93603-10049-00

Unavailable

7

JOINT, BREATHER

J38-11116-00-00

$3.80

8

BOLT, FLANGE(8BN)

95817-08085-00

$4.08

9

PIN, DOWEL

99530-12016-00

$4.89

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

COVER, CRANKCASE 2

8AB-15421-01-00

Unavailable

12

BEARING(82M)

93306-20117-00

$34.99

13

BOLT, FLANGE

95817-08040-00

$7.49

14

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

15

PLATE

8K4-12633-00-00

Unavailable

16

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

Unavailable

17

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

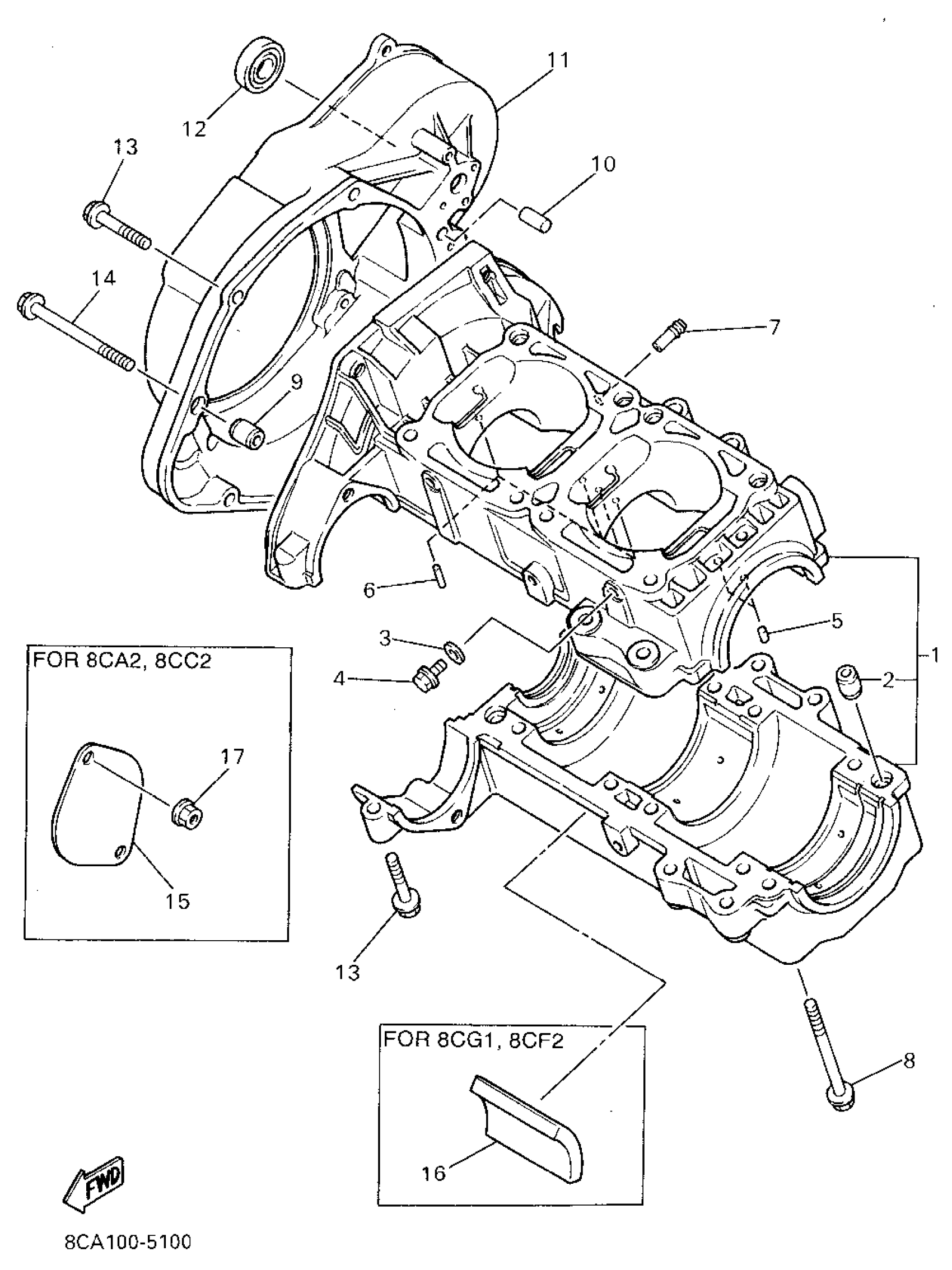

Yamaha VX600V (VMAX 600) 1995 CRANKCASE Diagram

CRANKCASE ASSY

PIN, DOWEL

WASHER, PLATE 3411117500

BOLT, SMALL FLANGE

PIN, DOWEL (8H1)

PIN (2H7)

JOINT, BREATHER

BOLT, FLANGE(8BN)

PIN, DOWEL

PIN, DOWEL(3XW)

COVER, CRANKCASE 2

BEARING(82M)

BOLT, FLANGE

BOLT, FLANGE(JF2)

PLATE

DAMPER, ENGINE MOUNT 1

NUT, FLANGE(JN5)
