Description

Price

1

BUMPER, FRONT 1

8AB-77511-00-00

Unavailable

1

BUMPER, FRONT 1

8CL-77511-00-00

Unavailable

2

STAY 4

8AX-77128-00-00

Unavailable

3

BUMPER, REAR 1

8BX-77541-00-00

Unavailable

4

SCREW,FLAT

98707-08025-00

Unavailable

5

NUT, FLANGE(JN5)

95707-08500-00

$3.13

6

BUSH, RUBBER 2

89L-77516-00-00

Unavailable

7

SCREW, PAN

98507-06014-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER(6TA)

92907-06600-00

$2.72

10

END, BUMPER

8N8-77523-00-00

Unavailable

11

END, BUMPER

8N8-77524-00-00

Unavailable

12

FLAP

8V9-77595-00-00

Unavailable

13

RIVET, BLIND (8R6)

90267-48086-00

$4.14

14

PROTECTOR 1

82M-77551-00-00

Unavailable

15

RIVET (8M6)

90269-04025-00

Unavailable

16

PROTECTOR 4

82M-77554-01-00

Unavailable

17

EMBLEM, YAMAHA

99246-00140-00

Unavailable

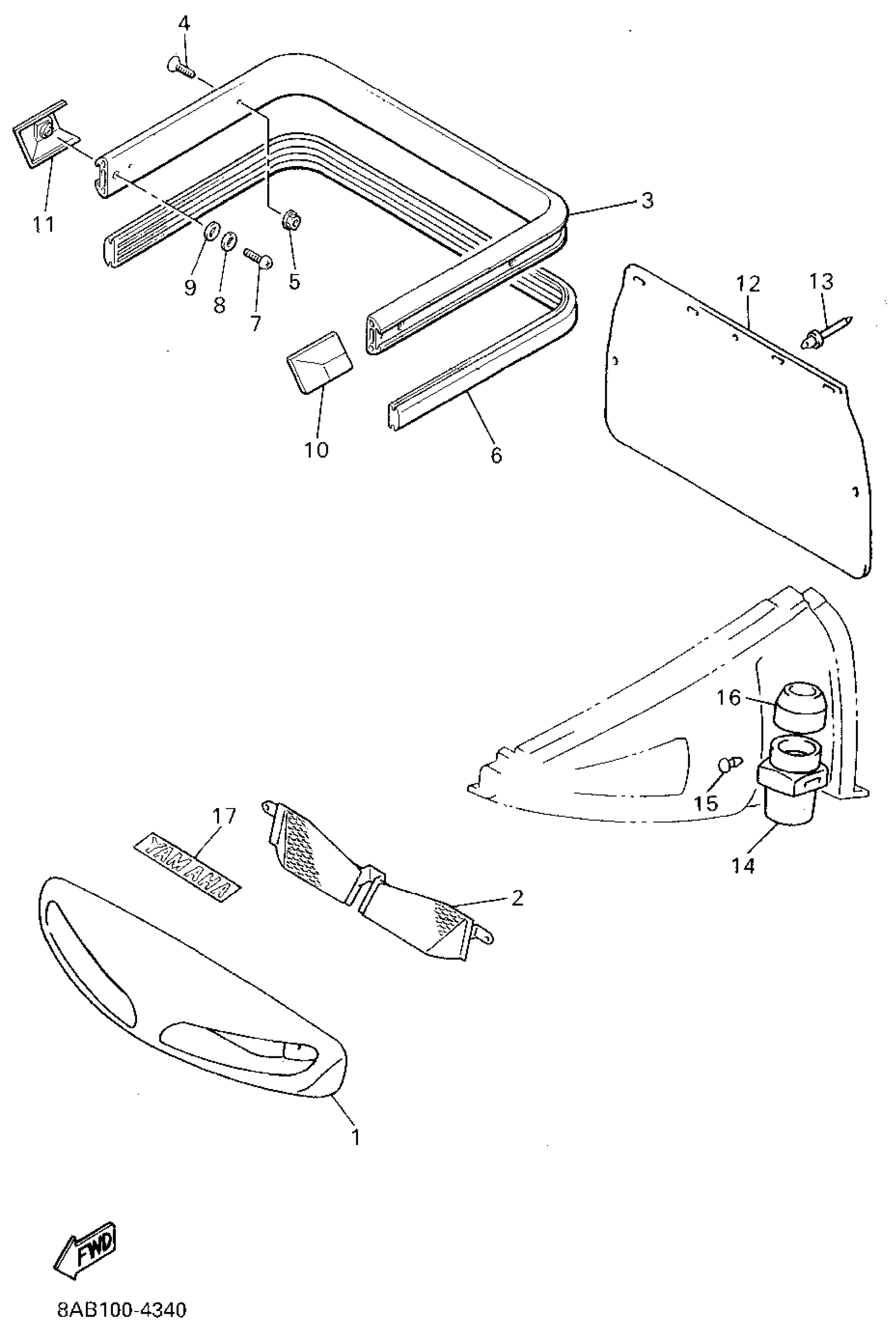

Yamaha VX600V (VMAX 600) 1995 BUMPER 2 8CC2 8CG1 Diagram

BUMPER, FRONT 1

BUMPER, FRONT 1

STAY 4

BUMPER, REAR 1

SCREW,FLAT

NUT, FLANGE(JN5)

BUSH, RUBBER 2

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

END, BUMPER

END, BUMPER

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4

EMBLEM, YAMAHA
