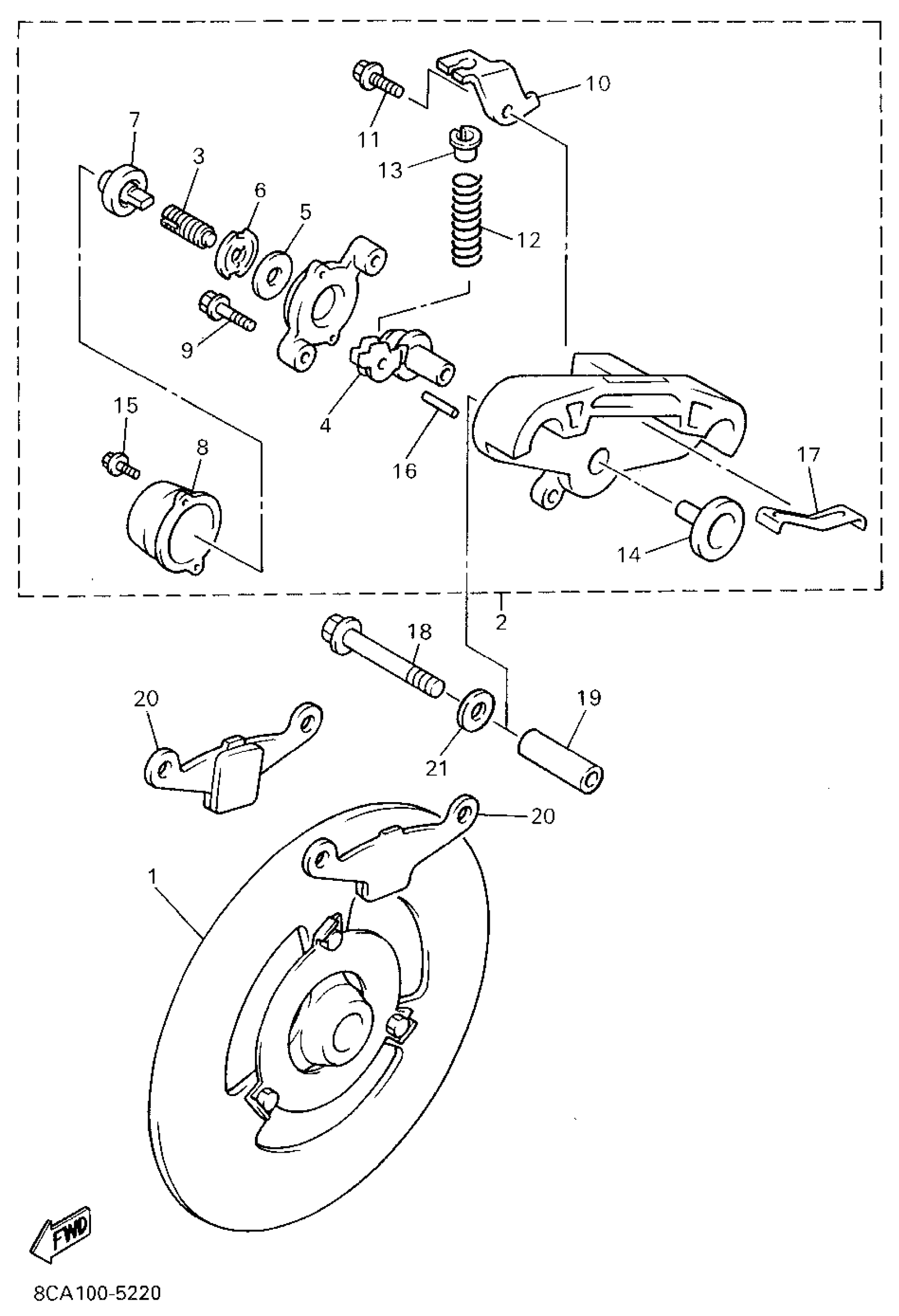

Yamaha VX600V (VMAX 600) 1995 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSEMBLY

8AB-25830-02-00

Unavailable

2

CALIPER BODY COMP.1

8AB-25730-00-00

Unavailable

3

SCREW, ADJUSTING 1

86M-25738-00-00

$17.49

4

. LEVER, BRAKE

86M-25726-01-00

Unavailable

5

SHIM, CALIPER

86M-25827-00-00

Unavailable

6

LOCK, ONE WAY 2

86M-25773-00-00

Unavailable

7

. RATCHET, ADJUSTING

89A-25771-00-00

Unavailable

8

COVER

86M-25772-00-00

Unavailable

9

BOLT, CALIPER

86M-25818-00-00

Unavailable

10

. BRACKET, CALIPER

8AB-25721-00-00

Unavailable

11

BOLT 3

86M-25826-00-00

$1.51

12

. SPRING, COMPRESSION

86M-25743-00-00

Unavailable

13

BRACKET, ADJUSTING

87R-25722-00-00

Unavailable

14

. PLATE, BACK UP

89A-25733-00-00

Unavailable

15

BOLT, FITTING

86M-25833-00-00

$7.99

16

PIN 2

86M-25744-00-00

Unavailable

17

. HOOK, SPRING

89A-25736-00-00

Unavailable

18

BOLT, WASHER BASED(4HM)

90105-10737-00

Unavailable

19

COLLAR

90387-105Y1-00

Unavailable

20

PAD, LINING COMP.

89A-25811-01-00

Unavailable

21

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
