- VX600U (VMAX 600) 1994
STARTING MOTOR

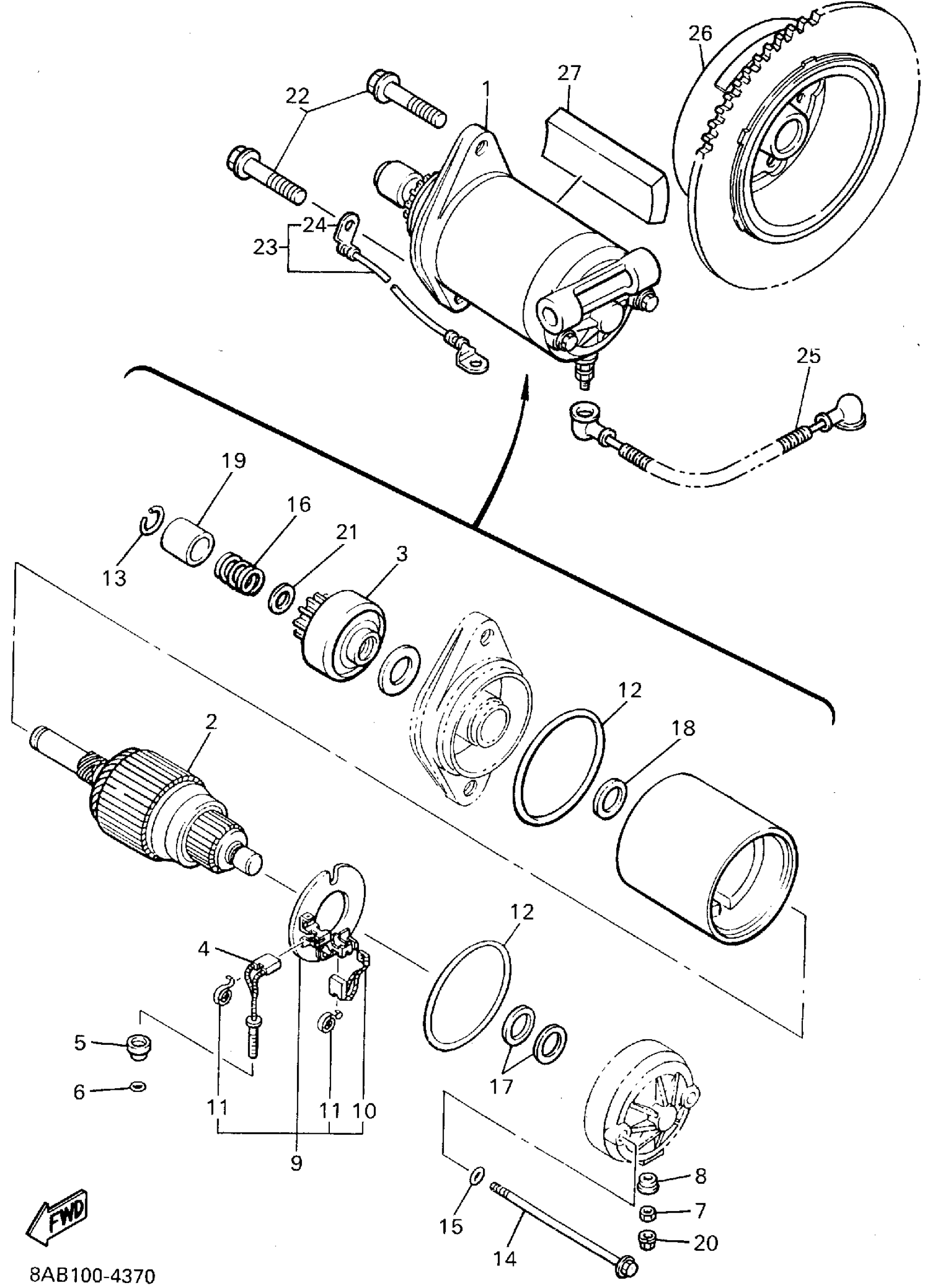

Yamaha VX600U (VMAX 600) 1994 STARTING MOTOR Diagram
#
Description
Price
1
STARTING MOTOR ASSY
8BB-81800-02-00
Unavailable
2
ARMATURE ASSY
8Y3-81850-50-00
Unavailable
3
CLUTCH, OVER RUN
84N-81832-51-00
Unavailable
4
BRUSH 1
73A-81811-01-00
Unavailable
5
. GROMMET
73A-81829-50-00
Unavailable
6
. O-RING
73A-81847-00-00
Unavailable
7
NUT
4H7-81872-00-00
Unavailable
8
. GROMMET
73A-81829-00-00
Unavailable
9
BRUSH HOLDER ASSY
8L6-81840-51-00
$82.99
10
BRUSH 2
84N-81812-00-00
$13.49
11
SPRING, BRUSH
8L6-81813-50-00
Unavailable
12
O-RING
4H7-81844-00-00
Unavailable
13
RING
8L6-81834-50-00
$2.60
14
BOLT
84N-81826-00-00
$15.49
15
O-RING
8L6-81847-50-00
$3.28
16
SPRING, LEVER
8BB-81836-00-00
Unavailable
17
WASHER 1
4H7-81843-50-00
Unavailable
18
WASHER
8L6-81835-50-00
Unavailable
19
RING, STOP
8L6-81833-50-00
Unavailable
20
NUT, U FLANGE
95604-06200-00
Unavailable
21
WASHER, PLATE
8BB-8185A-00-00
Unavailable
22
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
23
WIRE, MINUS LEAD
8BB-82116-00-00
Unavailable
24
. TERMINAL 1
84N-82103-00-00
Unavailable
25
WIRE,LEAD
8CL-82117-00-00
Unavailable
26
ROTOR ASSY
8CB-85550-00-00
Unavailable
27
DAMPER, ENGINE MOUNT 1
84N-15316-00-00
Unavailable
