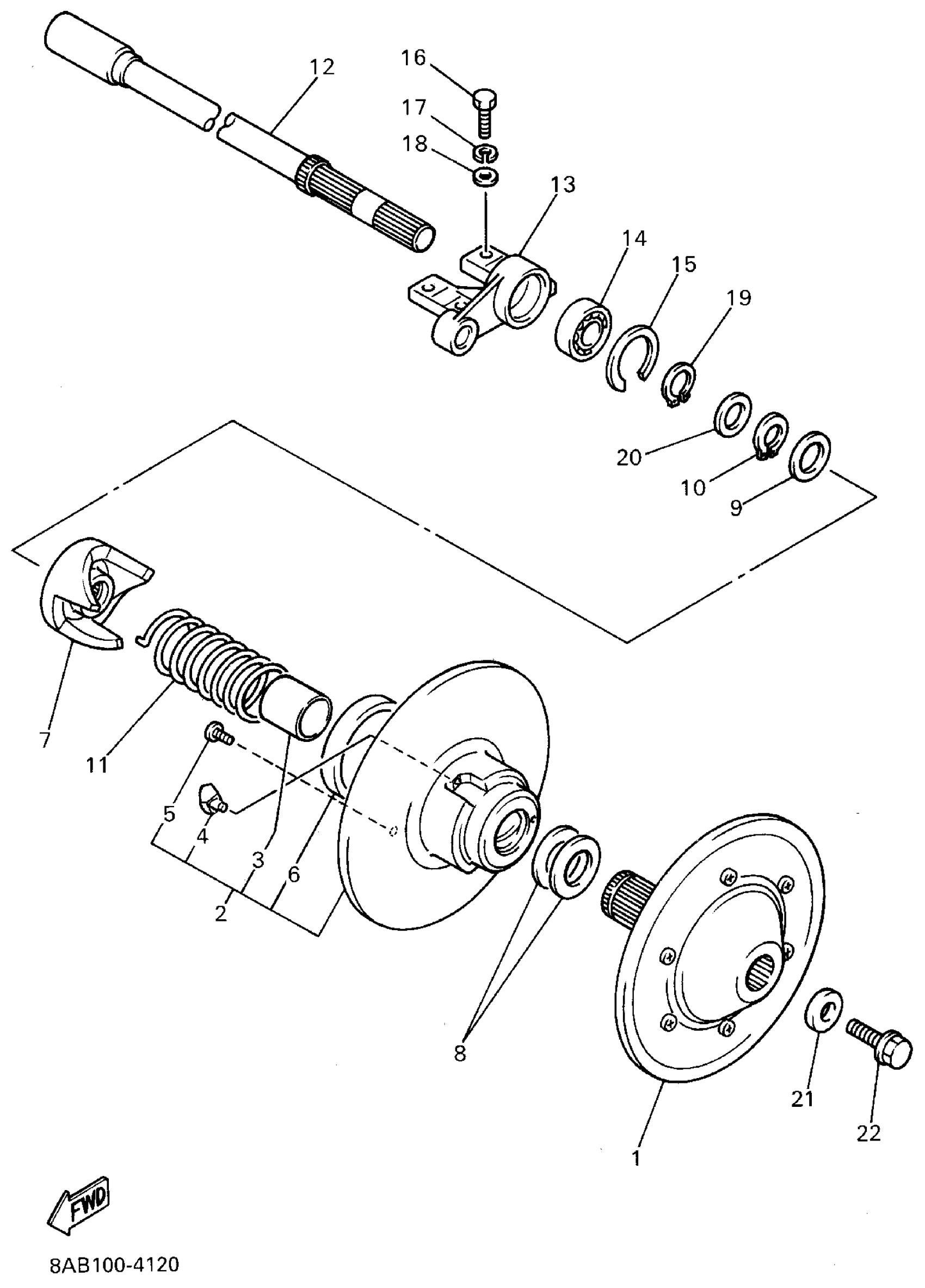

Yamaha VX600U (VMAX 600) 1994 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SECONDARY SLIDING SHEAVE

8AB-17670-00-00

Unavailable

3

BUSH (SMALL) (8CA2)

90384-34246-00

Unavailable

4

SHOE, RAMP

8AV-17688-10-00

$32.99

5

SCREW, BINDING

98907-06016-00

$9.49

6

BUSH (LARGE) (8CA2)

90382-90040-00

Unavailable

7

SEAT, SECONDARY SPRING

8AB-17684-01-00

Unavailable

7

SEAT, SECONDARY SPRING

8AB-17684-20-00

Unavailable

7

SEAT, SECONDARY SPRING

8AB-17684-70-00

Unavailable

8

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

9

WASHER, CLAW(88R)

90214-29060-00

$7.49

10

CIRCLIP(86F)

93440-34170-00

$8.49

11

SPRING, TORSION (8U7)

90508-50571-00

$11.49

12

SECONDARY SHAFT COMP.

8AB-17680-01-00

$314.99

12

SECONDARY SHAFT COMP.

8BB-17680-01-00

Unavailable

13

HOUSING, BEARING

8AB-47631-00-00

Unavailable

14

BEARING(83R)

93306-20582-00

Unavailable

15

CIRCLIP(26H)

99009-52500-00

Unavailable

16

BOLT,HEXAGON

97027-08022-00

Unavailable

17

WASHER(JN5)

92907-08100-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

CIRCLIP (256)

93410-25017-00

Unavailable

20

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

20

WASHER, PLATE (888)

90201-25526-00

Unavailable

20

WASHER, PLATE (888)

90201-25527-00

Unavailable

21

WASHER, PLATE

90201-140A6-00

Unavailable

22

BOLT, WASHER BASED

90105-14175-00

Unavailable
