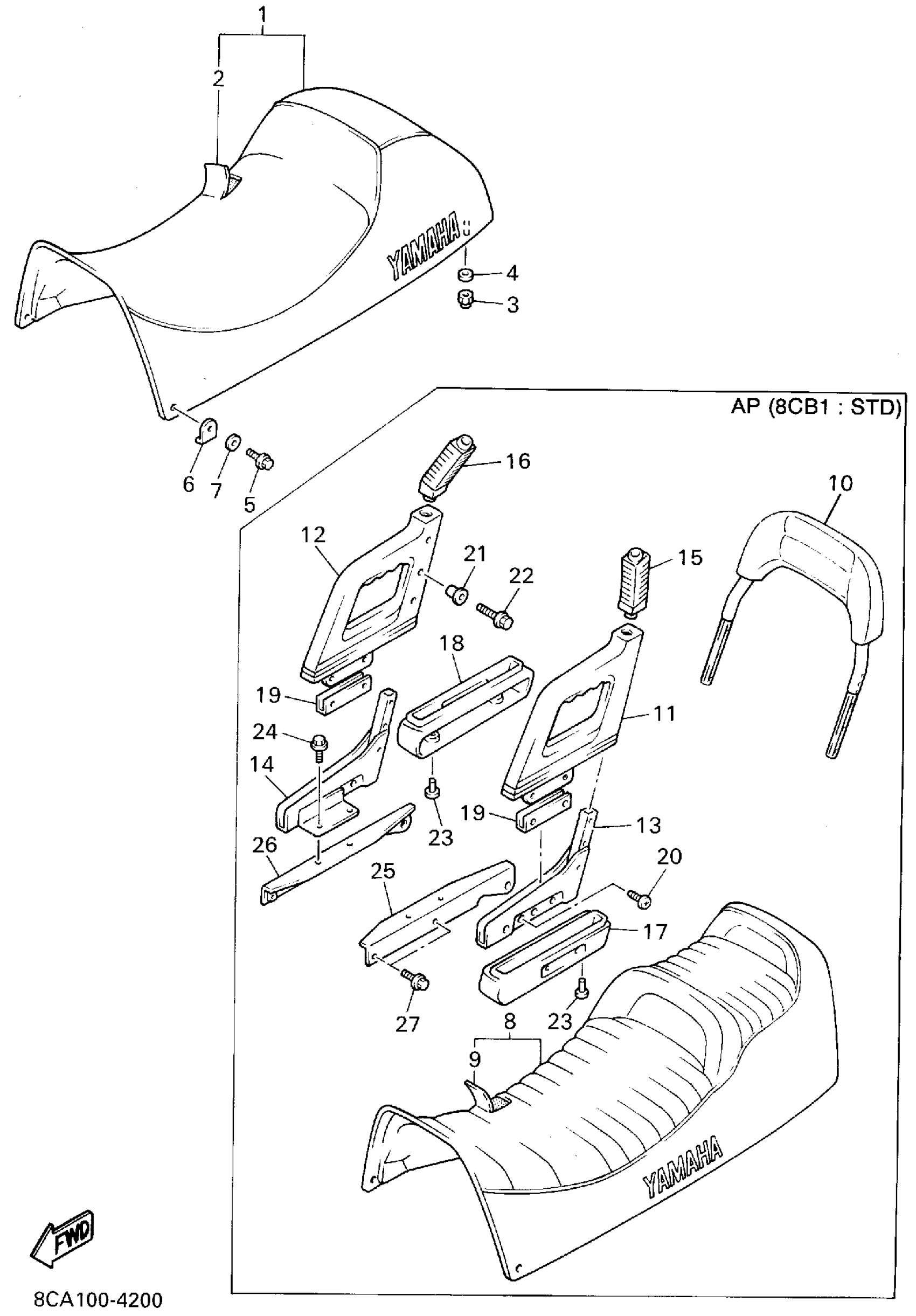

Yamaha VX600U (VMAX 600) 1994 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASY
8AB-24710-10-00
Unavailable
2
COVER,SEAT
8AB-2470F-10-00
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
5
BOLT, SMALL FLANGE
95027-06025-00
$4.16
6
WASHER, CLAW
90214-14068-00
Unavailable
7
WASHER, PLATE(36Y)
90201-063J2-00
$5.60
8
DOUBLE SEAT ASY
8BB-24730-01-00
Unavailable
9
COVER,SEAT
8BB-2470F-01-00
Unavailable
10
SEAT BACK ASSEMBLY
8BB-24790-00-00
Unavailable
11
ASSIST, GRIP
8Y7-2474A-01-00
Unavailable
12
ASSIST, GRIP 2
8Y7-2474W-01-00
Unavailable
13
BRACKET, ASSIST GRIP 1
8BB-2474H-00-00
Unavailable
14
BRACKET, ASSIST GRIP 2
8BB-2474J-00-00
Unavailable
15
PROTECTOR, 1
8Y7-2476U-00-00
Unavailable
16
PROTECTOR, 2
8Y7-2476V-00-00
Unavailable
17
COVER 1
8Y7-24796-01-00
Unavailable
18
COVER, 2
8Y7-2475X-01-00
Unavailable
19
WASHER, SEAT
8Y7-24746-00-00
Unavailable
20
SCREW, BINDING
98907-08016-00
Unavailable
21
COLLAR(88T)
90387-074X6-00
Unavailable
22
BOLT, FLANGE
95817-06025-00
Unavailable
23
RIVET
90269-06001-00
Unavailable
24
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
25
BRACKET, SEAT LEVER 1
8BB-2475H-00-00
Unavailable
26
BRACKET, SEAT LEVER 2
8BB-2475J-00-00
Unavailable
27
BOLT, FLANGE
95817-08012-00
Unavailable
