RADIATOR - HOSE

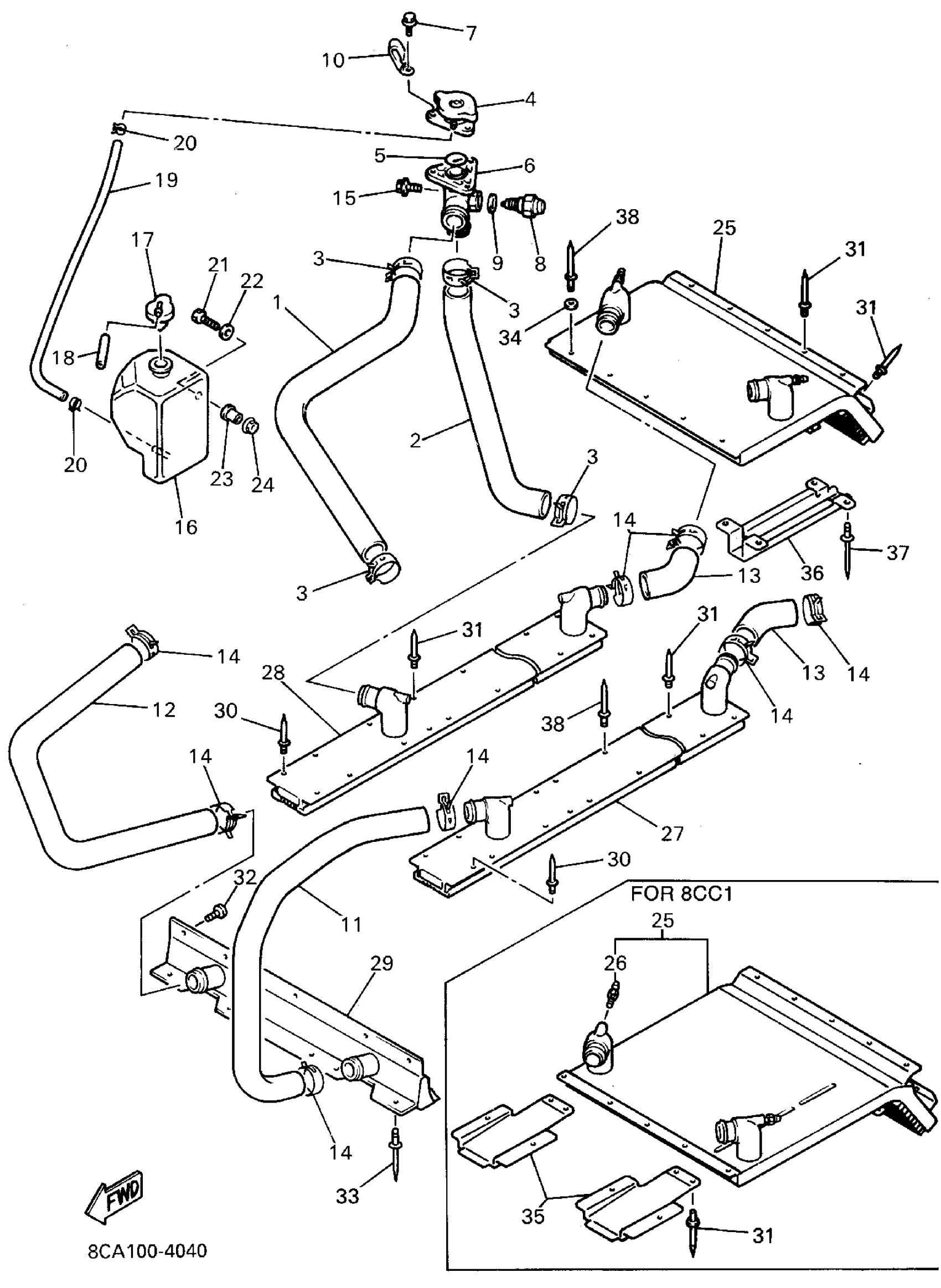

Yamaha VX600U (VMAX 600) 1994 RADIATOR - HOSE Diagram
#
1
PIPE 2
8AB-12482-00-00
Unavailable
2
PIPE 3
8AB-12483-00-00
Unavailable
3
CLIP (8M6)
90467-28046-00
$16.99
4
SUPT, FILLER NECK
1FK-12591-00-00
Unavailable
5
O-RING(1KT)
93210-27778-00
$8.49
6
JOINT, HOSE 1
86M-12581-00-00
Unavailable
7
BOLT, FLANGE
95817-06016-00
$2.75
8
THERMO SWITCH ASSEMBLY
83M-82560-01-00
Unavailable
9
GASKET
90430-16048-00
Unavailable
10
CLAMP(51Y)
90465-08277-00
Unavailable
11
PIPE 4
8AB-12484-00-00
Unavailable
12
PIPE 5
8AB-12485-00-00
Unavailable
13
PIPE 6
82M-12476-00-00
Unavailable
13
PIPE 6
89L-12476-00-00
Unavailable
14
CLIP (8M6)
90467-28046-00
$16.99
15
BOLT, FLANGE
95817-06016-00
$2.75
16
TANK, RECOVERY
8AB-21871-00-00
Unavailable
17
CAP
89A-21815-00-00
Unavailable
18
HOSE (L70)
90445-112E0-00
Unavailable
19
HOSE (L420)
90445-092K1-00
Unavailable
20
CLIP (8A1)
90467-09026-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
COLLAR(3SX)
90387-065X7-00
Unavailable
24
NUT (21W)
90179-06403-00
Unavailable
25
HEAT EXCHANGER ASY
82M-12440-02-00
Unavailable
25
HEAT EXCHANGER ASY
89L-12440-01-00
Unavailable
26
SCREW, BREED
82M-1247H-00-00
Unavailable
27
HEAT EXCHANGER
8AB-1240E-02-00
Unavailable
28
HEAT EXCHANGER
8AB-1240F-02-00
Unavailable
29
HEAT EXCHANGER ASSEMBLY 4
8AB-1241A-00-00
Unavailable
30
RIVET, BLIND(3LC)
90267-48147-00
Unavailable
31
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
31
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
32
SCREW, BINDING
98907-06012-00
Unavailable
33
RIVET, BLIND
90267-48018-00
Unavailable
34
WASHER, PLATE
90201-05023-00
Unavailable
35
PROTECTOR
8BN-12498-01-00
Unavailable
36
PROTECTOR, FRAME
89A-21978-00-00
Unavailable
36
PROTECTOR, FRAME
89L-21978-00-00
Unavailable
37
RIVET, BLIND
90267-48060-00
Unavailable
38
RIVET, BLIND
90267-48126-00
Unavailable
