1994 Yamaha Vmax 600 (VX600U) Primary Sheave Diagram

← All diagrams

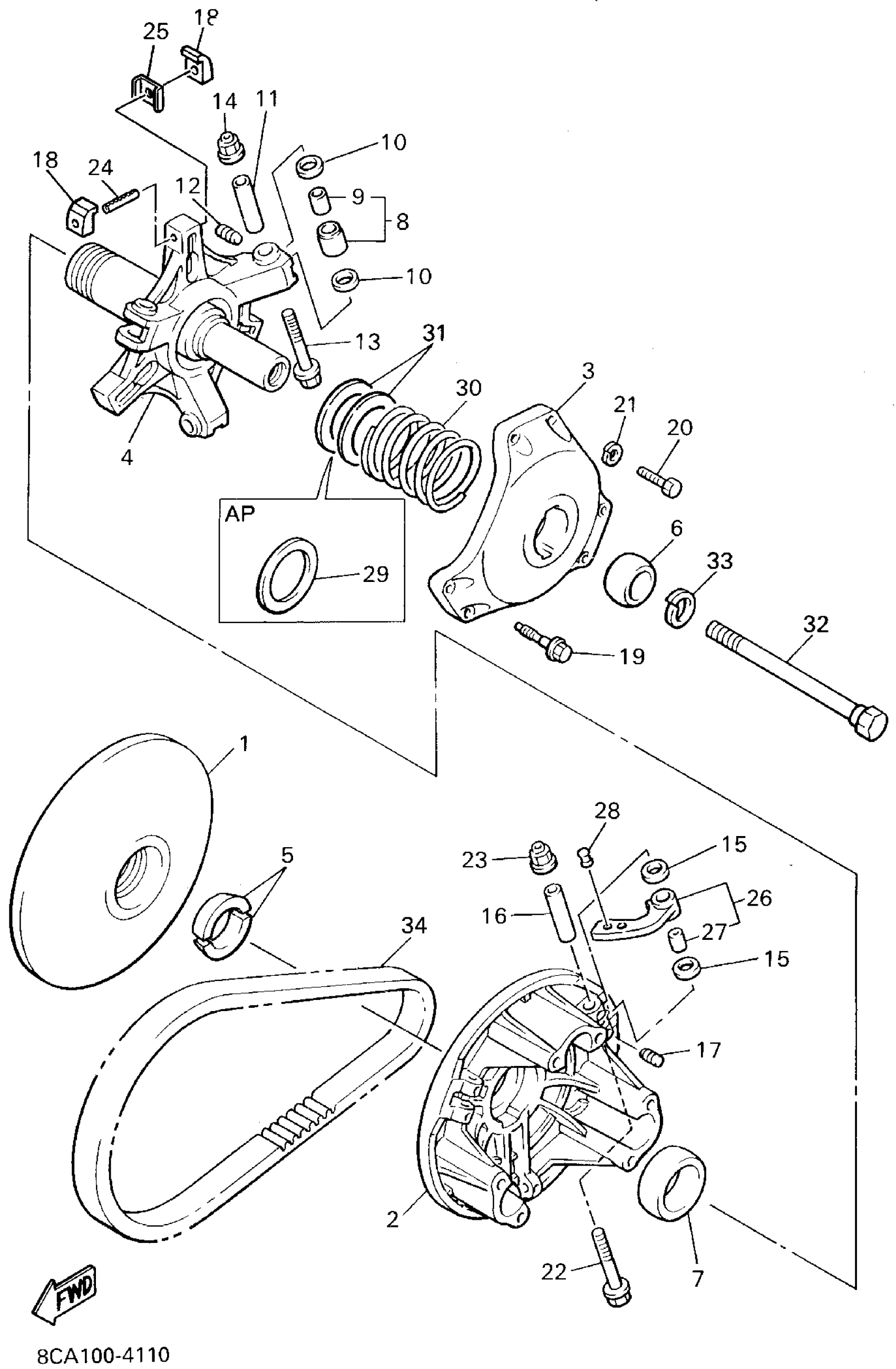

Find the part on the Primary Sheave diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax 600 (VX600U) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE,PRI FIXED

8AX-17611-09-00

1
Out of stock

2

SHEAVE, PRIMARY SLIDING

8AX-17621-01-00

1
Out of stock

3

CAP

88R-17631-01-00

—
Out of stock

4

SPIDER COMPLETE

8BW-17640-11-00

—

$293.52

In stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

BUSH(83R)

90389-28032-00

1

$55.86

In stock

7

BUSH(88R)

90389-41031-00

1

$73.72

In stock

8

ROLLER, COMP

8BH-17624-10-00

1

$57.62

In stock

9

. BUSH, SOLID

90380-08244-00

1
Out of stock

10

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

11

COLLAR

90387-0514T-00

1

$14.86

In stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

14

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

15

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

16

COLLAR

90387-0514T-00

1

$14.86

In stock

17

BOLT, SET

90113-05041-00

1
Out of stock

18

SLIDER

8BW-17653-00-00

—

$13.86

In stock

19

BOLT(89J)

90109-066F4-00

—
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

23

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

24

PIN, SPRING (7F7)

91609-50032-00

—

$3.66

In stock

25

SPACER 1

8BW-17654-20-00

—

$6.78

In stock

26

WEIGHT COMP

8AY-17605-10-00

—
Out of stock

27

. BUSH, SOLID

90380-08244-00

1
Out of stock

28

—

$7.55

In stock

28

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

29

WASHER, PLATE(88S)

90201-483P9-00

—

$11.66

In stock

30

SPRING, COMPRESSION(89L)

90501-521J6-00

—

$37.82

In stock

30

SPRING, COMPRESSION(8AV)

90501-550J8-00

—

$45.37

In stock

30

SPRING, COMPRESSION(88S)

90501-553G0-00

—

$32.34

In stock

30

SPRING, COMPRESSION(8AY)

90501-582J1-00

—

$58.54

In stock

30

SPRING, COMPRESSION(8AY)

90501-602J0-00

—

$38.97

In stock

31

WASHER, PLATE(88S)

90201-483P9-00

—

$11.66

In stock

32

. BOLT (L=1653MM)

88R-17647-00-00

1
Out of stock

33

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

34

V-BELT

89L-17641-02-00

1
Out of stock
