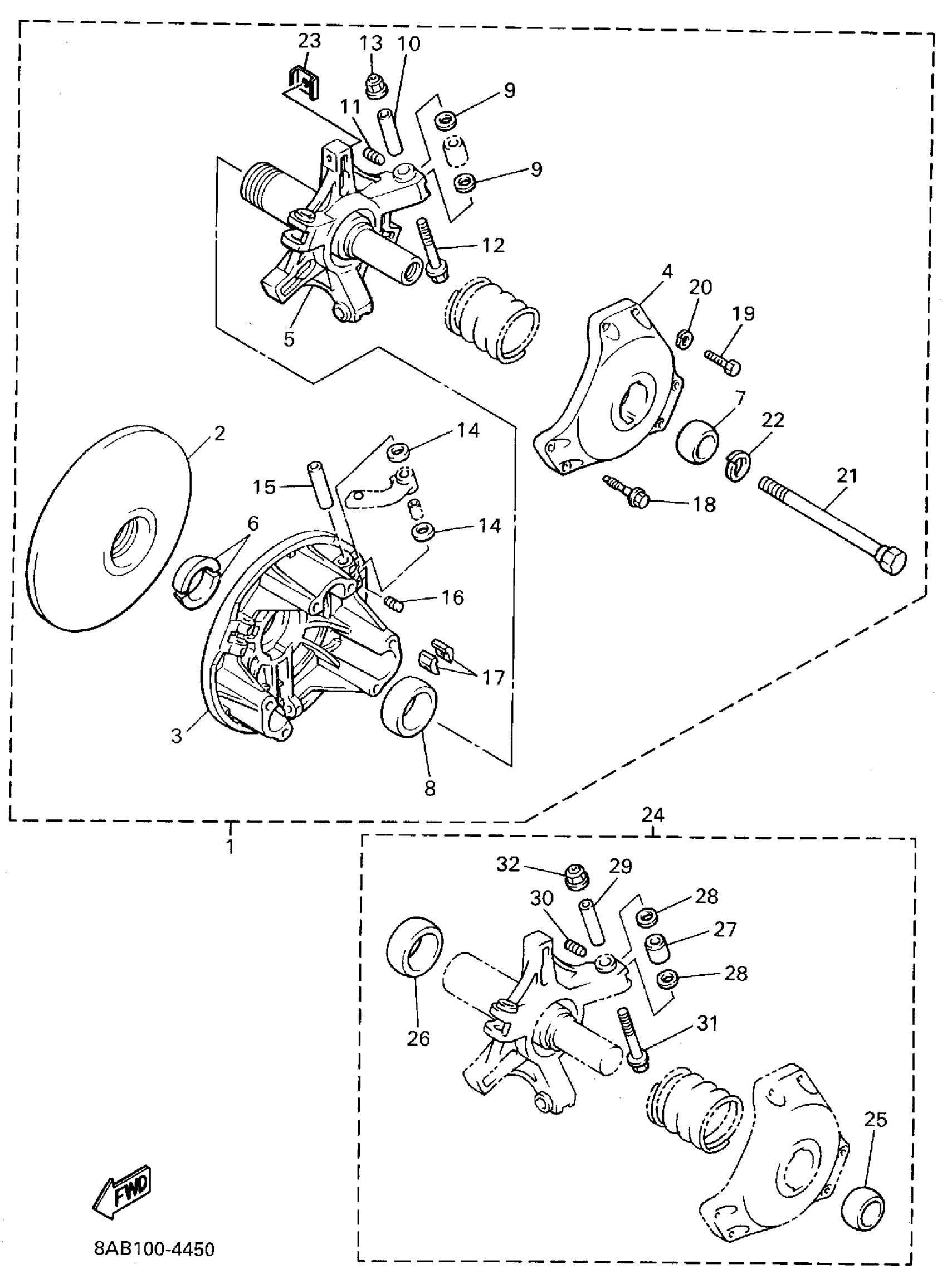

Yamaha VX600U (VMAX 600) 1994 CLUTCH KIT (ALTERNATE) Diagram

#

Description
Price

1

CLUTCH ASY

8BW-17601-19-00

Unavailable

2

SHEAVE,PRI FIXED

8AX-17611-09-00

Unavailable

3

SHEAVE, PRIMARY SLIDING

8AX-17621-01-00

Unavailable

4

CAP

88R-17631-01-00

Unavailable

5

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

6

STOPPER

8V0-17639-00-00

$9.81

7

BUSH(83R)

90389-28032-00

$55.02

8

BUSH(88R)

90389-41031-00

$72.61

9

WASHER, PLATE(88R)

90202-08204-00

$5.49

10

COLLAR

90387-0514T-00

$13.88

11

BOLT, SET

90113-05041-00

$6.22

12

BOLT, WASHER BASED(88R)

90105-05644-00

$1.81

13

NUT, S/L FLANGE

95607-05200-00

$6.39

14

WASHER, PLATE(88R)

90202-08204-00

$5.49

15

COLLAR

90387-0514T-00

$13.88

16

BOLT, SET

90113-05041-00

$6.22

17

SLIDER

8BW-17653-00-00

Unavailable

18

BOLT(89J)

90109-066F4-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.95

21

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

22

WASHER(JN5)

92907-16100-00

Unavailable

23

SPACER 1

8BW-17654-20-00

Unavailable

24

CLUTCH TUNE-UP KIT

8AB-00000-50-00

Unavailable

25

BUSH(83R)

90389-28032-00

$55.02

26

BUSH(88R)

90389-41031-00

$72.61

27

ROLLER, COMP

8BH-17624-10-00

Unavailable

28

WASHER, PLATE(88R)

90202-08204-00

$5.49

29

COLLAR

90387-0514T-00

$13.88

30

BOLT, SET

90113-05041-00

$6.22

31

BOLT, WASHER BASED(88R)

90105-05644-00

$1.81

32

NUT, S/L FLANGE

95607-05200-00

$6.39
