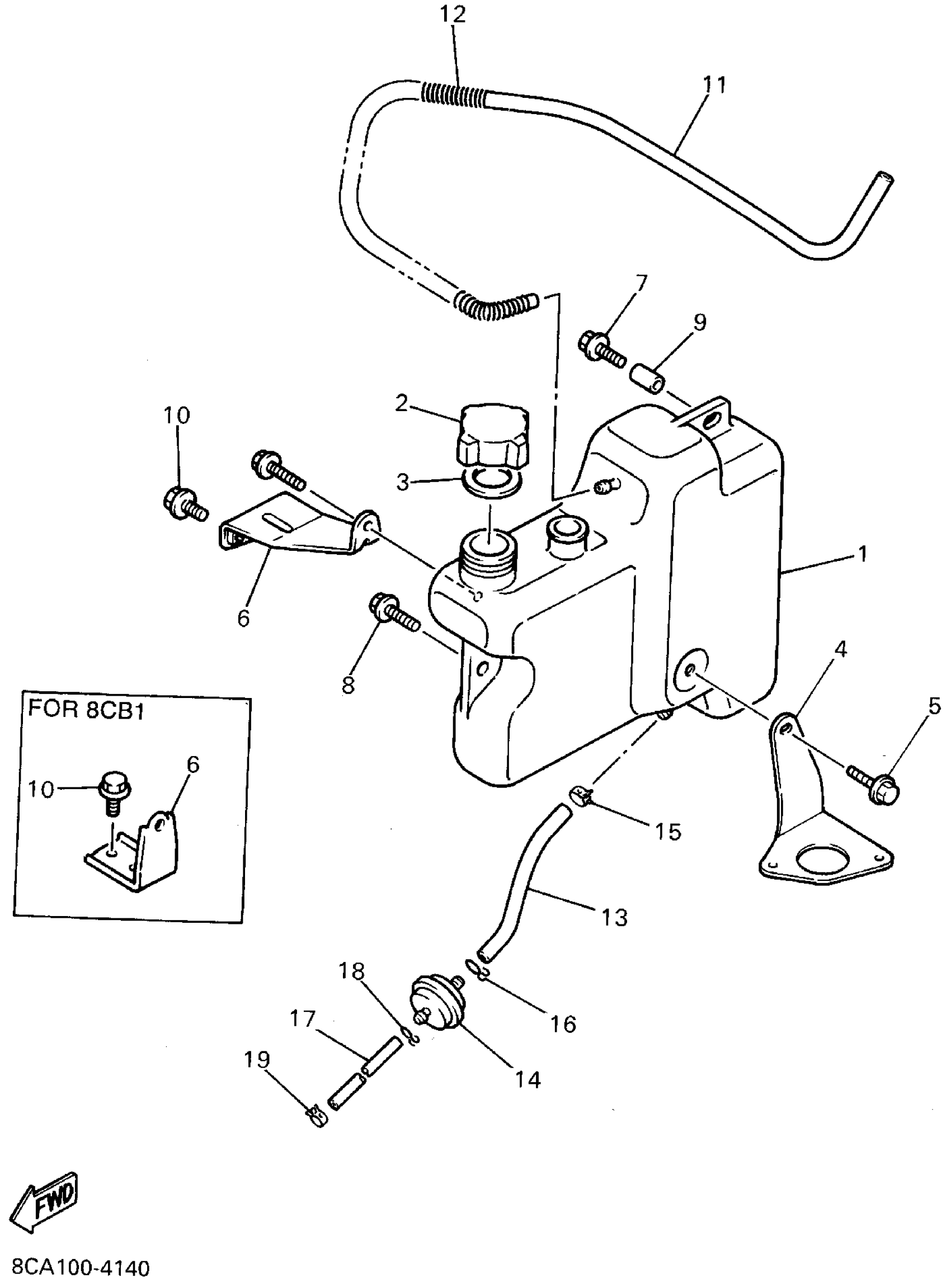

Yamaha VX600U (VMAX 600) 1994 OIL TANK Diagram
#
Description
Price
1
TANK, OIL
8AB-21751-01-00
Unavailable
4
BRACKET, OIL TANK 1
8AB-2193E-00-00
Unavailable
6
BRKT,OIL TANK 2
8AB-2193F-01-00
Unavailable
6
BRACKET, OIL TANK 2
8BB-2193F-00-00
Unavailable
7
BOLT
90109-06757-00
Unavailable
11
TUBE, FLEXIBLE VINYL(8AT)
91A30-05125-00
Unavailable
12
SPRING, COMPRESSION
90501-085G3-00
Unavailable
13
HOSE
91A30-07036-00
Unavailable
14
HOUSING STRAINER ASSY
8G8-13410-00-00
Unavailable
15
CLIP (7K7)
90467-11044-00
Unavailable
16
CLIP (8J7)
90467-11009-00
Unavailable
17
TUBE, FLEXIBLE VINYL(8AK)
91A30-05039-00
Unavailable
18
CLIP (8L2)
90467-08017-00
Unavailable
19
CLIP (8A1)
90467-09026-00
Unavailable
