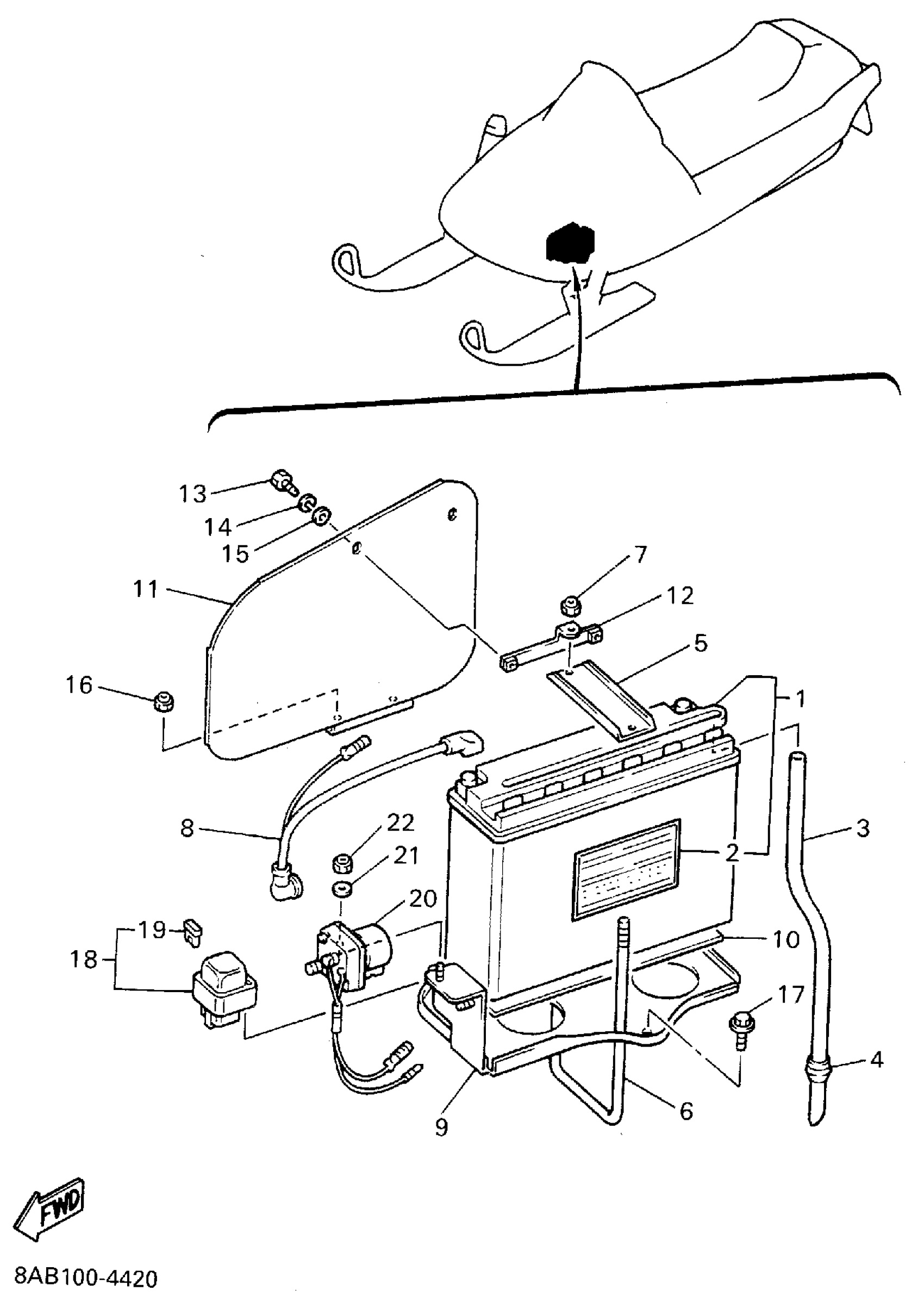

Yamaha VX600U (VMAX 600) 1994 ELECTRICAL 2 (8CB1, 8CF1) (AP FOR 8CA1, 8CC1) Diagram

#

Description
Price

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE

90445-086H3-00

Unavailable

4

GROMMET(3AA)

90480-12497-00

Unavailable

5

. PLATE, BATTERY FITTING

84N-82136-00-00

Unavailable

6

. SCREW, FITTING

84N-82133-00-00

Unavailable

7

NUT, NYLON

95707-06300-00

$3.50

8

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

9

BRACKET, BATTERY

8BB-2199G-00-00

Unavailable

10

SEAT, BATTERY

84N-82122-00-00

$6.99

11

SHIELD, HEAT

84N-2199H-01-00

Unavailable

12

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

13

BOLT (682)

97095-05010-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

WASHER, PLAIN (646)

92990-05600-00

$0.80

16

NUT, U FLANGE

95604-06200-00

Unavailable

17

BOLT, FLANGE

95812-06010-00

Unavailable

18

FUSE HOLDER ASSY

8BE-82150-00-00

Unavailable

19

FUSE (10A)

42X-82151-00-00

Unavailable

20

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, U FLANGE

95604-06200-00

Unavailable
