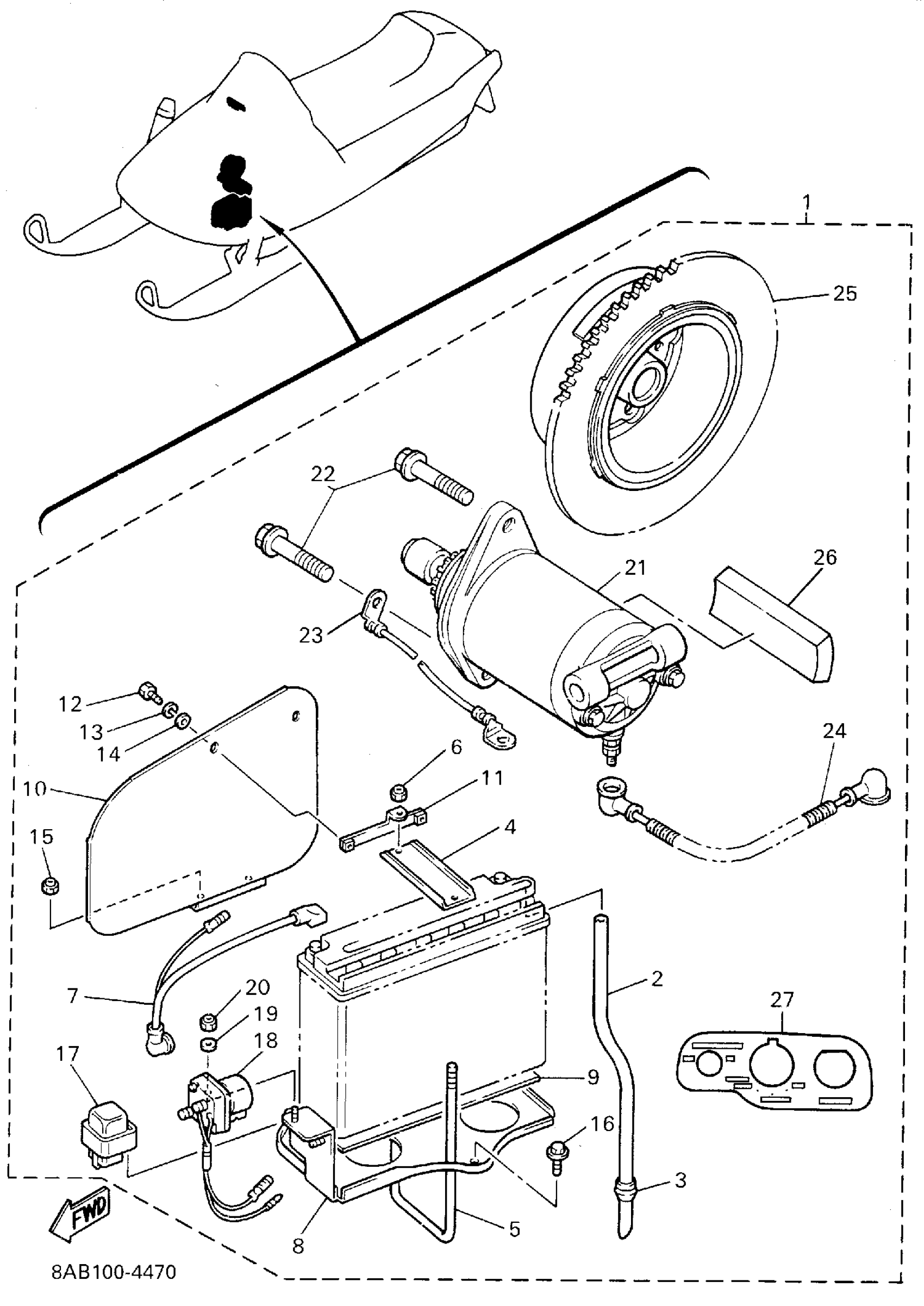

Yamaha VX600U (VMAX 600) 1994 ELECTRIC START KIT (ALTERNATE) Diagram

STARTING MOTOR SET

8CA-W8180-00-00

Unavailable

HOSE

90445-086H3-00

Unavailable

GROMMET(3AA)

90480-12497-00

Unavailable

. PLATE, BATTERY FITTING

84N-82136-00-00

Unavailable

. SCREW, FITTING

84N-82133-00-00

Unavailable

NUT, NYLON

95707-06300-00

$3.50

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

BRACKET, BATTERY

8BB-2199G-00-00

Unavailable

SEAT, BATTERY

84N-82122-00-00

$6.99

SHIELD, HEAT

84N-2199H-01-00

Unavailable

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

BOLT (682)

97095-05010-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

WASHER, PLAIN (646)

92990-05600-00

$0.80

NUT, U FLANGE

95604-06200-00

$8.49

BOLT, FLANGE

95812-06010-00

Unavailable

FUSE HOLDER ASSY

8BE-82150-00-00

Unavailable

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

NUT, U FLANGE

95604-06200-00

$8.49

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

WIRE, MINUS LEAD

8BB-82116-00-00

Unavailable

WIRE,LEAD

8CL-82117-00-00

Unavailable

ROTOR ASSY

8CB-85550-00-00

Unavailable

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

Unavailable

INDICATOR 1

8BB-77741-00-00

Unavailable
