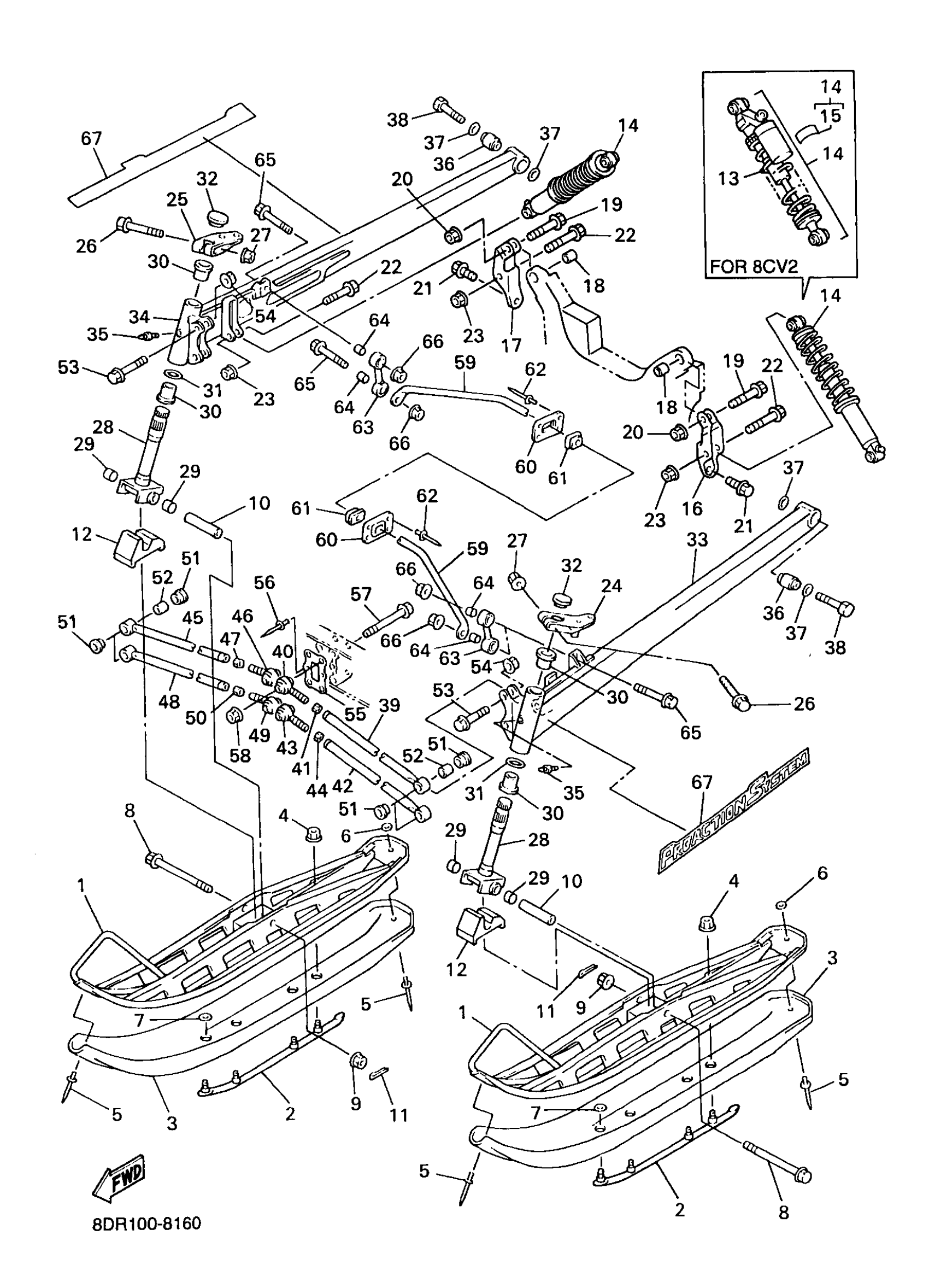

Yamaha VX600SXSB (VMAX 600 SXS (OHLINS FR SHOCKS)) 8CV2 1998 SKI Diagram
#
1
SKI COMP. 1
8CV-23710-00-00
Unavailable
2
RUNNER 1
8CV-23731-00-00
Unavailable
3
RUNNER 2
8CV-23732-00-00
Unavailable
4
NUT, SELF-LOCKING
90185-08169-00
$8.49
5
RIVET, BLIND(8CP)
90267-48184-00
$5.60
6
WASHER, PLATE
90201-04027-00
$3.02
7
WASHER, PLATE
90201-08020-00
$7.49
8
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
9
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
10
COLLAR
90387-1012H-00
$24.99
11
PIN, COTTER
91490-20025-00
$1.99
12
STOPPER 1
8CR-23743-00-00
Unavailable
13
SPRING ASSEMBLY 1
8CV-23760-00-00
Unavailable
14
OHLINS FRONT SHOCK ASSY
8CV-2376A-10-00
Unavailable
14
ABSORBER ASSEMBLY 1
8DR-2376A-00-00
Unavailable
15
LABEL, WARNING
4AA-22259-60-00
Unavailable
16
HOLDER, ABSORBER
8CV-2376J-00-00
Unavailable
17
HOLDER, ABSORBER 2
8CV-2377J-00-00
Unavailable
18
SPACER
8CV-23787-00-00
Unavailable
19
BOLT, FLANGE
95817-10040-00
Unavailable
20
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
21
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
22
BOLT, FLANGE
90105-10030-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
24
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
25
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
26
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
27
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
28
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
29
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
30
BUSH, SOLID
90381-25115-00
Unavailable
31
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
32
CAP 1
8CR-23741-00-00
Unavailable
33
ARM,FRONT 2
8CV-2382E-02-00
Unavailable
34
ARM,FRONT 2
8CV-2382F-02-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
36
DAMPER
8CR-2516A-00-00
Unavailable
37
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
38
BOLT(8CJ)
90101-12046-00
Unavailable
39
ARM,CONTROL 1
8CV-2384E-01-00
Unavailable
40
JOINT 2
8DN-23823-00-00
Unavailable
41
NUT, HEXAGON
95337-12600-00
Unavailable
42
ARM, CONTROL 2
8CV-2384F-00-00
Unavailable
43
JOINT 3
8DN-23832-00-00
Unavailable
44
NUT
95314-14600-00
Unavailable
45
ARM,CONTROL 1
8CV-2384E-01-00
Unavailable
46
JOINT 2
8DN-23823-00-00
Unavailable
47
NUT, HEXAGON
95337-12600-00
Unavailable
48
ARM, CONTROL 2
8CV-2384F-00-00
Unavailable
49
JOINT 3
8DN-23832-00-00
Unavailable
50
NUT
95314-14600-00
Unavailable
51
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
52
COLLAR(8CJ)
90387-1009K-00
Unavailable
53
BOLT, FLANGE
90105-10030-00
Unavailable
54
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
55
WASHER
8DF-23779-00-00
Unavailable
56
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
57
BOLT, FLANGE
90105-124A2-00
Unavailable
58
NUT, U FLANGE
95607-12200-00
Unavailable
59
BAR, STABILIZER FRONT
8CV-2386E-00-00
Unavailable
60
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
61
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
62
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
63
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
64
COLLAR(8V7)
90387-087L3-00
Unavailable
65
BOLT, FLANGE
95817-08040-00
Unavailable
66
NUT, SELF-LOCKING
90185-08169-00
$8.49
67
EMBLEM 15
8CV-77371-10-00
Unavailable
