1996 Yamaha Vmax 600 Mountain MAX (VX600STW) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1996 Yamaha Vmax 600 Mountain MAX (VX600STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

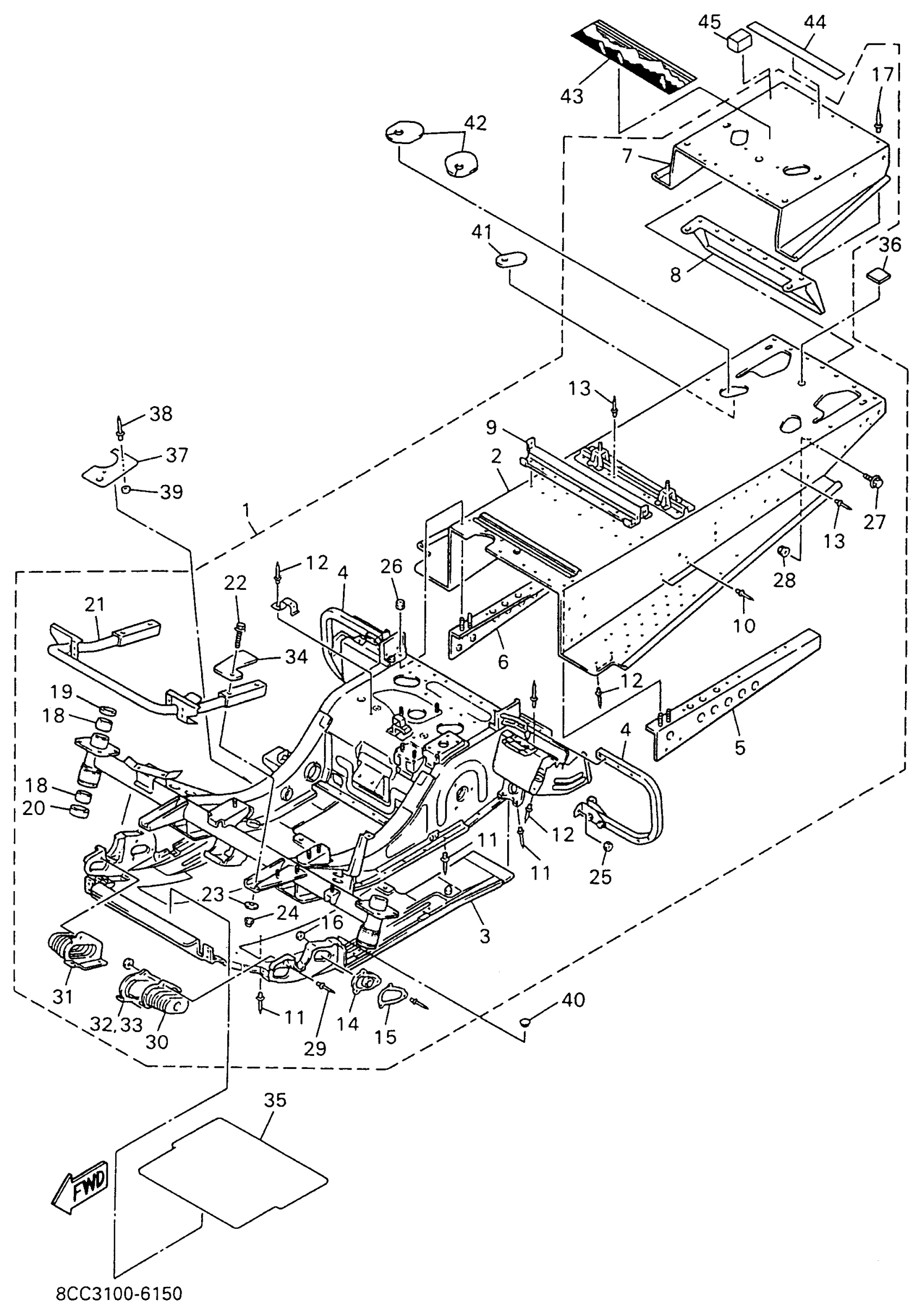

1996 Yamaha Vmax 600 Mountain MAX (VX600STW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BN-21910-20-00

1
Out of stock

2

FRAME PANEL BLACK

89A-21911-20-00

1
Out of stock

3

. PANEL, SUB FRAME 1

8AB-21912-00-00

1
Out of stock

4

. REINFORCEMENT, FOOTREST 1

8AB-21926-00-00

1
Out of stock

5

. PATCH 4

8AB-21964-00-00

1
Out of stock

6

. PATCH 5

8AB-21965-00-00

1
Out of stock

7

. PANEL, SUB FRAME 5

8BN-21916-00-00

1
Out of stock

8

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

9

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

10

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

11

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

12

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

13

RIVET(89R)

90269-04044-00

—
Out of stock

14

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

15

SPACER

8M6-21998-00-00

1

$3.05

In stock

16

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

17

RIVET, BLIND(3JB)

90267-48095-00

—

$2.00

In stock

18

—

$9.68

In stock

19

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

20

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

21

. BUMPER, FRONT 2

8AB-77512-00-00

1
Out of stock

22

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

23

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

24

NUT, NYLON

95717-08300-00

—

$2.57

In stock

25

NUT, NYLON

95707-06300-00

—

$3.20

In stock

26

NUT, NYLON

95717-08300-00

—

$2.57

In stock

27

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

28

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

29

RIVET, BLIND

90267-47197-00

—

$1.91

In stock

30

. COVER 1

8AB-2198F-00-00

1
Out of stock

31

. COVER 2

8AB-2198G-00-00

1
Out of stock

32

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

33

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

34

. COVER 3

8AB-2198J-00-00

1
Out of stock

35

SHIELD, HEAT

8AB-2199H-00-00

1
Out of stock

36

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

37

SHIELD, NOISE

8AB-2199F-00-00

1
Out of stock

38

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

39

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

40

PLUG(2GU)

90338-12192-00

—

$6.18

In stock

41

PATCH 5

82M-21965-00-00

1
Out of stock

42

PATCH 5

88R-21965-00-00

1
Out of stock

43

EMBLEM 1

8BH-77141-00-00

1
Out of stock

44

LABEL, WARNING 2

88X-77762-10-00

—

$23.32

In stock

45

SPACER

8BN-21998-00-00

1
Out of stock
