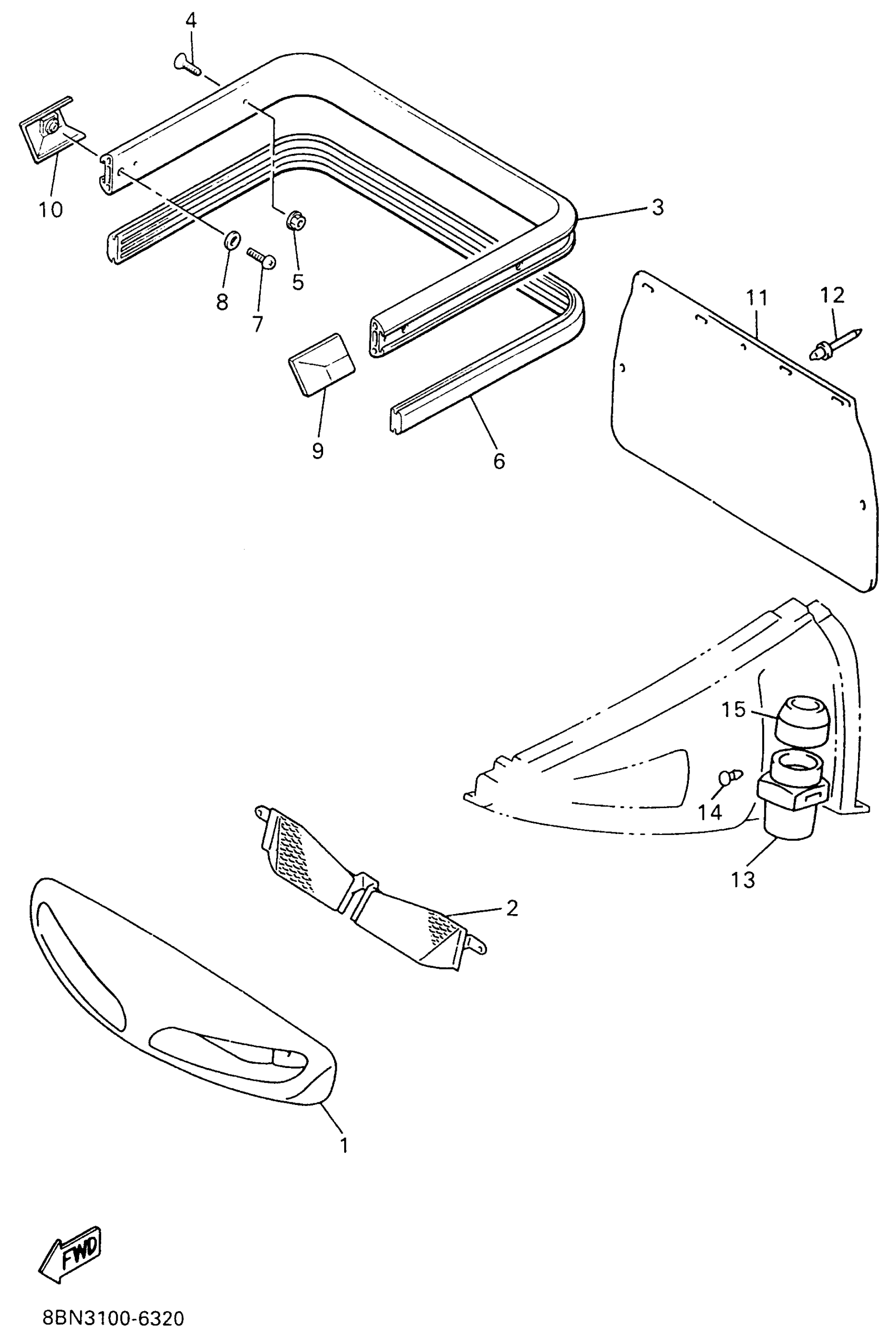

Find the part on the Bumper diagram for your 1996 Yamaha Vmax 600 Mountain Max (VX600STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 Mountain Max (VX600STW) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8AB-77511-00-00

1
Out of stock

2

STAY 4

8AX-77128-00-00

1
Out of stock

3

BUMPER, REAR 1

8BX-77541-00-00

1
Out of stock

4

SCREW,FLAT

98707-08025-00

1
Out of stock

5

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

6

BUSH, RUBBER 2

89L-77516-00-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

9

END, BUMPER

8N8-77523-00-00

1
Out of stock

10

END, BUMPER

8N8-77524-00-00

1
Out of stock

11

FLAP

8V9-77595-00-00

1
Out of stock

12

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

13

PROTECTOR 1

82M-77551-00-00

1
Out of stock

14

RIVET (8M6)

90269-04025-00

1
Out of stock

15

PROTECTOR 4

82M-77554-01-00

—
Out of stock
