1996 Yamaha Vmax 600 Mountain Max (VX600STW) Electrical 2 Diagram

← All diagrams

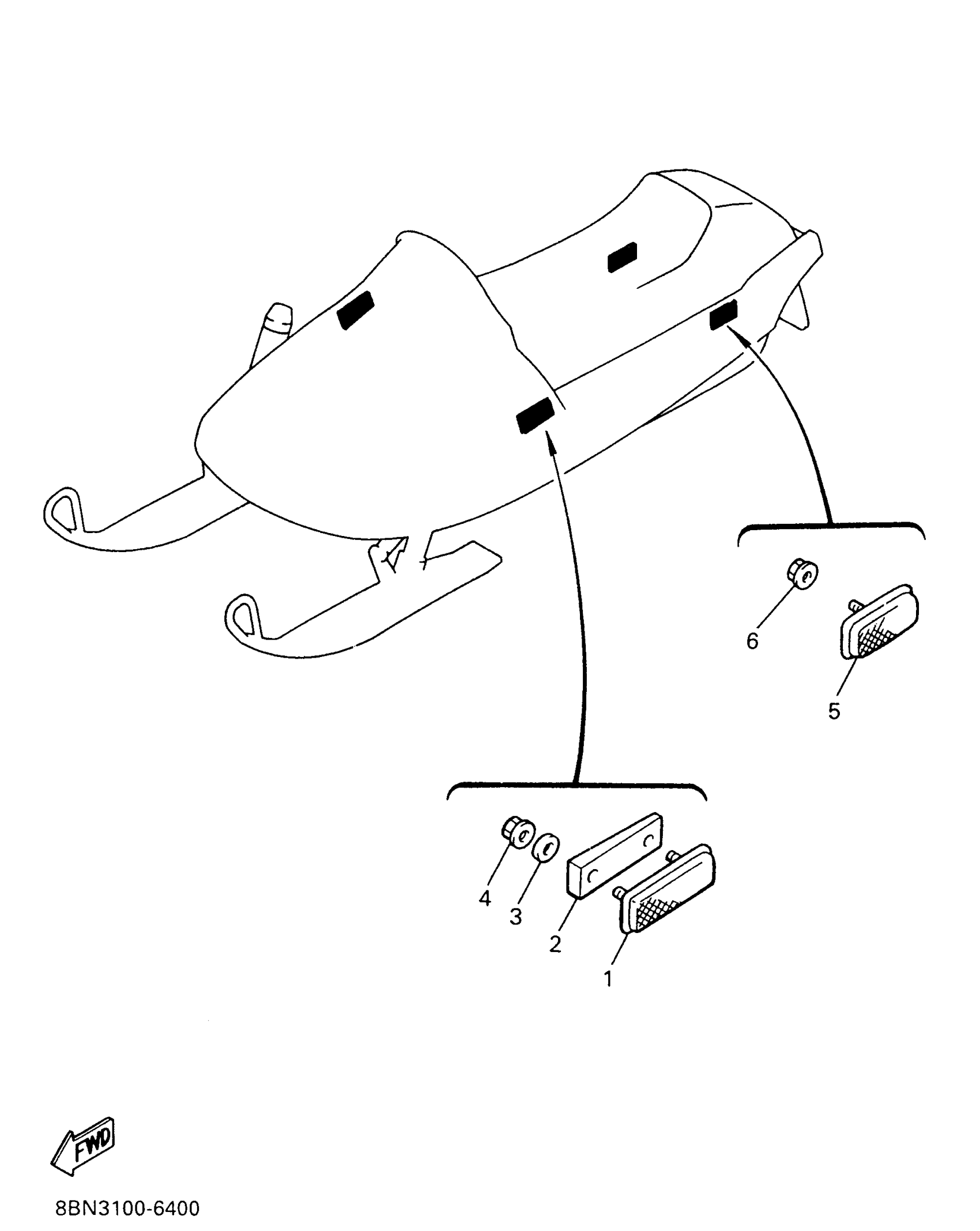

Find the part on the Electrical 2 diagram for your 1996 Yamaha Vmax 600 Mountain Max (VX600STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 Mountain Max (VX600STW) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

2

BASE, REFLECTOR

80F-85115-00-00

1
Out of stock

3

WASHER(1RW)

92907-05600-00

1
Out of stock

4

NUT, NYLON

95707-05300-00

1

$2.74

In stock

5

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

6

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
