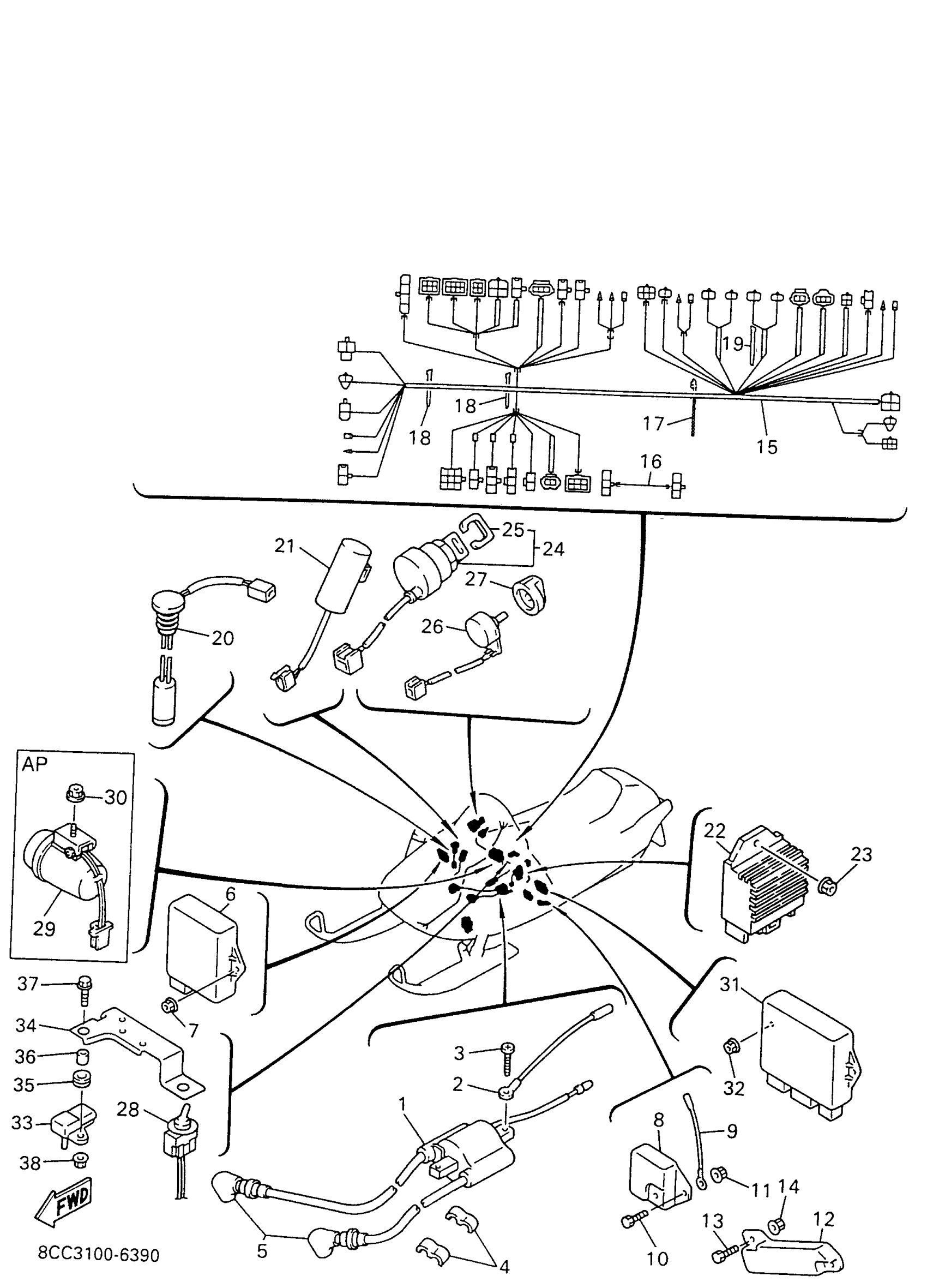

Yamaha VX600STW (VMAX 600 MOUNTAIN MAX) 1996 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSY
8CA-85540-10-00
Unavailable
7
NUT, FLANGE(4MV)
95707-06500-00
$1.23
8
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
9
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
10
BOLT(8CP)
97017-06014-00
$8.49
11
NUT, FLANGE(4MV)
95707-06500-00
$1.23
12
RECTIFIER & REGULAT0R ASSY
1JK-81960-A1-00
Unavailable
13
BOLT(8CP)
97017-06014-00
$8.49
14
NUT, FLANGE(4MV)
95707-06500-00
$1.23
15
WIRE HARNESS ASSEMBLY
8CC-82590-00-00
Unavailable
16
WIRE, LEAD
8AB-8471G-00-00
Unavailable
17
CLAMP
90464-20031-00
Unavailable
18
BAND
341-26397-01-00
Unavailable
19
BAND, SWITCH CORD
437-83936-11-00
Unavailable
20
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
21
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
22
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
23
BOLT, FLANGE
95817-06016-00
Unavailable
24
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
25
CAP, KEY
526-82579-00-00
Unavailable
26
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
27
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
28
FUEL SWITCH COMP
8CC-8399Y-00-00
Unavailable
29
BUZZER
8CL-83383-00-00
Unavailable
30
NUT,SELF-LOCKING
95607-06200-00
Unavailable
31
ELECTRONIC CONTROL UNIT ASSEMBLY
8CC-85940-00-00
Unavailable
32
NUT, FLANGE(4MV)
95707-06500-00
$1.23
33
SENSOR, PRESSURE
8CC-82380-00-00
Unavailable
34
BRACKET 14
8CC-23899-00-00
Unavailable
35
GROMMET (1E5)
90480-13163-00
Unavailable
36
COLLAR(47X)
90387-060G7-00
Unavailable
37
BOLT, FLANGE
95817-06020-00
Unavailable
38
NUT, FLANGE(4MV)
95707-06500-00
$1.23
