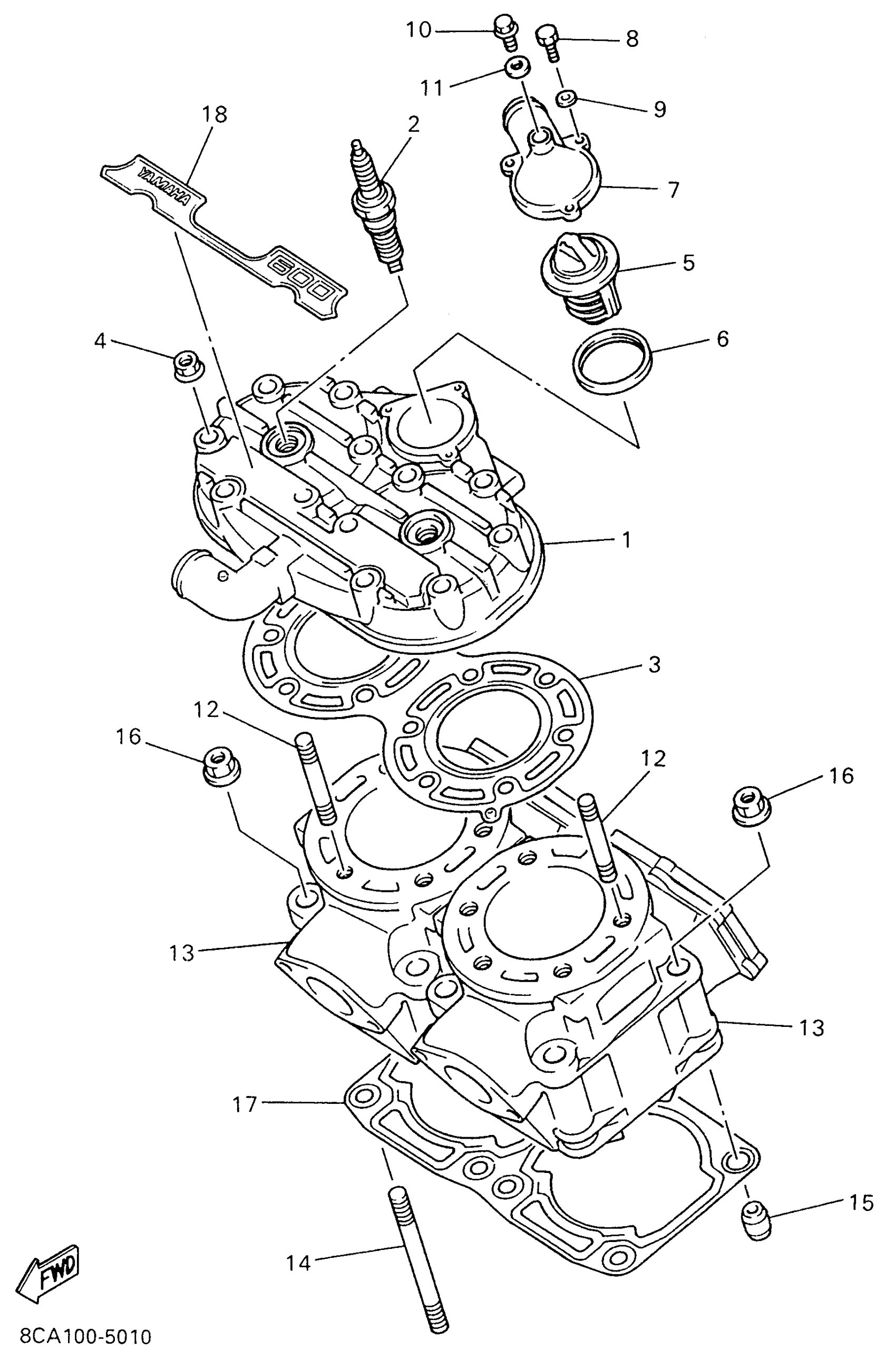

Yamaha VX600STW (VMAX 600 MOUNTAIN MAX) 1996 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

8CA-11111-00-00

Unavailable

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

GASKET, CYLINDER HEAD 1

8CC-11181-00-00

Unavailable

NUT, FLANGE(JN5)

95707-08500-00

$3.13

THERMOSTAT

82M-12411-00-00

$75.99

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

$2.72

BOLT, FLANGE

95817-06012-00

$1.43

GASKET (4V2)

90430-06166-00

$3.76

BOLT, STUD

90116-08391-00

Unavailable

CYLINDER 1

8CA-11311-00-00

Unavailable

BOLT, STUD(8AB)

90116-10574-00

$13.99

PIN, DOWEL

99530-14016-00

$3.80

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

GASKET, CYLINDER

8CR-11351-00-00

Unavailable

EMBLEM

8CA-1111K-00-00

Unavailable
