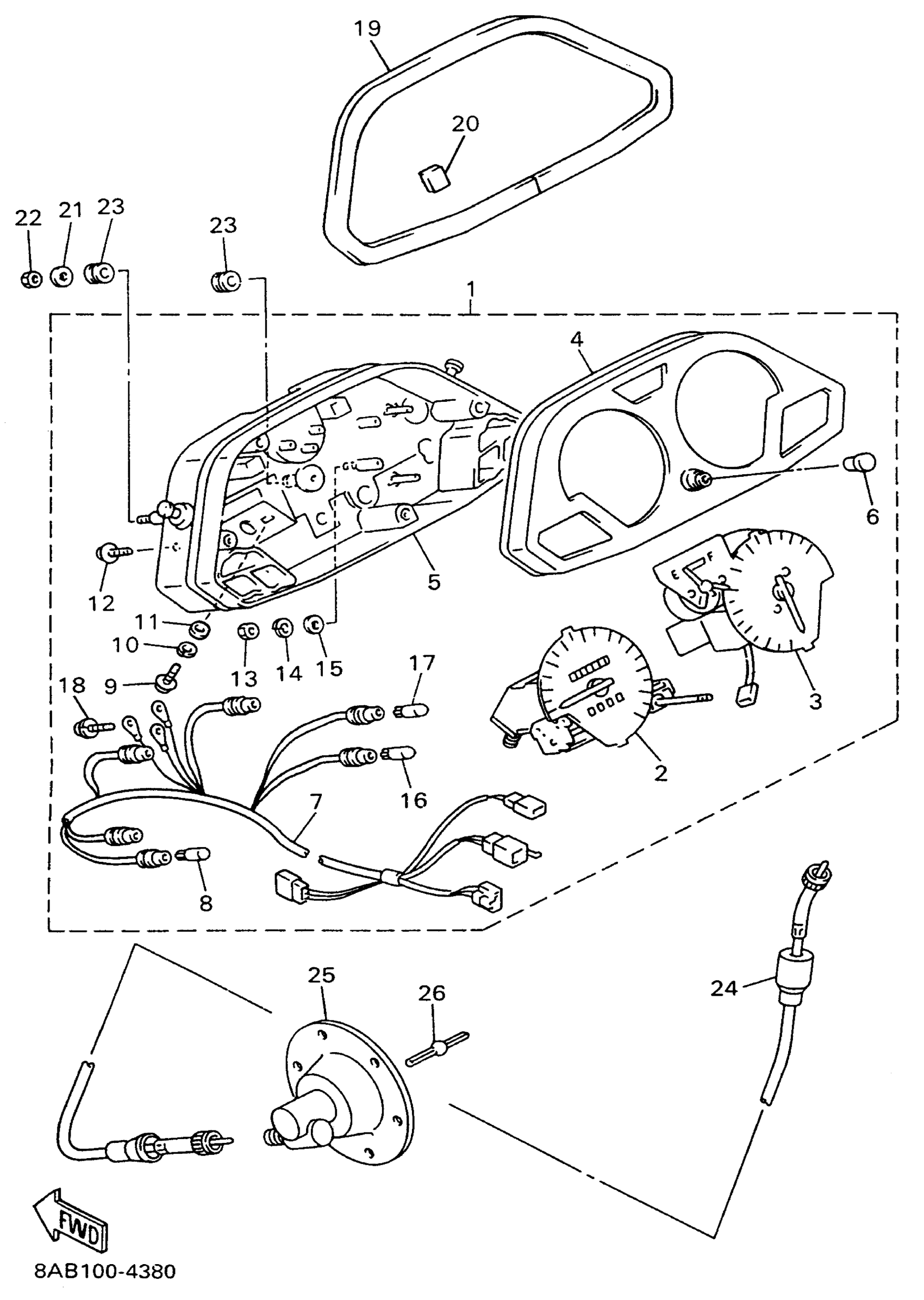

Find the part on the Meter diagram for your 1996 Yamaha Vmax 600 Le (Elec Start (VX600EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 Le (Elec Start (VX600EW) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

89A-83500-42-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

TACHOMETER ASSY

89A-83540-42-00

1
Out of stock

4

COVER,METER

88R-83559-20-00

1
Out of stock

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—
Out of stock

7

. SOCKET CORD ASSEMBLY

89A-83509-40-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD

98517-04012-00

1
Out of stock

10

WASHER(6TA)

92907-04100-00

1
Out of stock

11

WASHER(JF2)

92907-04600-00

1
Out of stock

12

SCREW, TRUSS TAP.

97707-40014-00

—
Out of stock

13

NUT(6TA)

95307-04600-00

1
Out of stock

14

WASHER(6TA)

92907-04100-00

1
Out of stock

15

WASHER(JF2)

92907-04600-00

1
Out of stock

16

BULB (6V 3W)

4N0-83516-00-00

—
Out of stock

17

BULB (12V-1.7W)

3GM-83517-00-00

—
Out of stock

18

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

19

TRIM 5

89A-77225-00-00

1
Out of stock

20

DAMPER 1

89A-77198-00-00

1
Out of stock

21

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

22

NUT(6TA)

95317-06600-00

—
Out of stock

23

DAMPER

5J0-83513-00-00

—
Out of stock

24

SPEEDOMETER CABLE ASSEMBLY

8AB-83550-00-00

1
Out of stock

25

METER GEAR HOUSING COMP

83R-47700-00-00

—
Out of stock

26

JOINT

8K4-47715-00-00

—
Out of stock
