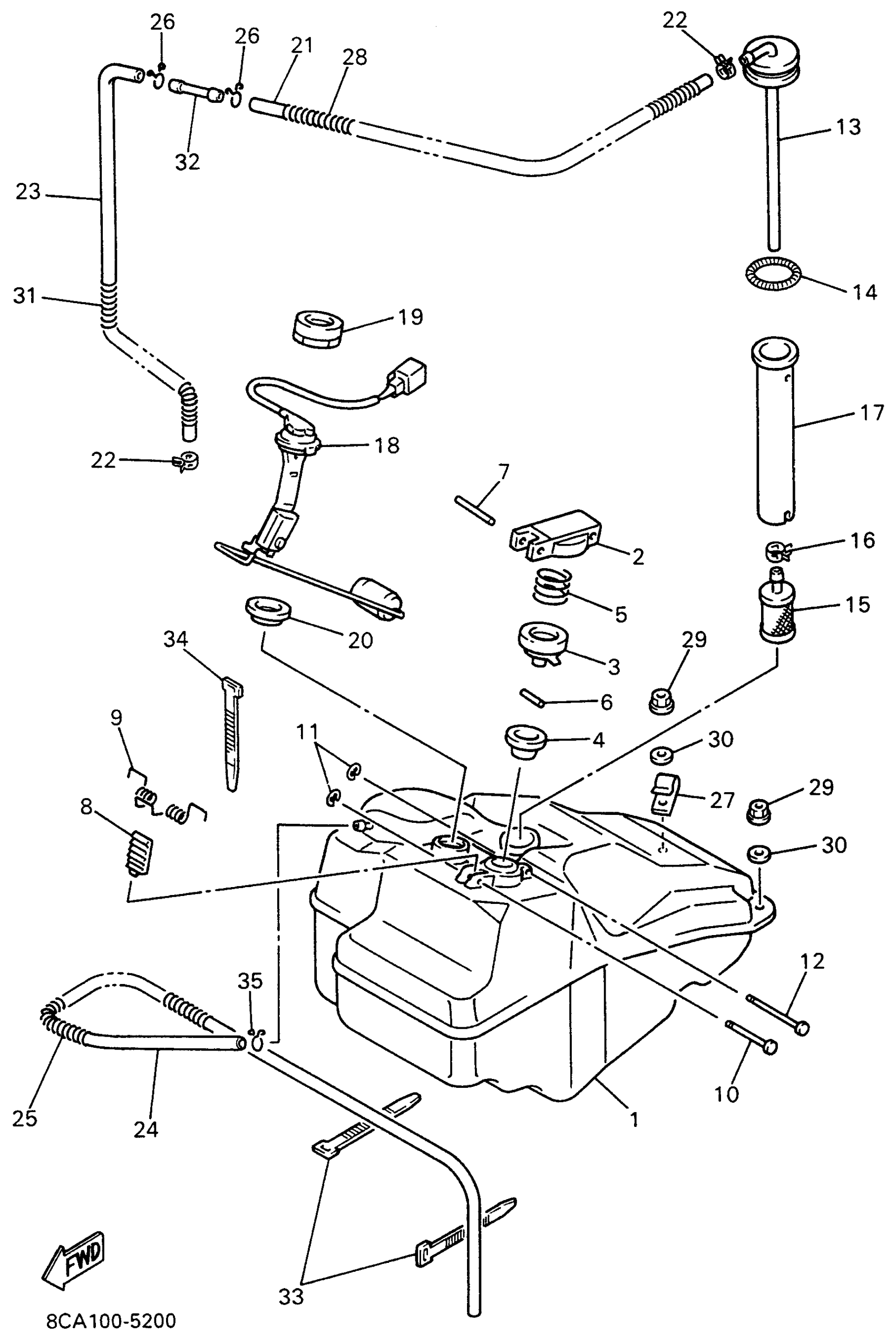

Yamaha VX600EW (VMAX 600 LE (ELEC START)) 1996 FUEL TANK Diagram
#
1
FUEL TANK
89A-24111-01-00
Unavailable
2
BODY, CAP
8W6-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
6
PIN, SPRING
91690-30016-00
Unavailable
7
PIN, SPRING (8W6)
91609-25050-00
$0.90
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION(81E)
90508-10715-00
Unavailable
10
PIN (813)
90249-03017-00
$7.49
11
CIRCLIP (604)
93430-02001-00
$8.49
12
PIN (8W6)
90249-03175-00
Unavailable
13
PIPE, SUCTION 1
8AB-24335-00-00
Unavailable
14
SPRING, TENSION (8R4)
90506-06261-00
$9.49
15
FILTER ASSY
8H5-24560-00-00
Unavailable
16
CLIP (7K7)
90467-11044-00
Unavailable
17
PIPE, SUCTION 2
89A-24336-00-00
Unavailable
18
SNDR UT ASY,F/MTR
89A-85752-01-00
Unavailable
19
HOUSING, FUEL METER
53L-24261-00-00
Unavailable
20
GASKET, SENDER UNIT
53L-85753-00-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AK)
91A20-07039-00
Unavailable
22
CLIP (7K7)
90467-11044-00
Unavailable
23
TUBE, FLEXIBLE VINYL(8AK)
91A20-07039-00
Unavailable
24
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
25
SPRING, COMPRESSION
90501-085G3-00
Unavailable
26
CLIP (8J7)
90467-11009-00
Unavailable
27
CLAMP (706)
90465-06100-00
Unavailable
28
PROTECTOR, PIPE
8F3-24327-00-00
Unavailable
29
NUT, NYLON
95717-08300-00
Unavailable
30
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
31
. PROTECTOR, PIPE
85L-24327-00-00
Unavailable
32
PIPE, JOINT 4
878-24379-00-00
Unavailable
33
BAND
341-26397-01-00
Unavailable
34
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
35
CLIP (8L2)
90467-08017-00
Unavailable
