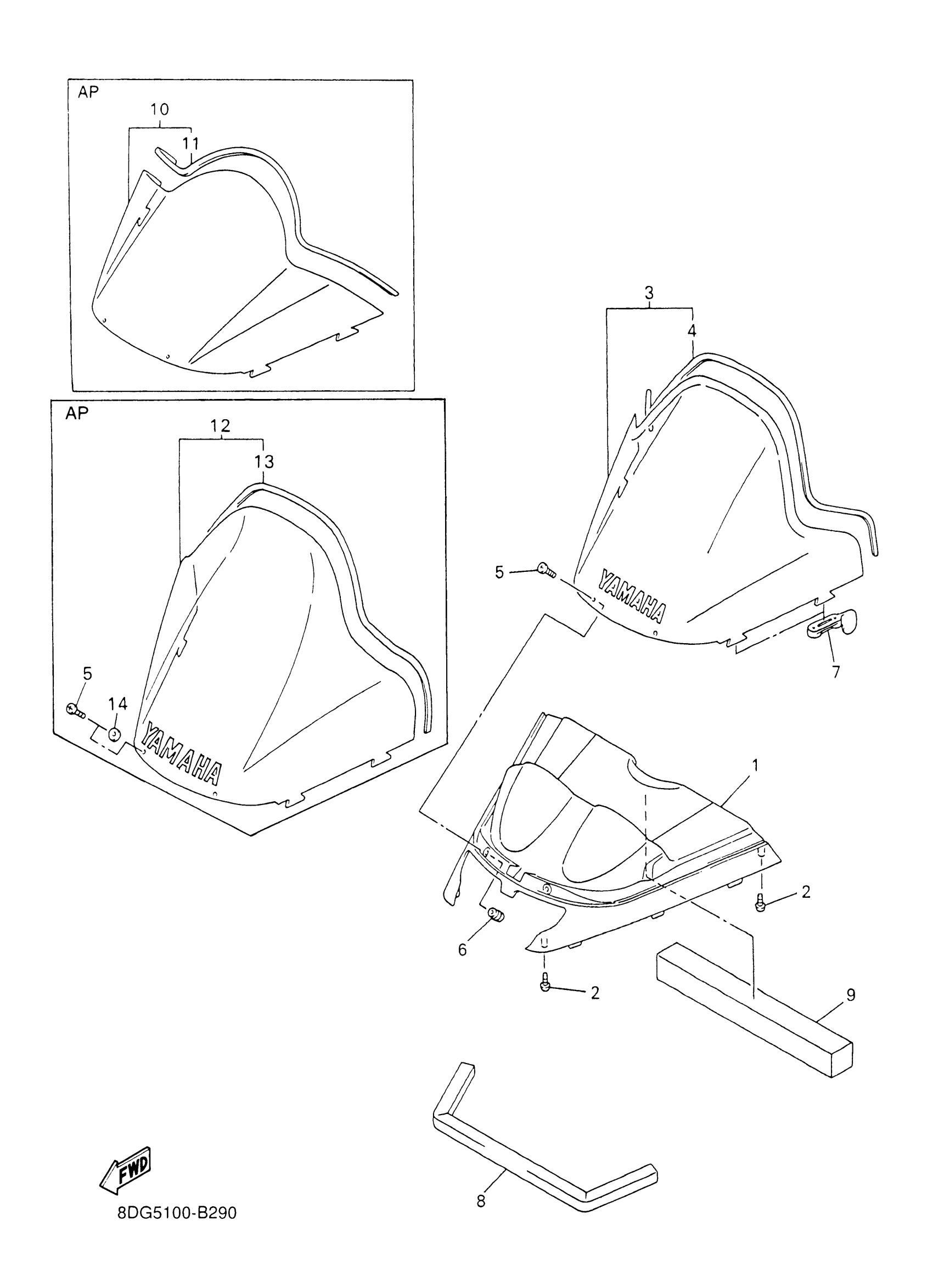

Yamaha VX600ERH (VMAX 600ER) 8DG5 2003 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8DN-77251-20-00

Unavailable

2

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

3

WINDSHIELD COMP.

8DS-77210-10-00

Unavailable

4

TRIM,UPPER

87K-77213-00-00

Unavailable

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

6

NUT(1KT)

90179-05523-00

$8.49

7

FASTNER

82H-77223-00-00

$9.99

8

DAMPER, NOISE 19

8CR-77279-00-00

Unavailable

9

SHIELD, NOISE 2

8CR-2199J-00-00

$59.99

10

WINDSHIELD COMP.

8DN-77210-20-00

Unavailable

11

TRIM,UPPER

87K-77213-00-00

Unavailable

12

WINDSHIELD COMP.

8DY-77210-10-00

Unavailable

13

TRIM, UPPER

8DM-77213-00-00

Unavailable

14

WASHER, PLATE(56J)

90201-106H5-00

$10.49
