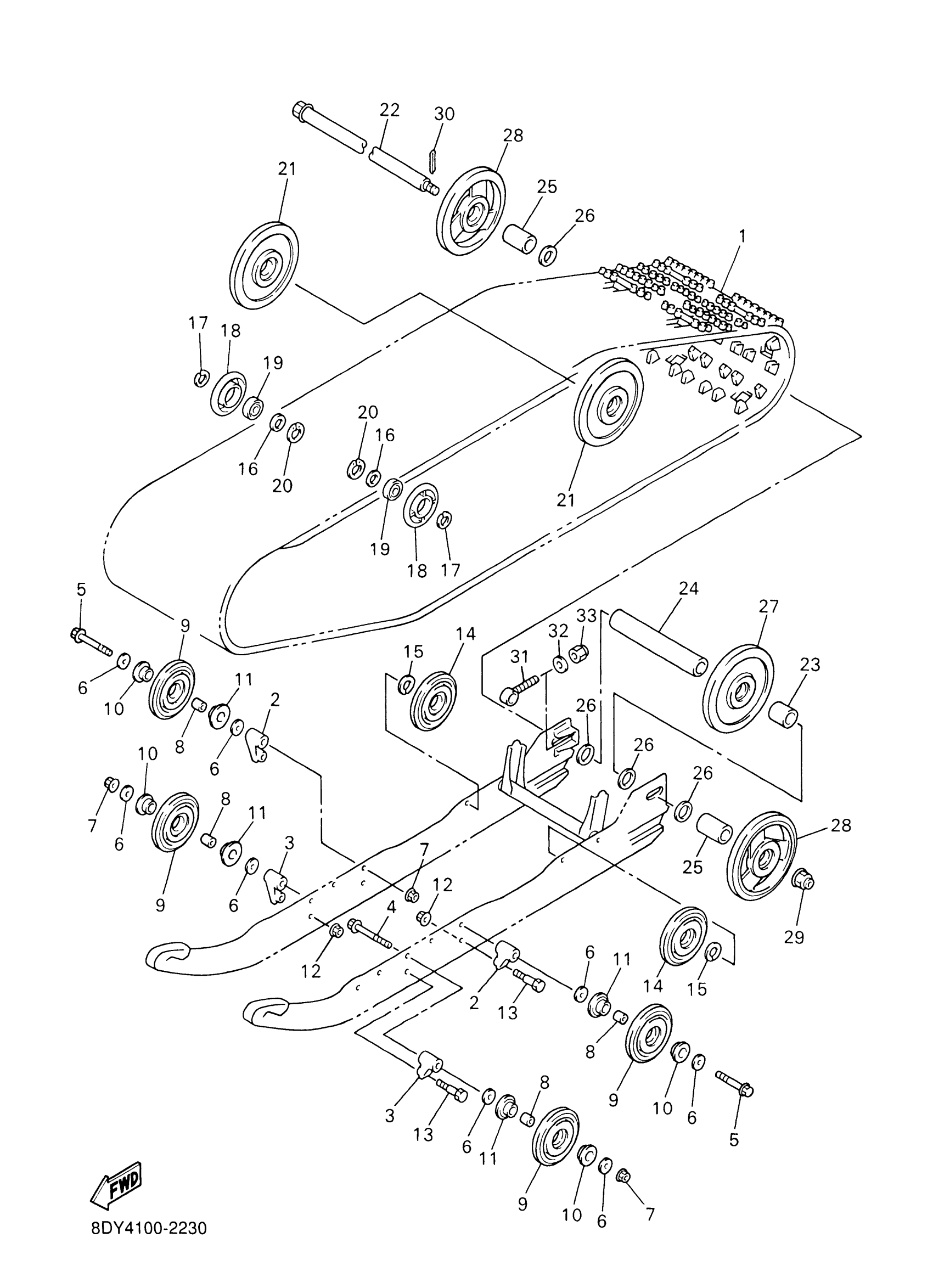

Yamaha VX600ERH (VMAX 600ER) 8DG5 2003 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

1'' HACKSAW TRACK

SMA-TRACK-90-09

Unavailable

2

BRACKET 7

8DF-47419-00-00

$29.99

3

BRACKET 7

8DF-47419-10-00

Unavailable

4

BOLT, WASHER BASED(59V)

90105-10392-00

$11.49

5

BOLT, FLANGE

95817-10085-00

Unavailable

6

WASHER, PLATE(8CM)

90201-100S0-00

$5.60

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

8

COLLAR

90387-10079-00

Unavailable

9

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

10

SPACER

8CR-47341-01-00

Unavailable

11

SPACER

8CR-47341-11-00

$10.99

12

NUT, SELF-LOCKING

90185-08169-00

$8.49

13

BOLT(8CM)

90101-08774-00

$7.49

14

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

15

CIRCLIP(JF7)

99009-25400-00

$8.49

16

COLLAR(8AB)

90387-2004V-00

Unavailable

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

19

BEARING(8AB)

93306-00444-00

Unavailable

20

CIRCLIP(5U8)

99009-42500-00

Unavailable

21

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

22

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

23

COLLAR

90387-2012E-00

Unavailable

24

COLLAR

90387-2012C-00

Unavailable

25

COLLAR

90387-2012D-00

Unavailable

26

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

27

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

28

WHEEL SILVER PLASTIC ASSY

8DF-47550-01-SL

Unavailable

29

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

30

PIN, COTTER

91401-30025-00

Unavailable

31

COLLAR 3

8DM-47479-00-00

Unavailable

32

WASHER(6TA)

92907-10600-00

Unavailable

33

NUT, NYLON

95707-10300-00

Unavailable
