1996 Yamaha Vmax 600 DX (VX600DXW) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1996 Yamaha Vmax 600 DX (VX600DXW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

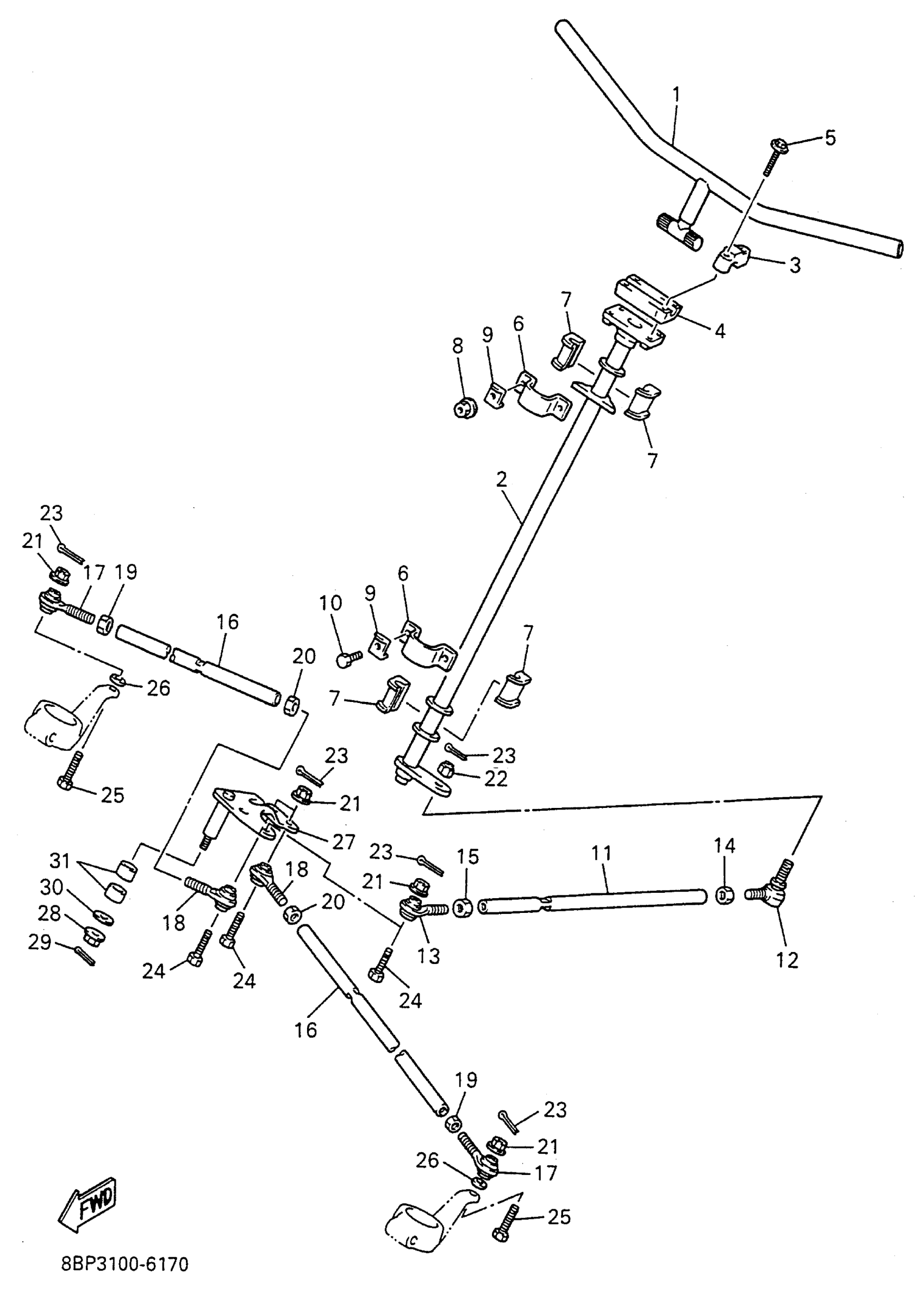

1996 Yamaha Vmax 600 DX (VX600DXW) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN,STEERING

8AB-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8AB-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, FLANGE

95817-08055-00

1
Out of stock

6

BRACKET, STEERING LOWER

84M-23868-00-00

—
Out of stock

7

BEARING, STEERING

8F3-23812-00-00

1
Out of stock

8

NUT, NYLON

95717-08300-00

1
Out of stock

9

WASHER, LOCK 1

8AC-23894-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-08020-00

1
Out of stock

11

ROD, STEERING RELAY

8AB-23821-00-00

—
Out of stock

12

JOINT, UNIVERSAL 1

86X-23841-00-00

1
Out of stock

13

JOINT, UNIVERSAL 3

87S-23847-01-00

1
Out of stock

14

NUT (3WP1)

95317-10700-00

1
Out of stock

15

NUT, HEXAGON (8A5)

90170-10186-00

1
Out of stock

16

ROD, TIE

8AB-23831-00-00

1
Out of stock

17

JOINT, UNIVERSAL 2

87S-23845-01-00

—
Out of stock

18

JOINT, UNIVERSAL 3

87S-23847-01-00

1
Out of stock

19

NUT (3WP1)

95317-10700-00

1
Out of stock

20

NUT, HEXAGON (8A5)

90170-10186-00

1
Out of stock

21

NUT, NYLON

95707-10300-00

—
Out of stock

22

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

23

PIN, COTTER

91490-25020-00

—
Out of stock

24

BOLT, WITH HOLE

90102-10031-00

—
Out of stock

25

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

26

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock

27

ARM, IDLER

8AB-23826-00-00

1
Out of stock

28

NUT, NYLON

95717-12300-00

—
Out of stock

29

PIN, COTTER

91490-30030-00

—
Out of stock

30

WASHER, PLATE (4N0)

90201-126A7-00

—
Out of stock

31

BUSH, BIMETAL FORMED

90384-20231-00

1
Out of stock
